February 2013
4-129
ColorQube® 9303 Family
REP 12.4-171
Repairs/Adjustments
REP 12.4-171 Bin 1 Removal
Parts List on PL 12.105.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove Bin 1. Figure 1

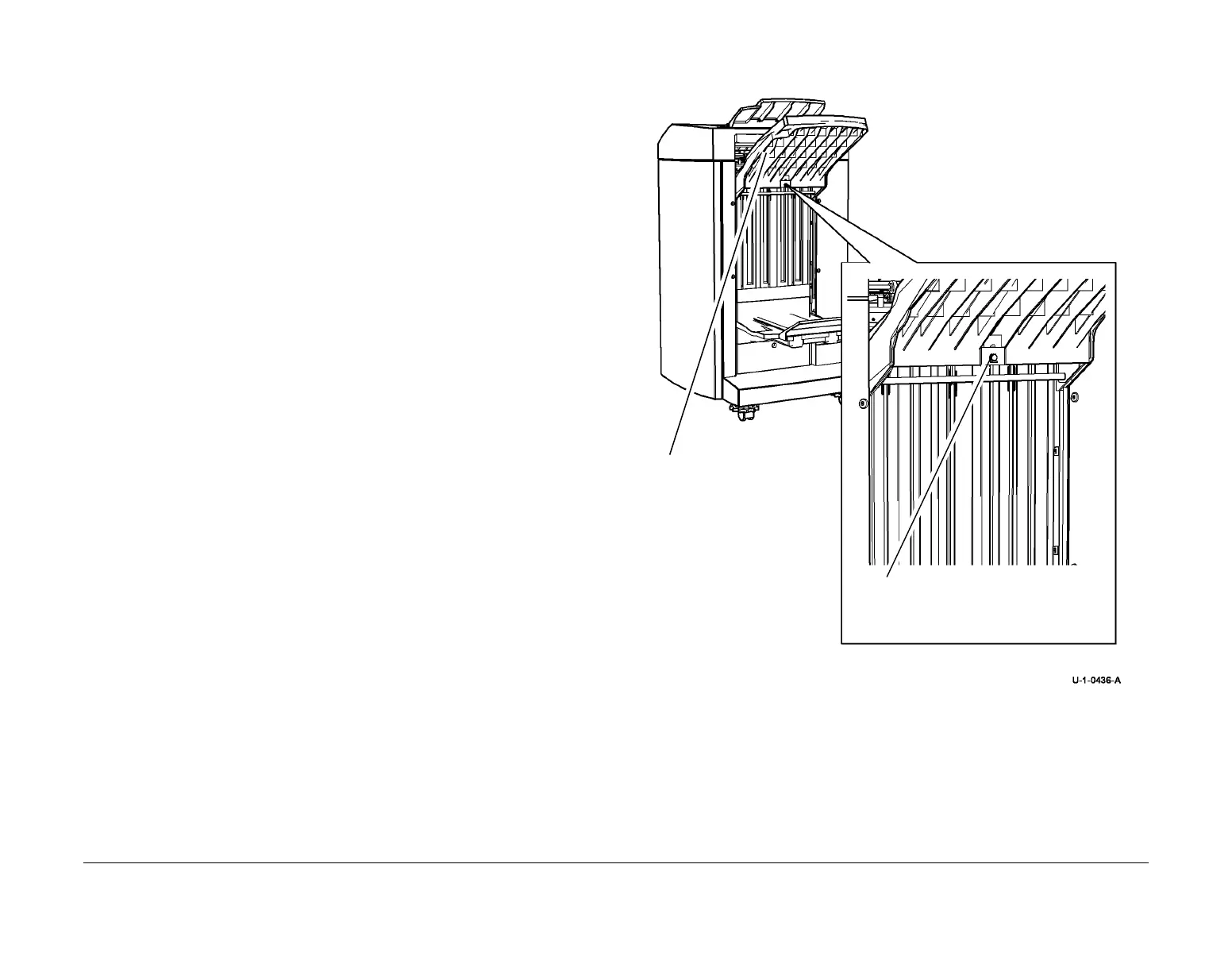

Figure 1 Bin 1 removal
Replacement
The replacement procedure is the reverse of the removal procedure.
1
Remove the E-clip.
2
Lift bin 1 to release the
bin from the lifting bar.
