February 2013
5-104
ColorQube® 9303 Family
PL 94.15
Parts Lists

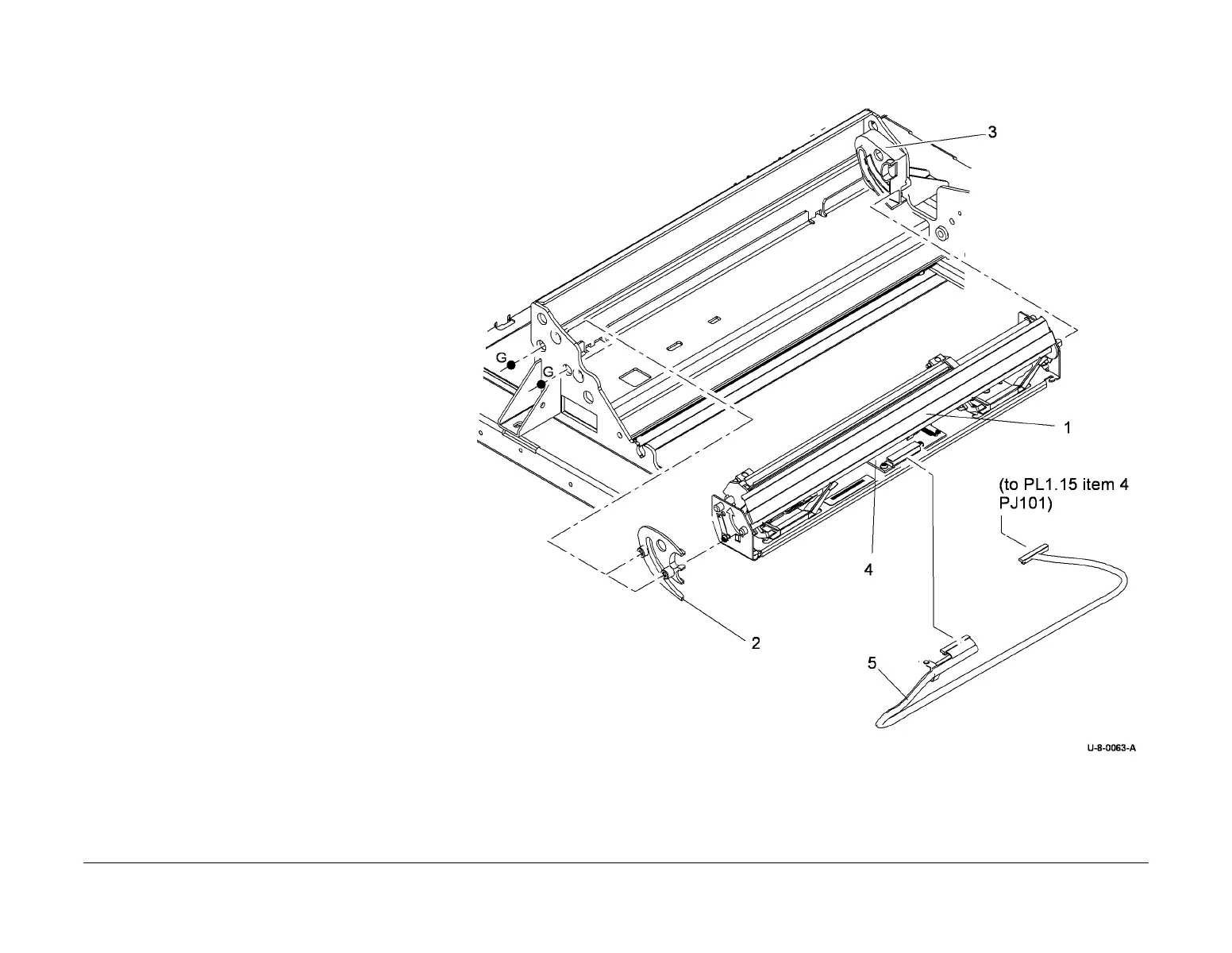

PL 94.15 IOD Assembly
Item Part Description
1 020K20580 IOD assembly (REP 91.22)
2 032E35160 Front guide track (REP 91.23)
3 032E35170 Rear guide track (REP 91.23)
4 – IOD Pre-amplifier PWB (P/O PL
94.15 Item 1)
5 117E35570 IOD to drum driver PWB cable
