February 2013
5-95
ColorQube® 9303 Family
PL 88.11
Parts Lists

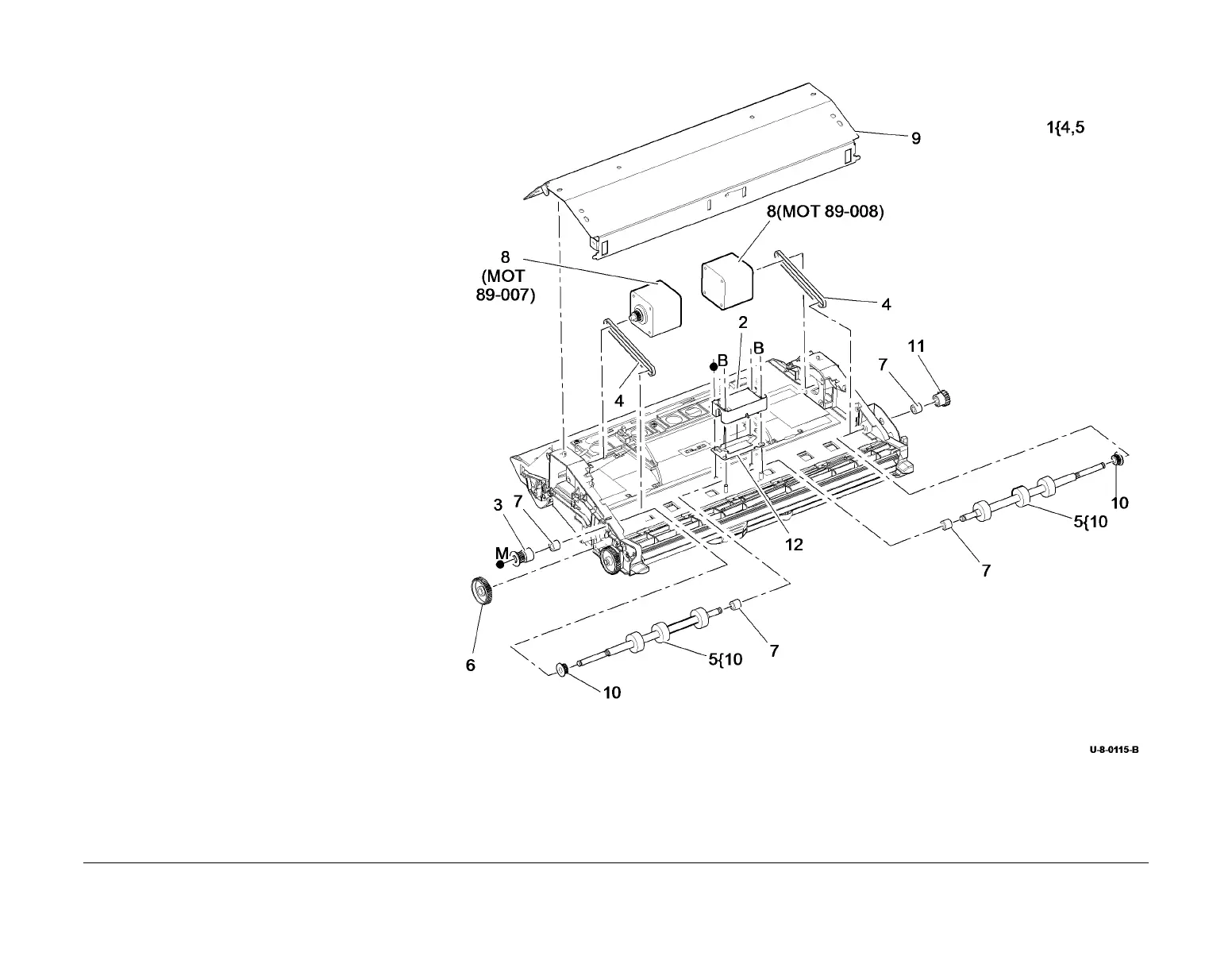

PL 88.11 Registration/Preheat
Assembly (2 of 2)
Item Part Description
1 – Nip 'A' replacement kit (REF: PL
31.11 Item 19) (REP 89.3)
2 – Bearing cover (Not spared)
3 – Front drive gear (Not spared)
4 – Drive belt (P/O PL 88.11 Item 1)
5 – Nip 'A' roller (P/O PL 88.11 Item 1)
6 – Compound gear (Not spared)
7 – Bearing (Not spared)
8 – Registration motor A1 (M3)(MOT
89-007)/Registration motor
A2(M3)(MOT 89-008) (Not spared)
9 – Cover (Not spared)
10 – Nip 'A' pulley (P/O PL 88.11 Item 5)
11 – One way gear (Not spared)
12 – Nip 'A' ground plate (Not spared)
