February 2013
3-103
ColorQube® 9303 Family
TP 24
Image Quality
TP 24 Registration Calibration Page
This print is generated by dC625 to calibrate the registration/preheat assembly. Calibration
procedure requires A4 or 8.5 x 11 inch media.
NOTE: All test prints should be printed on A4 or 8.5 x 11 inch plain paper and long edge feed.
Use the best quality media available. Do not use hole punched paper.
The registration calibration page is printed from dC625.
Purpose
Figure 1, serves as a target image for calibration of the registration/preheat assembly. Ten
sheets are printed for each of the three stances of the registration/preheat assembly. The
images are fed back through the duplex path and scanned by the registration sensor. Values
for process, cross-process, and skew are calculated and stored in NVM.
To solve image quality problems related to registration calibration, refer to IQ 8 Cross Process
Ink Artifacts (Smudge) RAP and IQ 10 Incorrect Margin, Misregistration or Skew RAP.

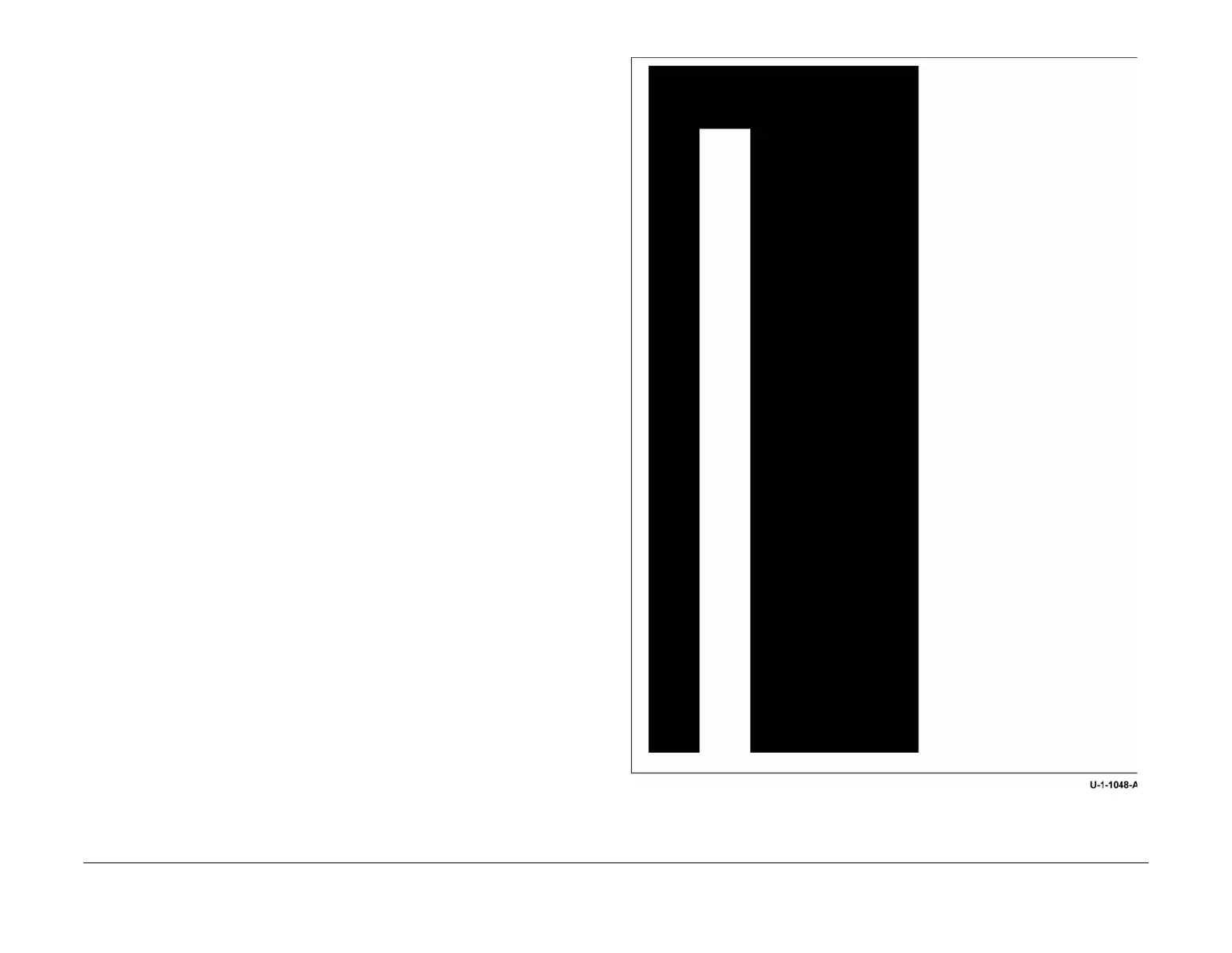

Figure 1 Registration calibration page
