February 2013
4-128
ColorQube® 9303 Family
REP 12.3-171
Repairs/Adjustments
REP 12.3-171 Top Tray
Parts List on PL 12.100.
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. If fitted, undock the Inserter, REP 12.82-171.
2. Remove the top and rear covers REP 12.1-171.
3. Prepare to remove the top tray, Figure 1.

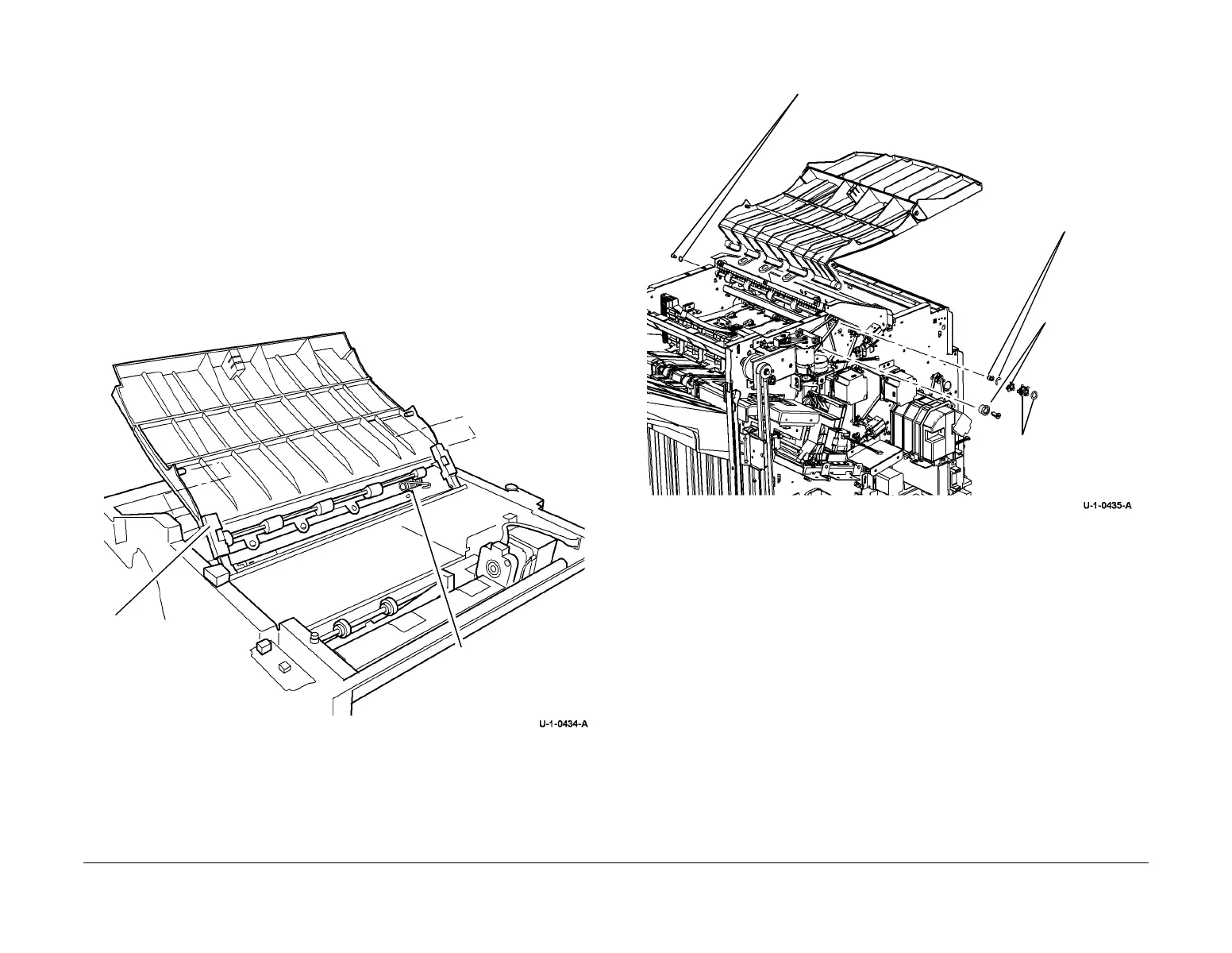

Figure 1 Preparation
4. Remove the top tray, Figure 2.
Figure 2 Top tray removal
Replacement
The replacement procedure is the reverse of the removal procedure.
1
Lift the tray and release
the link eyes from the
lugs on the tray.
2
Remove the pin
and spring.
1
Remove the E-clip
and outer pulley.
2
Remove the
inner belt idler
puller and inne
pulley.
5
Remove top
the tray.
3
Remove the
E-clip and
bearing.
4
Remove the E-
clip and bearing.
To Next Page
