February 2013
5-13
ColorQube® 9303 Family
PL 10.10
Parts Lists

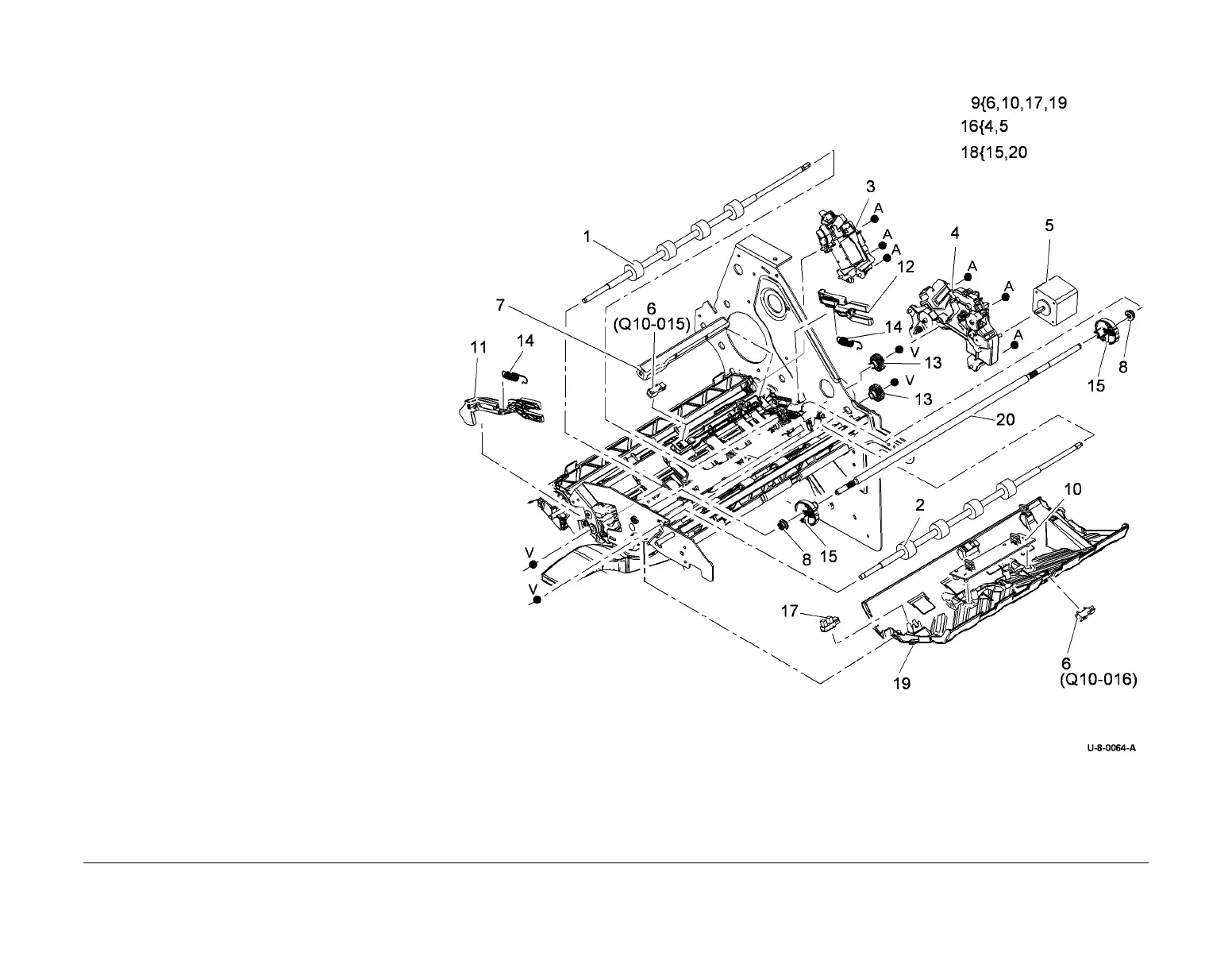

PL 10.10 Stripper System (1 of 2)
Item Part Description
1 059E10700 Roller drive 'J' (REP 10.10)
2 059E10890 Roller drive 'L' (REP 10.11)
3 121K50591 Stripper solenoid assembly
(SOL10-021) (REP 10.9)
4 – Gearbox (P/O PL 10.10 Item 16)
(REP 10.8)
5 – Post transfix motor (M4) (MOT10-
018) (P/O PL 10.10 Item 16) (REP
10.8)
6 130E12950 Post transfix sensor (11) (Q10-
015)/Pre exit sensor (12) (Q10-016)
7 – Sensor cover (Not spared)
8 – Bushing roller (Not spared)
9 055K43331 Upper baffle assembly (See NOTE)
(REP 10.22)
10 – Stripper jam clearance LED
assembly (P/O PL 10.10 Item 9)
11 803E13460 Front latchfork
12 803E13451 Back latchfork
13 807E29000 Gear drive (25T Symetric)
14 809E34520 Return spring
15 – Stripper latch cam (P/O PL 10.10
Item 18)
16 007K19810 Motor drive and gearbox assembly
(REP 10.8)
17 130E12940 Stripper latch sensor (Q10-014)
18 006K32500 Stripper guide latch cam shaft
assembly (REP 10.23)
19 – Upper baffle (P/O PL 10.10 Item 9)
20 – Camshaft (P/O PL 10.10 Item 18)
NOTE: HFSI. This component must be cleaned at regular
intervals, refer to SCP 4 subsystem maintenance. To reset
the HFSI count, go to dC135.
