February 2013
5-88
ColorQube® 9303 Family
PL 81.35
Parts Lists

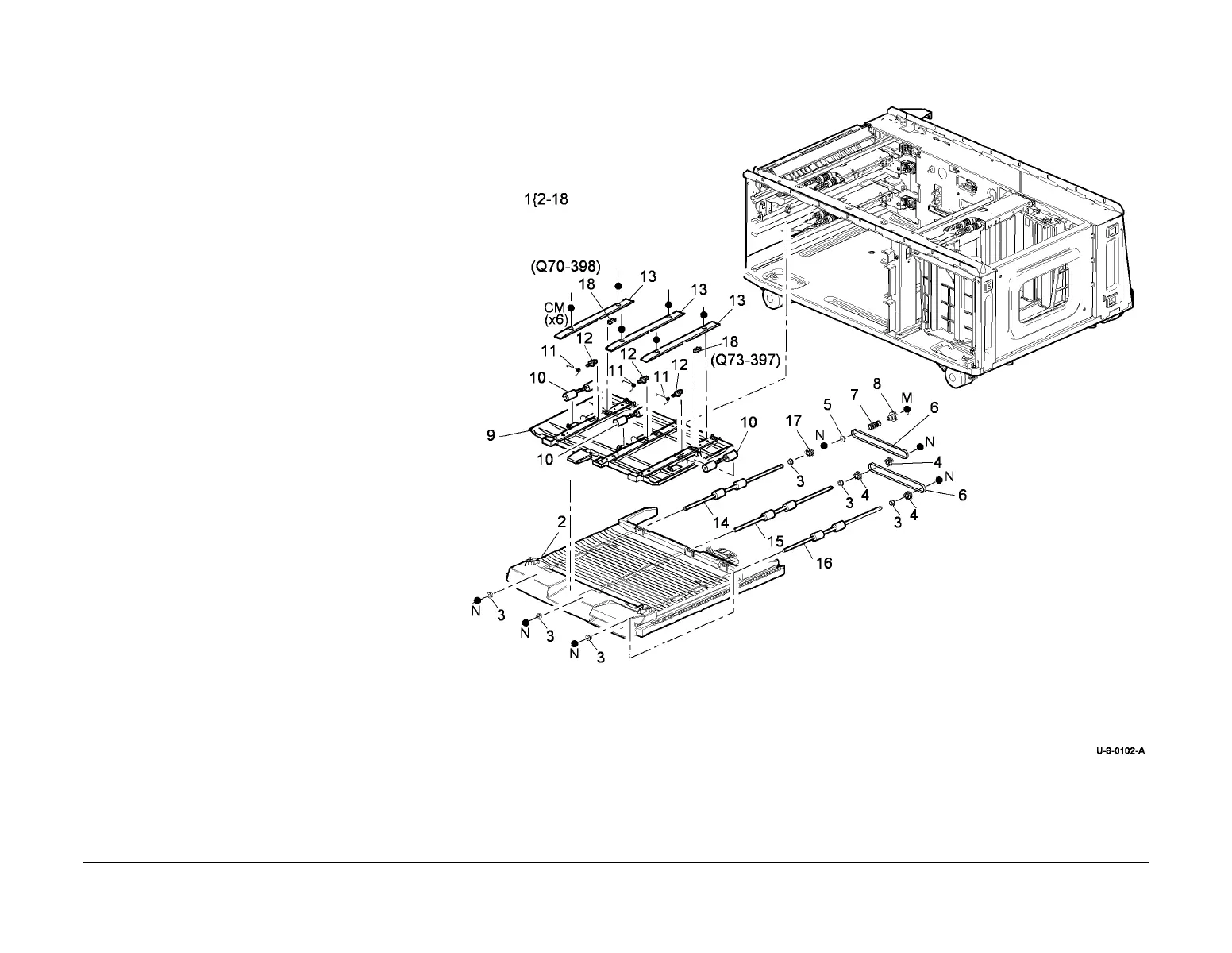

PL 81.35 3 Tray Module Transport
Assembly
Item Part Description
1 059K50816 Horizontal transport assembly
(REP 82.3)
2 Horizontal transport base (P/O PL
81.35 Item 1)
3 Bearing (P/O PL 73.16 Item 13)
4 Pulley (P/O PL 73.16 Item 13)
5 Sleeve spring location (P/O PL
73.16 Item 13)
6 Drive belt (P/O PL 73.16 Item 13)
7 Spring (P/O PL 73.16 Item 13)
8 Coupling (P/O PL 73.16 Item 13)
9 Horizontal transport lid (P/O PL
81.35 Item 1)
10 Idler roll (P/O PL 81.35 Item 1)
11 Spring (P/O PL 81.35 Item 1)
12 Clip (P/O PL 81.35 Item 1)
13 Cover (P/O PL 81.35 Item 1)
14 Transport roll 1 (P/O PL 81.35 Item
1) (REP 82.4)
15 Transport roll 2 (P/O PL 81.35 Item
1) (REP 82.4)
16 806E19670 Transport roll 3 (REP 82.4)
17 Pulley DD (P/O PL 81.35 Item 1)
18 130E11610 Tray 3 transport sensor (2)(Q70-
398)/TAR 3 sensor (Q73-397)
