February 2013
4-295
ColorQube® 9303 Family
REP 81.8
Repairs/Adjustments
REP 81.8 Tray 1 or Tray 2 Feed Sensor
Parts List on PL 81.25, PL 81.26
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the Tray 1 or tray 2 paper feed assembly REP 81.1,
2. Un-clip and release the guide, Figure 1.

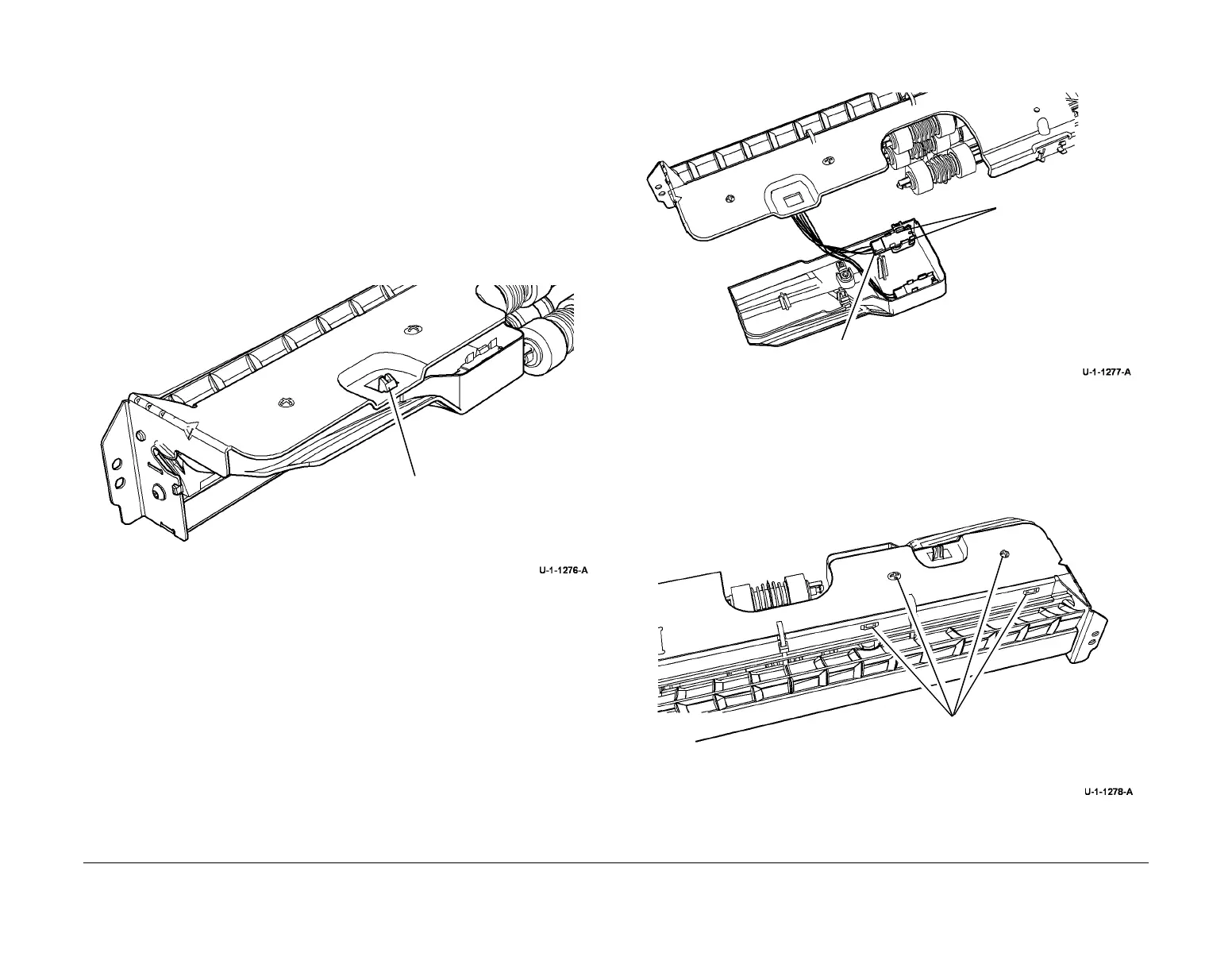

Figure 1 Paper guide
3. Remove tray 1 or tray 2 feed sensor, Figure 2.
Figure 2 Remove the feed sensor
Replacement
1. Replacement is the reverse of the removal procedure.
2. Ensure that the guide is located correctly on the feeder assembly, Figure 3.
Figure 3 Locate the guide
Press the clip to release the
guide
2
Release the clips and
remove the sensor
1
Disconnect harness
Ensure that the location lugs
on the guide are positioned
correctly
