February 2013
5-77
ColorQube® 9303 Family
PL 74.11
Parts Lists

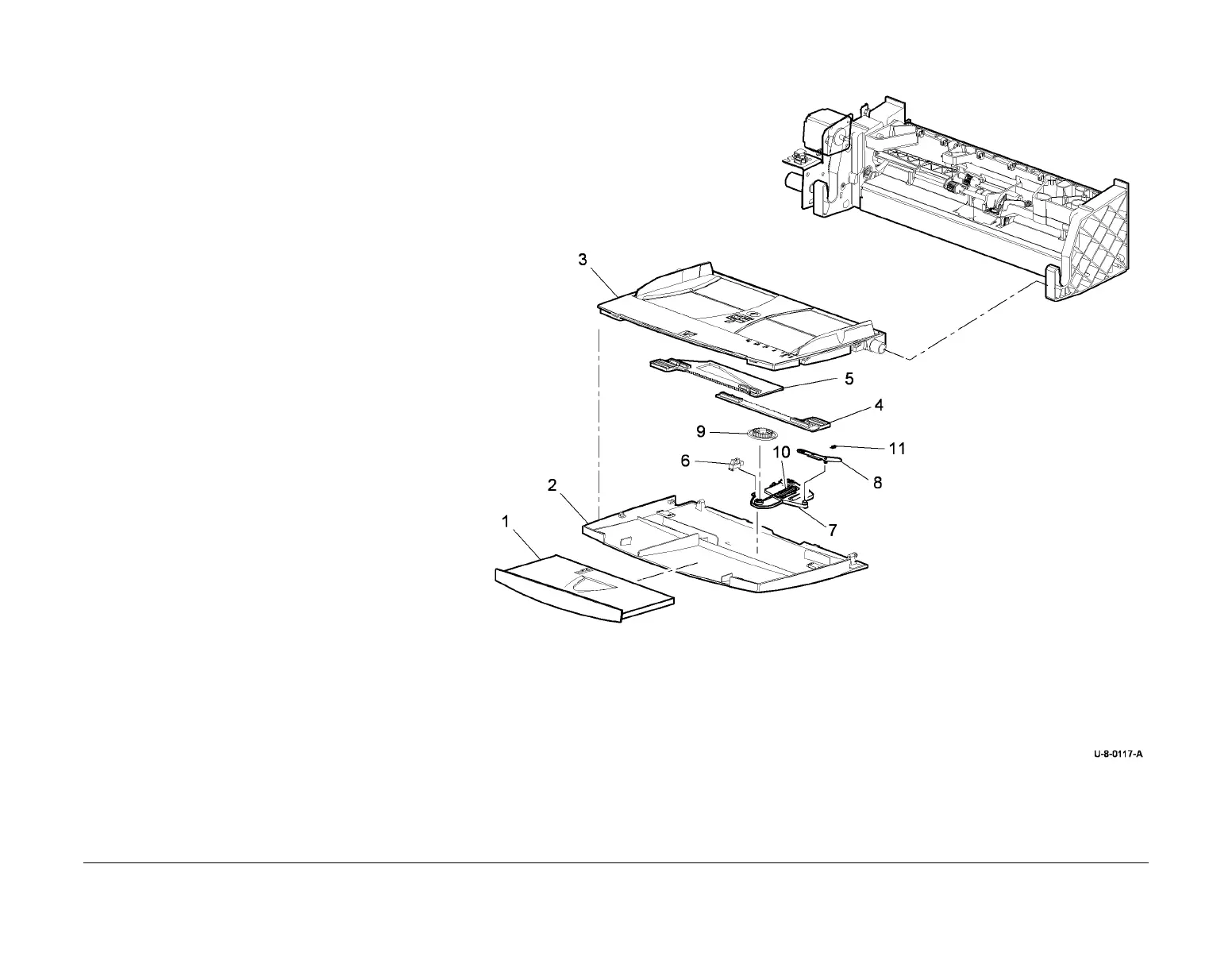

PL 74.11 Bypass Module (Tray 4) (2 of
2)
Item Part Description
1 – Tray extension (P/O PL 74.10 Item
1)
2 – Tray base (P/O PL 74.10 Item 1)
3 – Tray deck (P/O PL 74.10 Item 1)
4 – Rack front (P/O PL 74.10 Item 1)
5 – Rack rear (P/O PL 74.10 Item 1)
6 130E18220 Bypass width sensor (Q74-350)
7 – Mounting bracket (P/O PL 74.10
Item 1)
8 – Lever (P/O PL 74.10 Item 1)
9 – Gear (P/O PL 74.10 Item 1)
10 – Potentiometer (P/O PL 74.10 Item
1)
11 – Spring (P/O PL 74.10 Item 1)
