ColorQube® 9303 Family
PL 62.15
Parts Lists

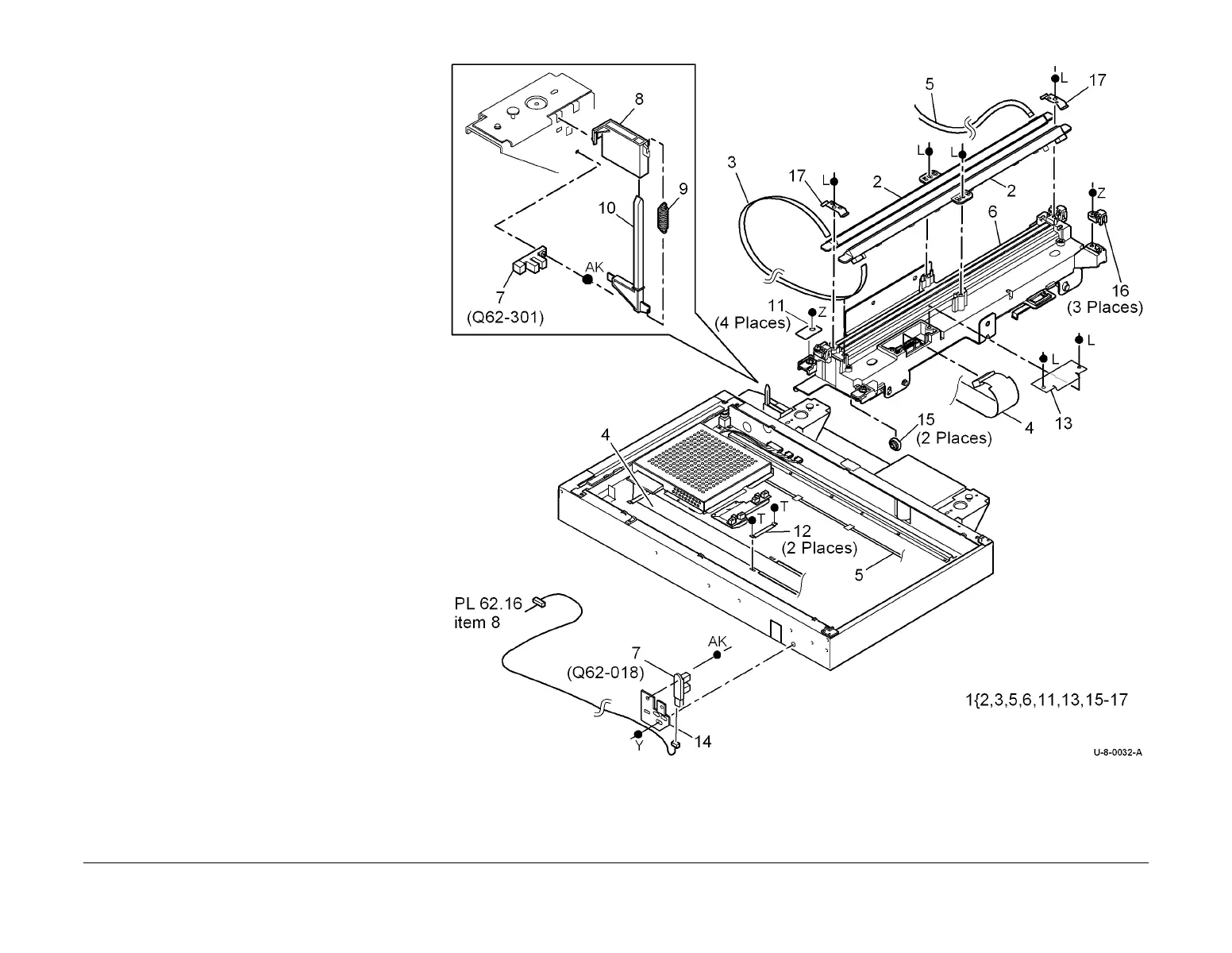

PL 62.15 Electrical Components (1 of
2)
Item Part Description
1 062K28310 Scan carriage assembly (REP 62.5,
ADJ 62.2)
2 122E03431 LED exposure lamp (REP 62.10)
3 – Inline ribbon harness (P/O PL 62.10
Item 1)
4 962K50450 Scan carriage ribbon cable (PJ928)
(REP 62.13)
5 962K26830 LED lamp ribbon harness (PJ926,
CN1) (REP 62.11)
6 – Scan carriage (P/O PL 62.15 Item
1)
7 130K75130 Carriage home sensor (Q62-018)
(REP 62.4), Angle sensor (Q62-
301)
8 – Actuator support (Not spared)
9 – Actuator spring (Not spared)
10 110K14010 Input module angle sensor actuator
(REP 62.9)
11 – Cable clamp (P/O PL 62.15 Item 1)
12 – Harness retainer (Not spared)
13 – Connector cover (P/O PL 62.15
Item 1)
14 – Sensor bracket (Not spared)
15 – Lower skid (P/O PL 62.15 Item 6)
(See NOTE)
16 – Upper skid (P/O PL 62.15 Item 6)
17 – Clip (Not spared)
NOTE: Refer to ADJ 62.1 for the optics cleaning procedure.
To Next Page
