February 2013
4-304
ColorQube® 9303 Family
REP 82.6
Repairs/Adjustments
REP 82.6 Tray 5 Transport Drive Belt
Parts List on PL 81.40
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the rear cover, REP 75.8.
2. Prepare to remove the drive belt, Figure 1.

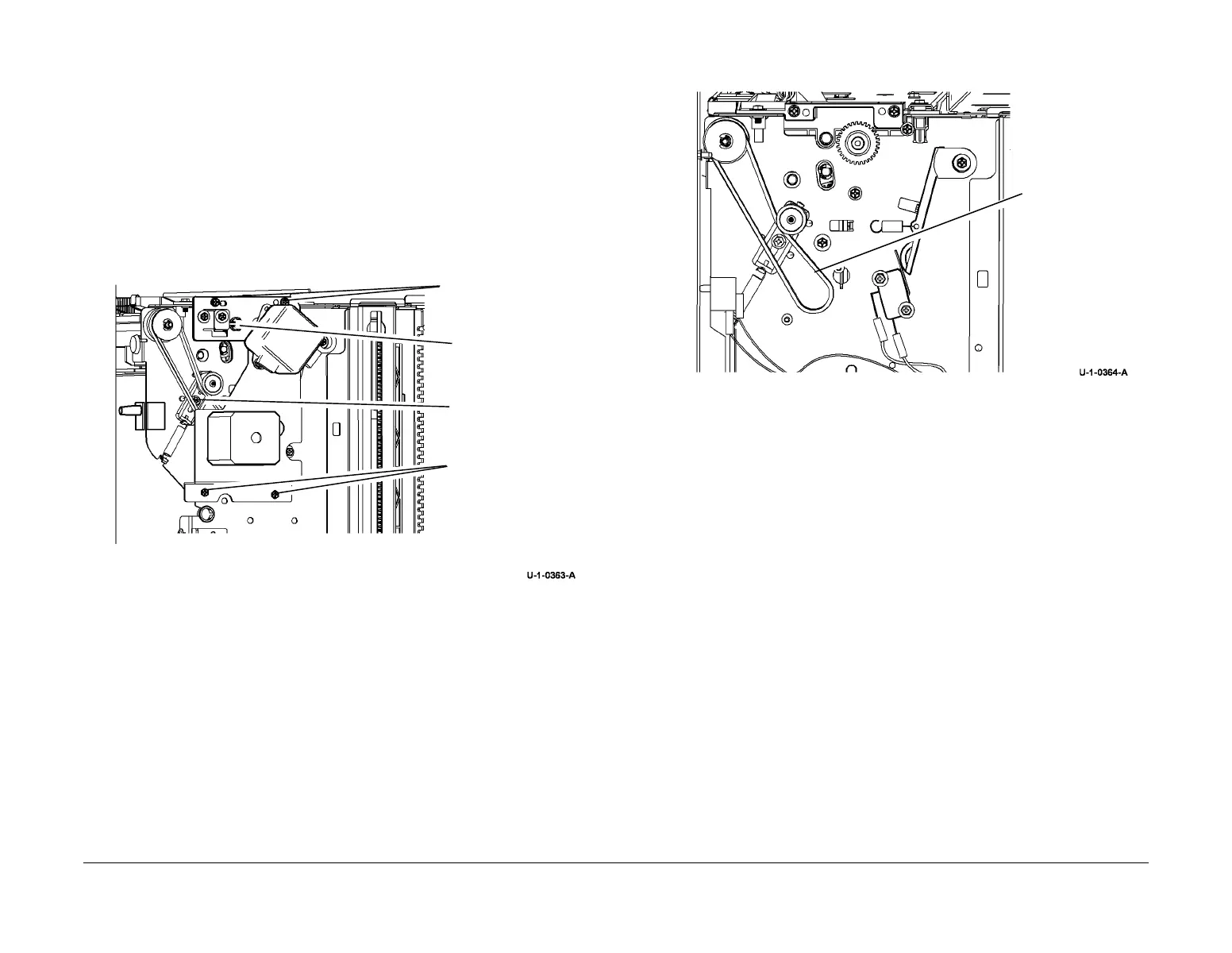

Figure 1 Preparation
3. Remove the transport drive belt, Figure 2.
Figure 2 Remove the drive belt
Replacement
1. Replacement is the reverse of the removal procedure.
2. Allow the tension idler to tension the belt and then tighten the screw, Figure 1.
1
Remove two screws
2
Remove E-clip
3
Loosen the screw to
release belt tensioner
4
Remove two screws
5
Release the motor assembly from the drive belt
1
Remove the drive
belt
