ColorQube® 9303 Family
REP 12.38-171
Repairs/Adjustments
REP 12.38-171 HVF Stacker Driving Belts
Parts List on PL 12.105.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
NOTE: The removal and replacement procedure for the front and rear stacker driving belts is
the same. Support the Bin 1 lift bar if removing the front and rear belts at the same time
1. Remove the front or rear cover to access the front or rear driving belt REP 12.1-171.
2. Remove the stacker bin 1 tray REP 12.4-171.
3. Remove the stacker driving belt, Figure 1.

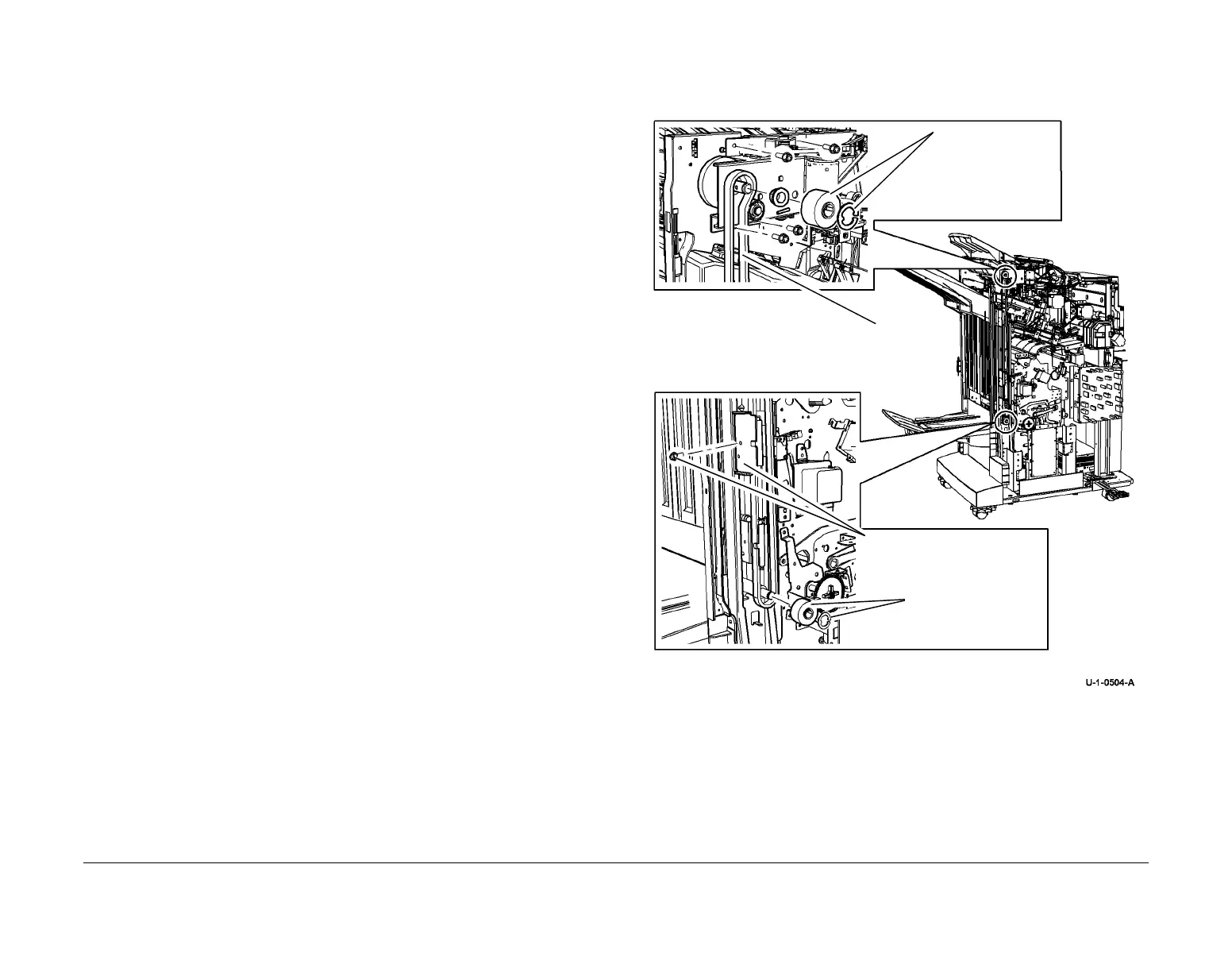

Figure 1 Stacker Driving Belts
Replacement
NOTE: Check that the bin 1 lift bar is level before fitting the belt clamp.
Reverse the removal procedures to reinstall the front and rear stacker driving belts.
1
Remove the screw
and belt clamp.
2
Remove the circlip and
lower pulley.
3
Remove the circlip
and upper pulley if
required.
4
Remove the
belt.
