Xerox ColorQube 9301

February 2013
5-38
ColorQube® 9303 Family
PL 12.130
Parts Lists

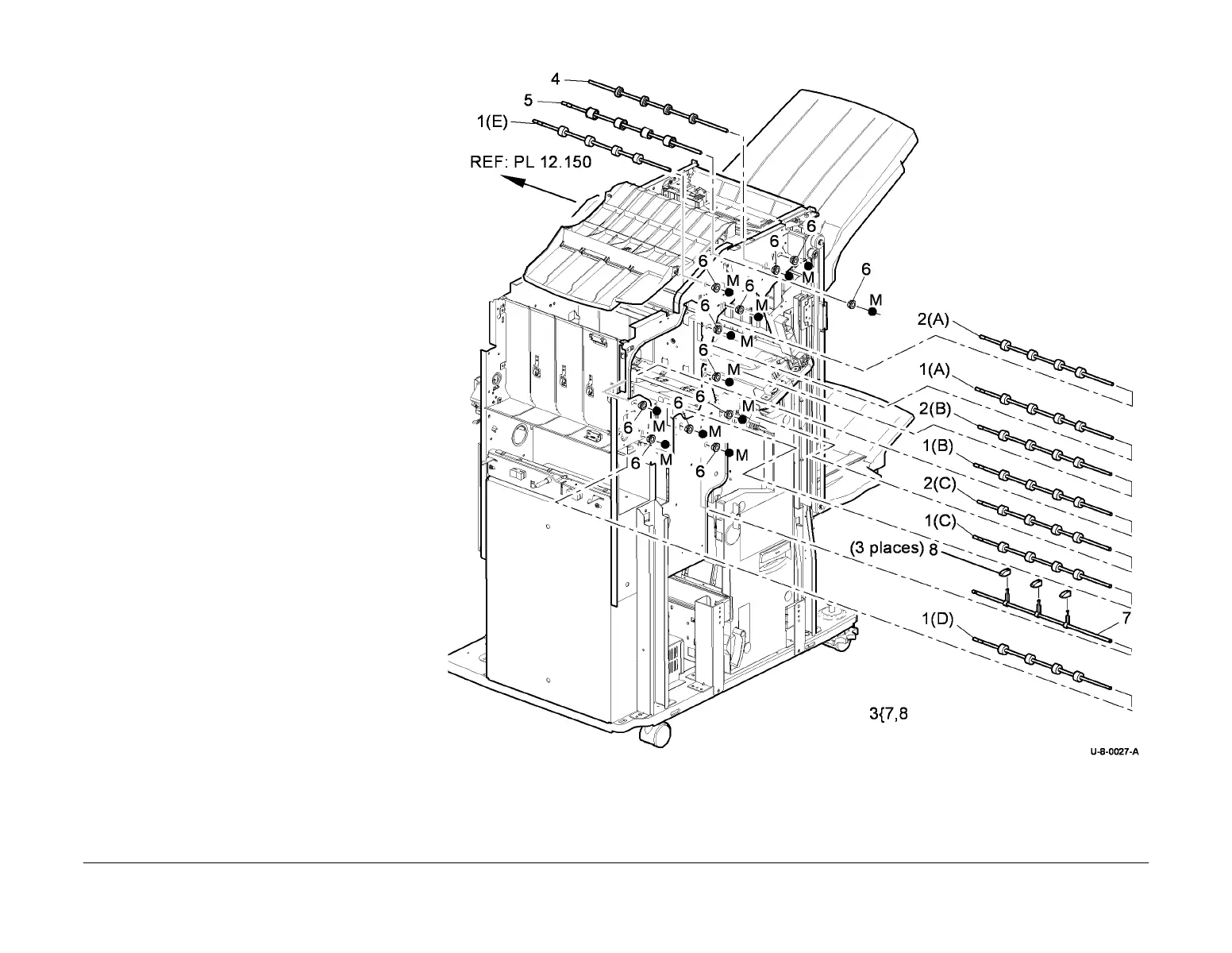

PL 12.130 HVF Feed Assembly and
Punch (2 of 3)
Item Part Description
1 006K32840 Feed roll assembly (Short shaft
type)
– – Buffer upper roll (1A) (REP 12.45-
171)
– – Inserter guide roll (1B) (REP 12.41-
171)
– – Buffer pocket roll (1C) (REP 12.42-
171)
– – Input roll (1D) (REP 12.40-171)
– – Top exit feed roll (1E) (REP 12.47-
171)
2 006K32850 Feed roll assembly
– – Stacker exit feed roll (2A) (REP
12.46-171)
– – Buffer lower roll (2B) (REP 12.44-
171)
– – Booklet entrance roll (2C) (REP
12.43-171)
3 019K13660 Buffer clamp assembly
4 006K32820 Stacker exit roll
5 006K32810 Top exit roll
6 013E25800 Copper bearing
7 – Buffer clamp shaft (P/O PL 12.130
Item 3)
8 019K14420 Buffer clamp
