February 2013
4-114
ColorQube® 9303 Family
REP 12.12-110
Repairs/Adjustments
REP 12.12-110 Paddle Wheel Shaft Assembly
Parts List on PL 12.25.
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the stapler traverse assembly, REP 12.8-110.
2. Remove the tamper assembly, REP 12.6-110.
3. Remove bin 1, PL 12.10 Item 10.
4. Figure 1, remove the paddle motor assembly.

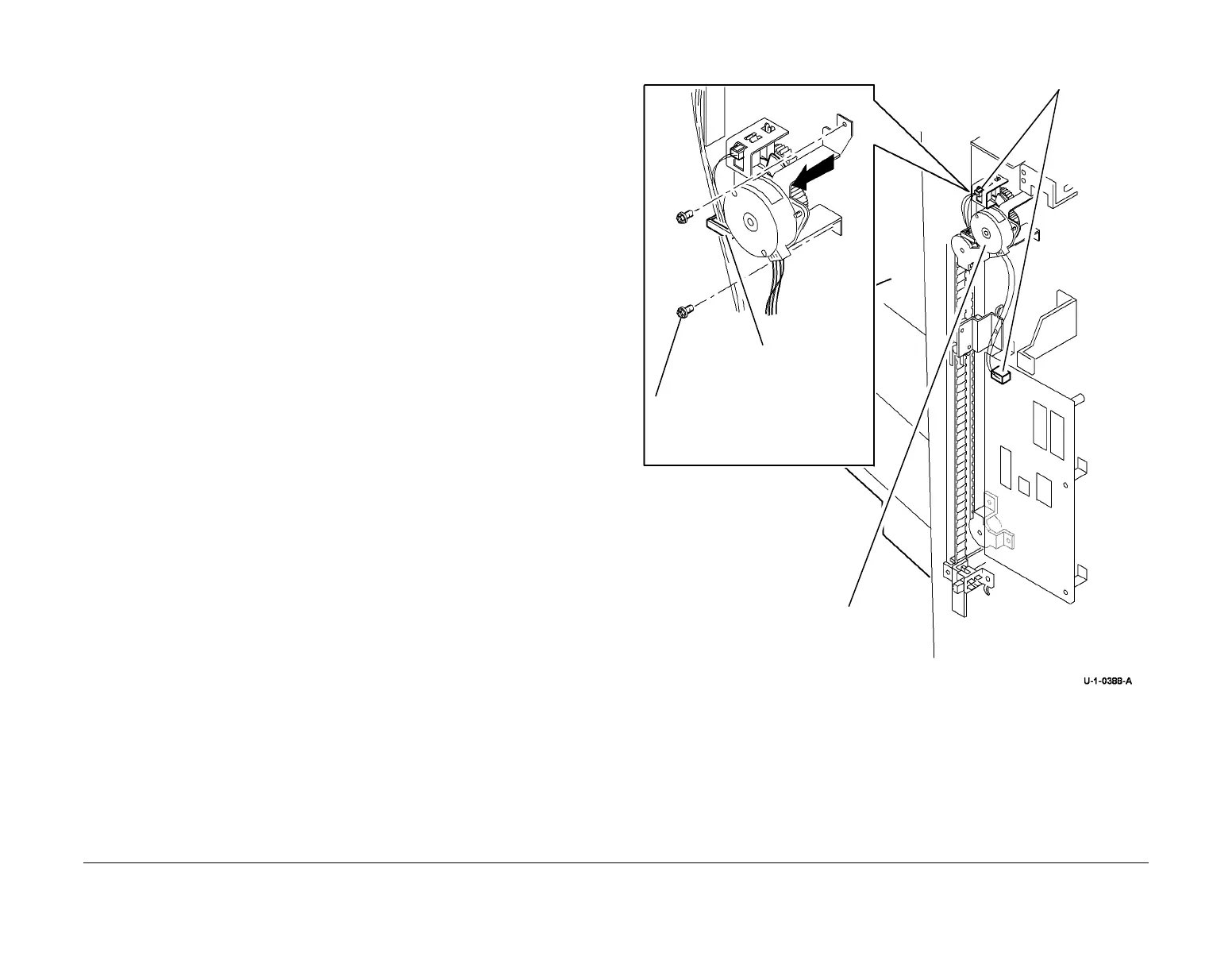

Figure 1 Paddle motor assembly
2
Release the
harness from
the retainer
Disconnect 2
harnesses
3
Remove 2
screws
4
Remove the
motor assembly
To Next Page
