February 2013
5-14
ColorQube® 9303 Family
PL 10.12
Parts Lists

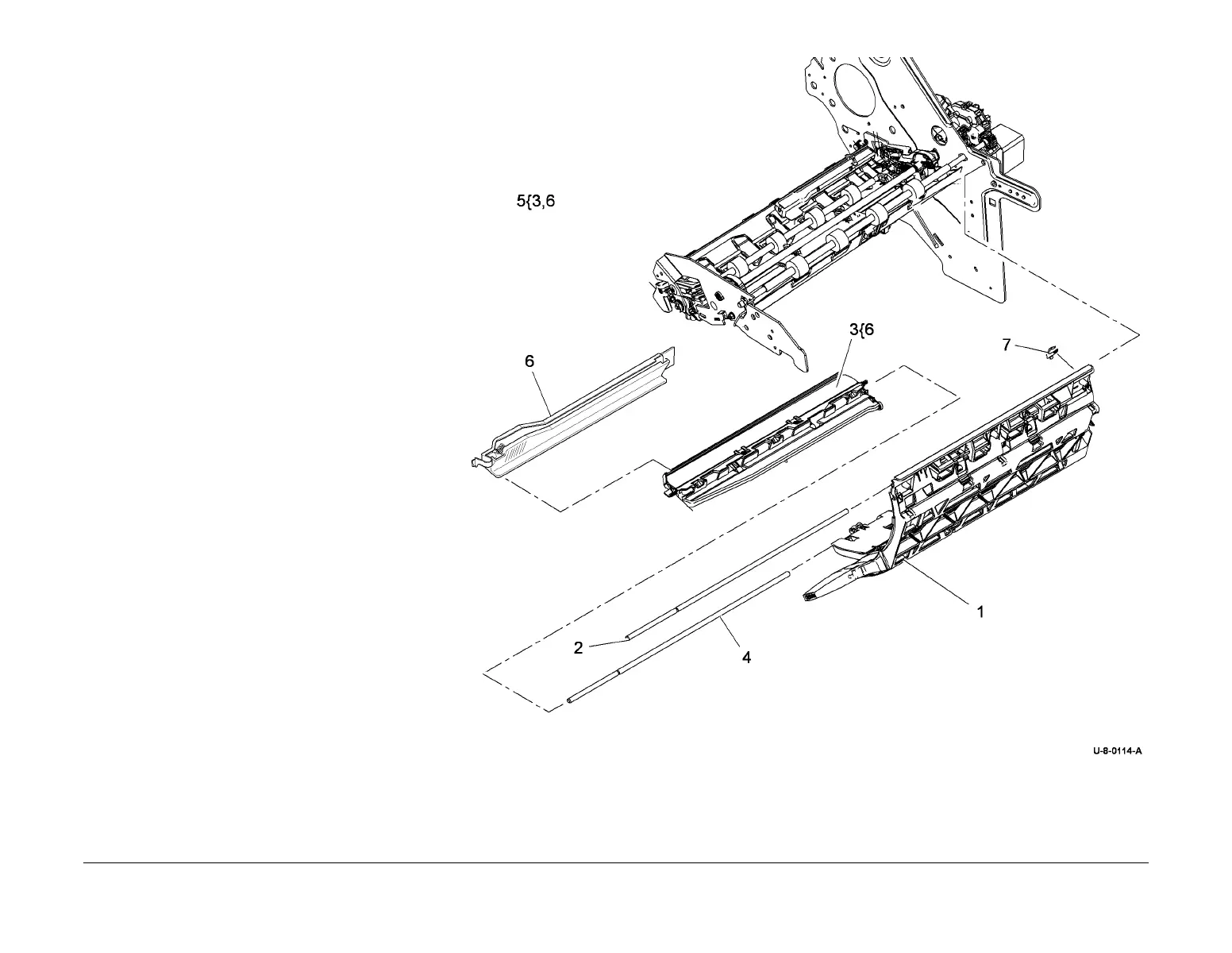

PL 10.12 Stripper System (2 of 2)
Item Part Description
1 055K43271 Stripper gate and baffle assembly
(REP 10.21)
2 – Gate and baffle shaft (Not spared)
3 – Stripper blade assembly (P/O PL
10.12 Item 5) (See NOTE) (REP
10.21)
4 – Stripper shaft (Not spared)
5 604K73430 Stripper blade kit
6 – Stripper blade retaining tool (P/O
PL 10.12 Item 5)
7 – Grounding strip (Not spared)
NOTE: Supplied with a stripper retaing tool, PL 10.12 Item 6.
