ColorQube® 9303 Family
REP 75.8, REP 75.9
Repairs/Adjustments
2. Remove the front or rear cover, Figure 2.

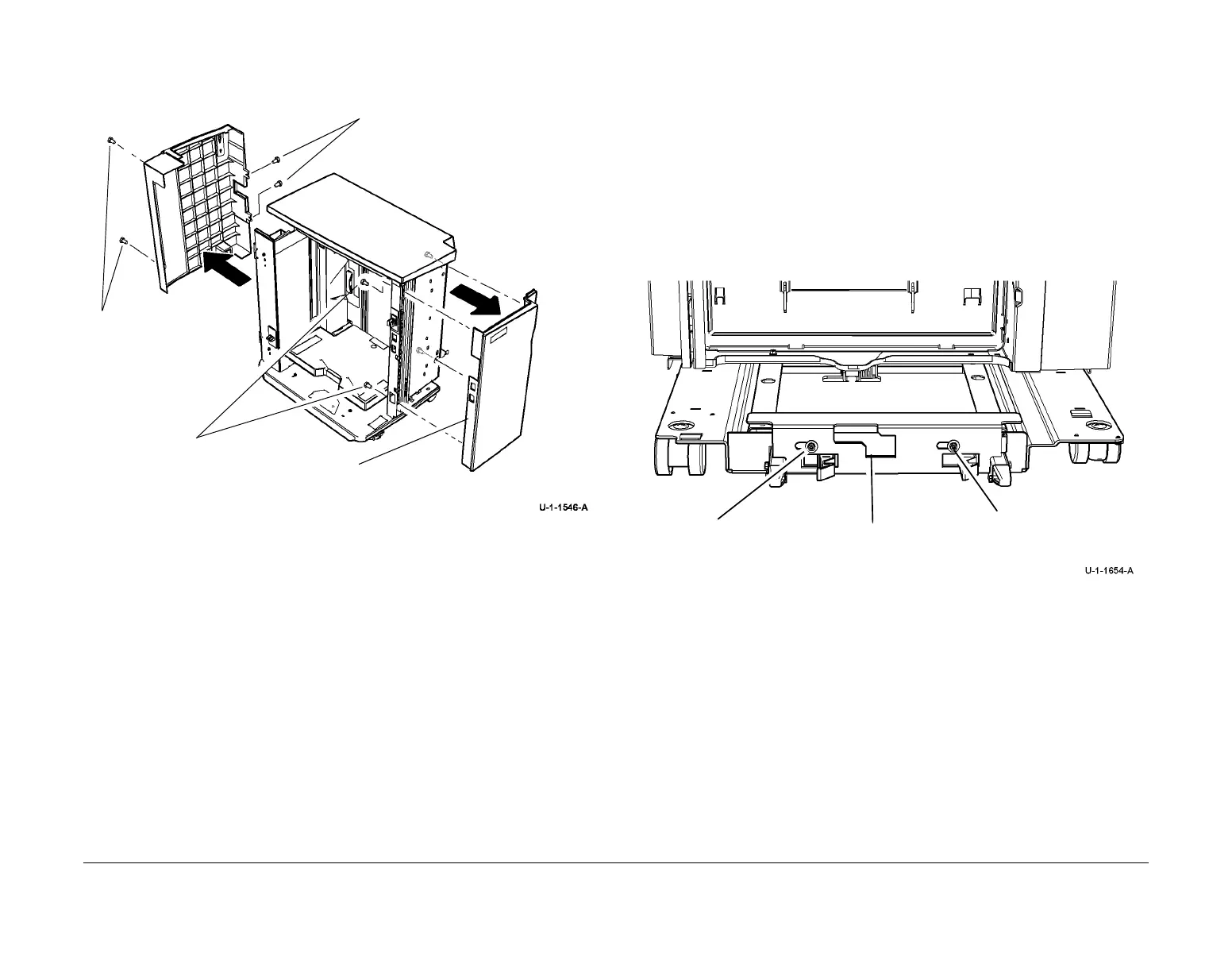

Figure 2 Front and rear cover
Replacement
1. The replacement is the reverse of the removal procedure.
2. Check that the top cover is located correctly, Figure 1.
REP 75.9 Tray 5 Docking Latch
Parts List on PL 75.62
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present can cause injury.
1. Remove the paper and un-dock the tray 5 module, REP 75.7.
2. Remove the two screws and unhook the spring, Figure 1.
Figure 1 Preparation
2
Loosen two screws and
remove the rear cover.
1
Remove two screws
1
Remove two screws at
the front and two at the
rear
2
Remove the front
cover
2
Unhook the spring
1
Remove screw
3
Remove screw
