February 2013
5-61
ColorQube® 9303 Family
PL 25.10
Parts Lists

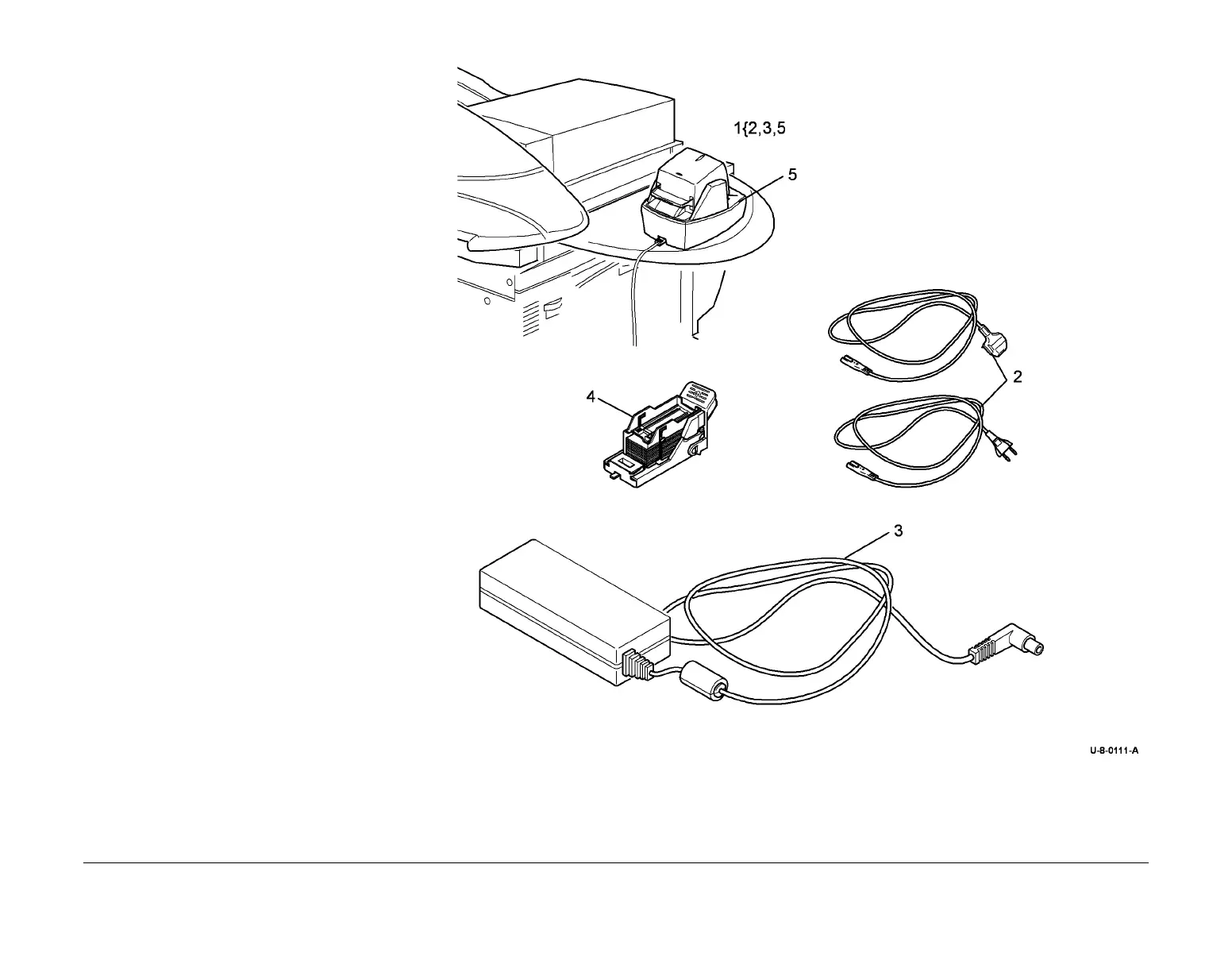

PL 25.10 Convenience Stapler
Item Part Description
1 – Convenience stapler kit (REF: PL
31.11 Item 3)
2 – Power cord (P/O PL 25.10 Item 1)
3 – PSU (P/O PL 25.10 Item 1)
4 – Staple cartridge (REF: PL 26.10
Item 16)
5 – Convenience stapler (P/O PL 25.10
Item 1) (XE)
NOTE: The convenience stapler has no serviceable parts.
