February 2013
5-17
ColorQube® 9303 Family
PL 12.00
Parts Lists

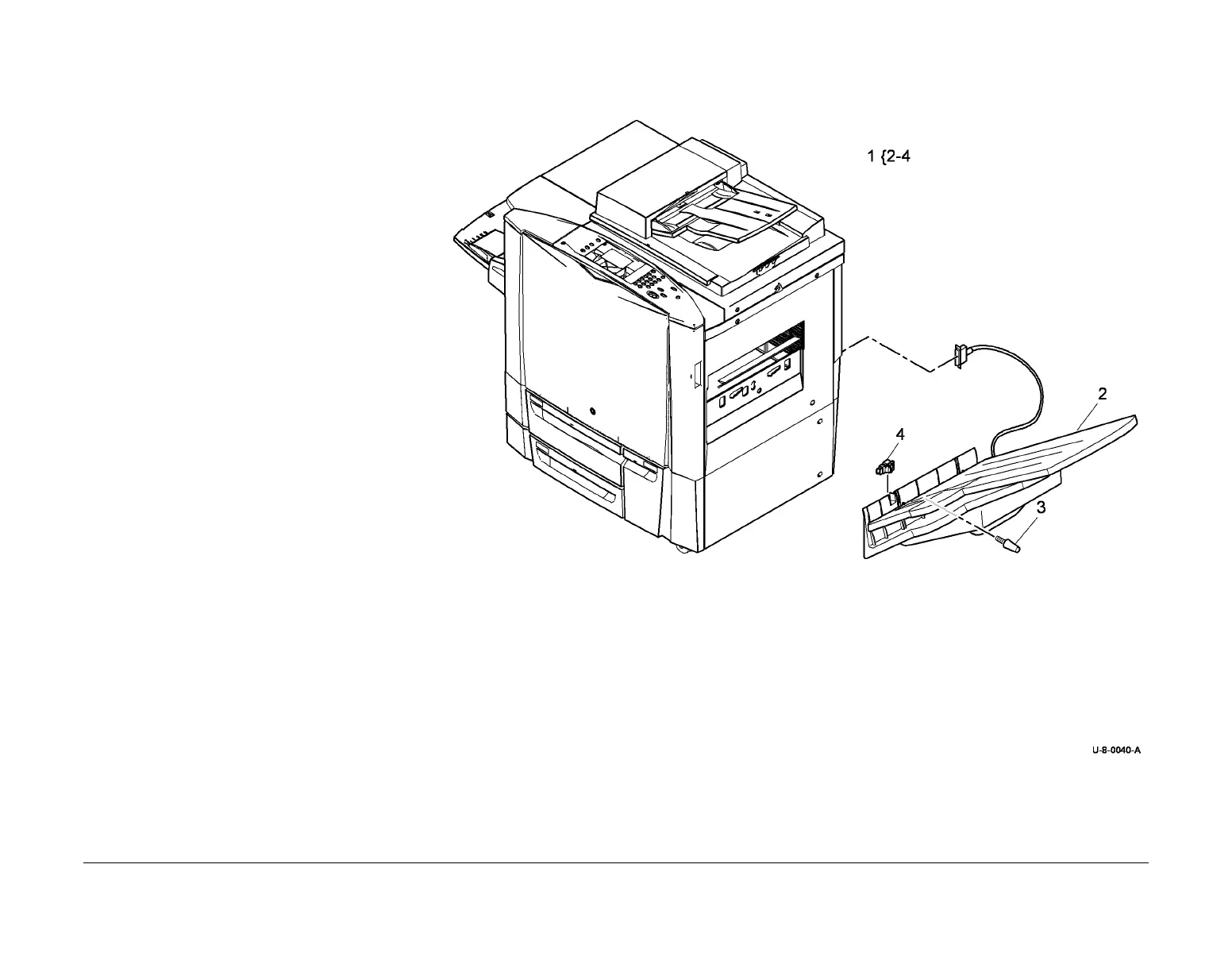

PL 12.00 OCT
Item Part Description
1 – OCT (complete) (P/O PL 31.11 Item
1)
2 – Tray (P/O PL 12.00 Item 1)
3 826E32840 Thumbscrew
4 130E81311 OCT 90% full sensor (Q12-211)
