Xerox ColorQube 9301

February 2013
5-28
ColorQube® 9303 Family
PL 12.60
Parts Lists

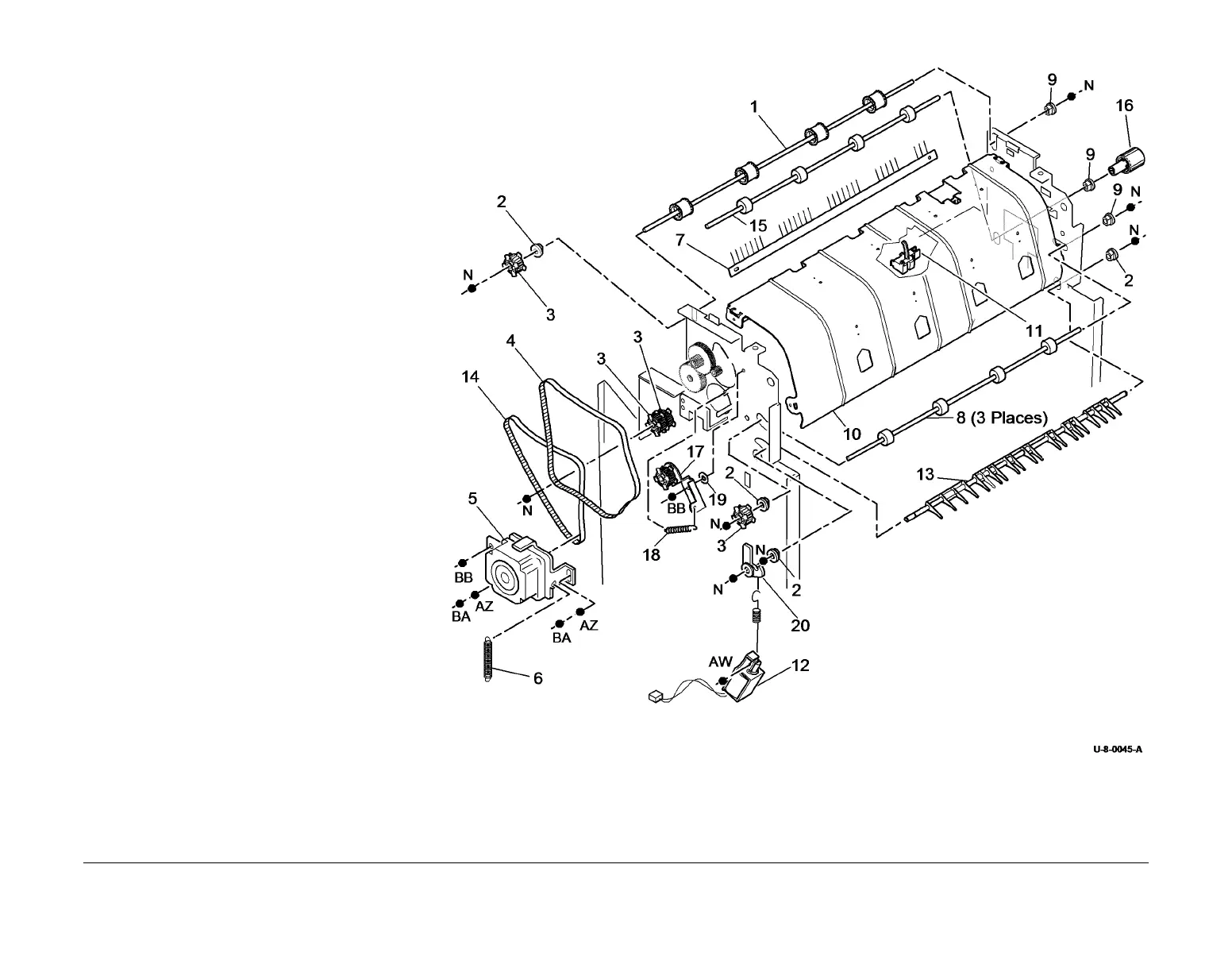

PL 12.60 LCSS Bin 0 Entry
Item Part Description
1 006K32810 Top tray exit shaft
2 013E25790 Nylon bearing
3 – Pulley (Not spared)
4 023E24330 Intermediate paper drive belt (REP
12.3-110)
5 127K55870 Transport motor 2 (MOT12-224)
(REP 12.4-110)
6 – Spring (Not spared)
7 115E13440 Static eliminator
8 – Feed roll shaft (short) (Not spared)
9 013E25800 Copper bearing
10 117K54510 Paper guide
11 130E11440 Top tray exit sensor (Q12-107)
12 121K45010 Exit diverter solenoid (SOL12-225)
13 – Shaft diverter assembly (P/O PL
31.11 Item 18)
14 023E24340 Paper output drive belt (REP 12.4-
110)
15 006K32840 Drive shaft assembly
16 006K33960 Drive shaft assembly knob
17 – Belt tensioner (Not spared)
18 – Spring (Not spared)
19 – Washer (Not spared)
20 – Actuator (Not spared)
