February 2013
4-10
ColorQube® 9303 Family
REP 1.4
Repairs/Adjustments
REP 1.4 AMP EI Connectors
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
NOTE: The male housings contain socket terminals, and the female housings contain pin ter-
minals.
1. Use the extractor tool, to release the terminal from the housing. Refer to Figure 1 to iden-
tify the male housing and terminal type. Refer to Figure 2 to identify the female housing
and the terminal type.

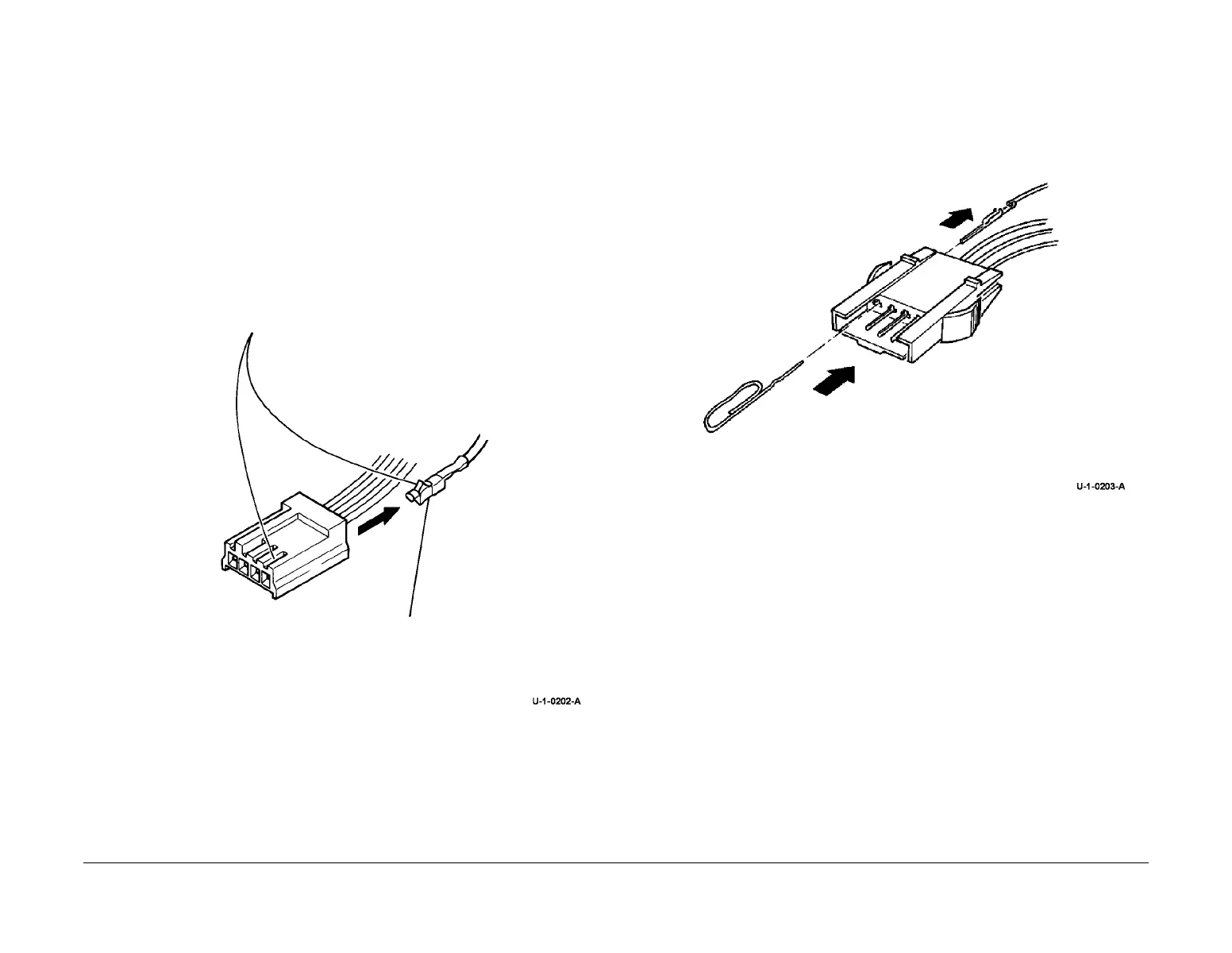

Figure 1 Terminal removal; male housing.
Figure 2 Terminal removal; female housing.
2. Cut off the damaged terminal, then strip 3 mm of insulation from the end of the wire.
1
Depress the prong with a small
flat head screw driver to release
the terminal
2
Remove the terminal
from the housing
2
Remove the terminal from the
housing
1
Insert a paper clip to
release the prong
To Next Page
