ColorQube® 9303 Family
REP 1.3
Repairs/Adjustments
4. Figure 3. Insert the crimped terminal into the appropriate position of the crimp tool and
close the crimp tool to firmly fasten the insulation of the wire in the cable grip of the termi
-
nal.

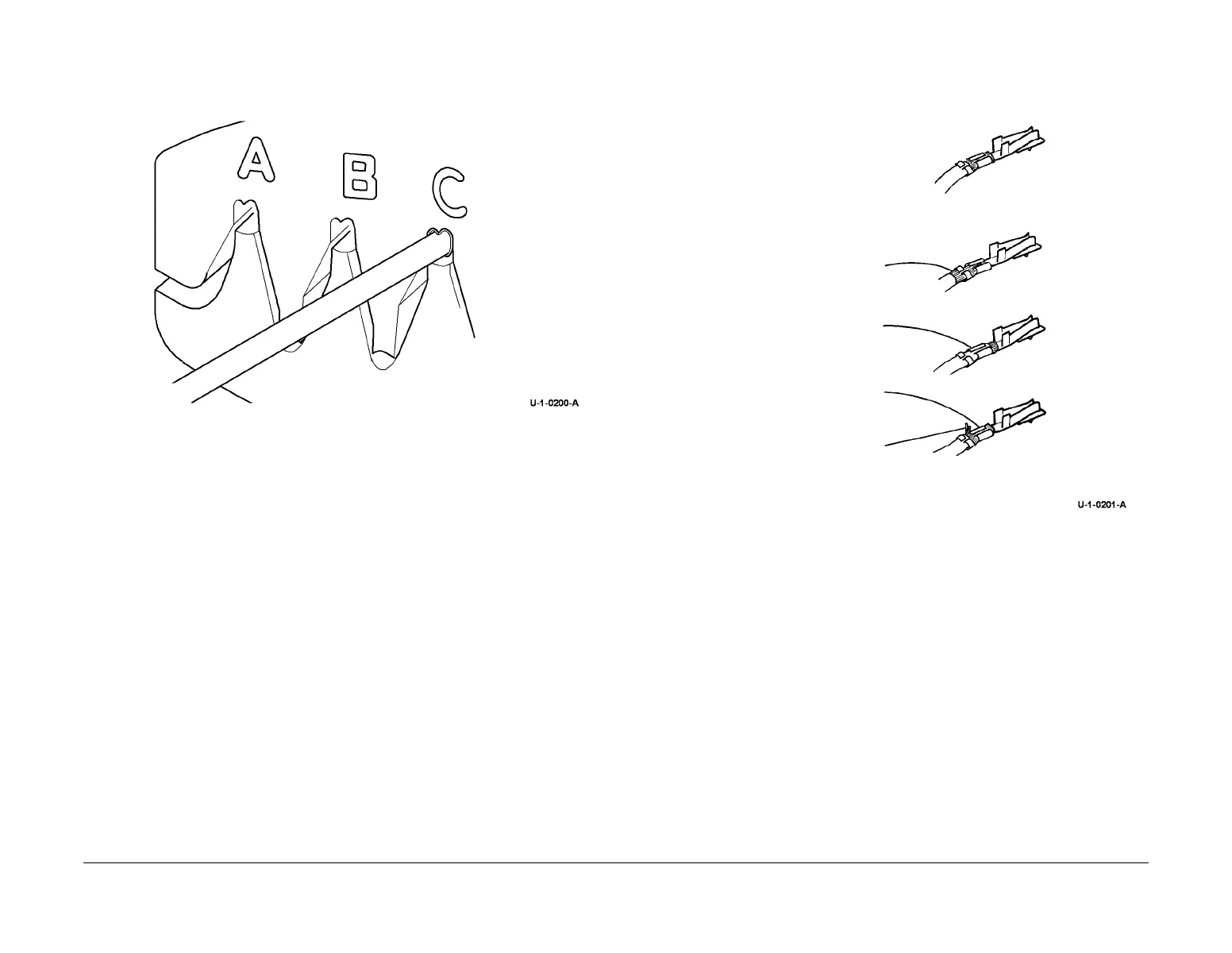

Figure 3 Crimping the insulation grip.
5. Figure 4. Check that the crimp is correctly made.
Figure 4 Inspecting the finished crimp.
6. Insert the replacement terminal into the connector housing.
Correct
Incorrect
Wire exposed
Insulation In the crimp
Loose strands of wire
crimp loose
