February 2013
5-19
ColorQube® 9303 Family
PL 12.15
Parts Lists

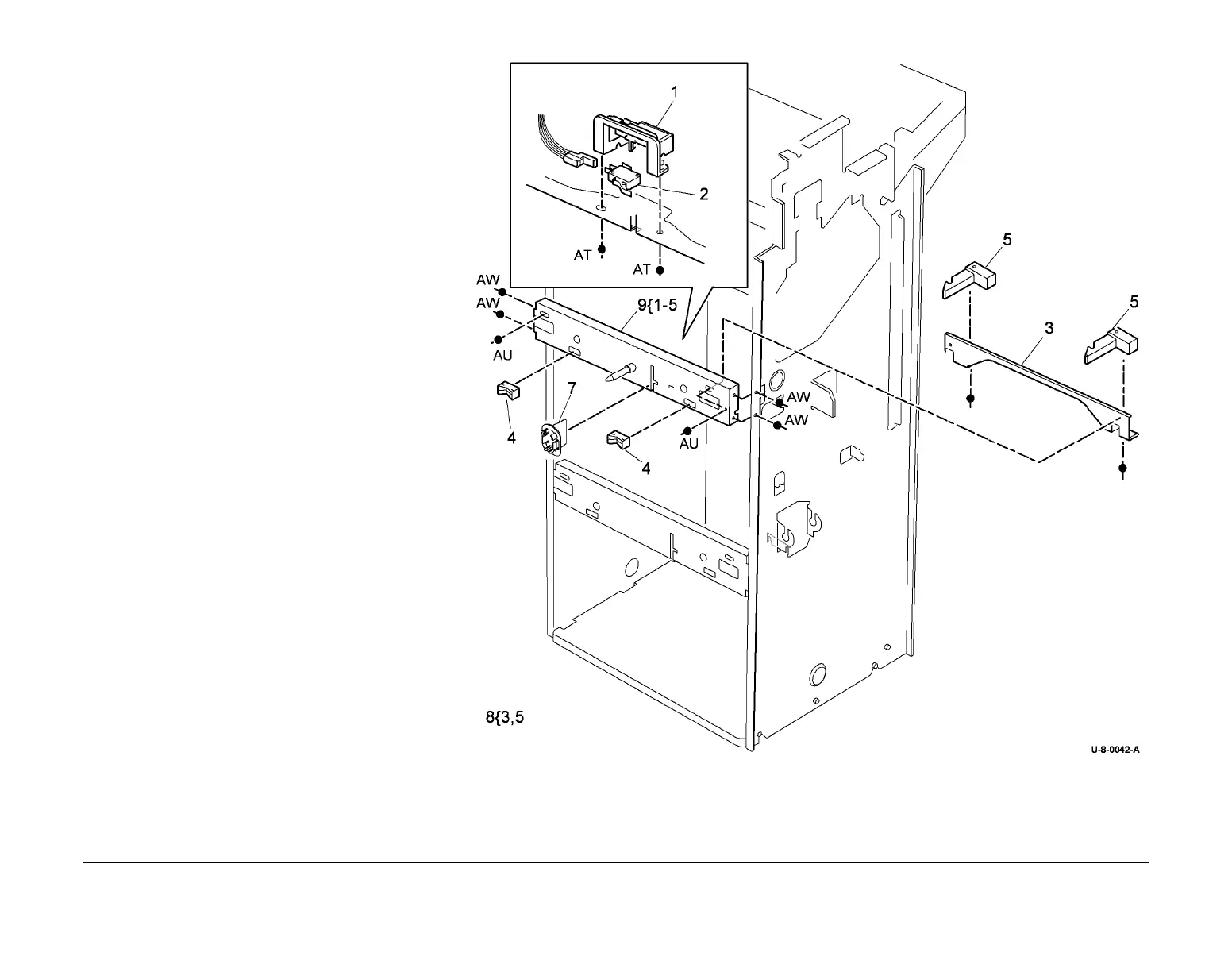

PL 12.15 LCSS Docking Latch
Item Part Description
1 – Sensor cover (P/O PL 12.15 Item 9)
2 110K13980 Docking interlock (S12-177) (See
NOTE)
3 – Link bracket assembly (P/O PL
12.15 Item 8)
4 – Stopper (P/O PL 12.15 Item 9)
5 – Docking latch (P/O PL 12.15 Item
8)
6 – Not used
7 120K03450 Docking actuator (See NOTE)
8 003K20930 Docking latch assembly (See
NOTE) (REP 12.16-110)
9 003K20940 Mounting stay assembly
NOTE: Also comes as part of mounting stay assembly PL
12.15 Item 9.
