February 2013
4-15
ColorQube® 9303 Family
REP 1.7
Repairs/Adjustments
2. Figure 3. Insert the terminal into the appropriate position of the crimp tool and close the
tool just enough to hold the terminal.

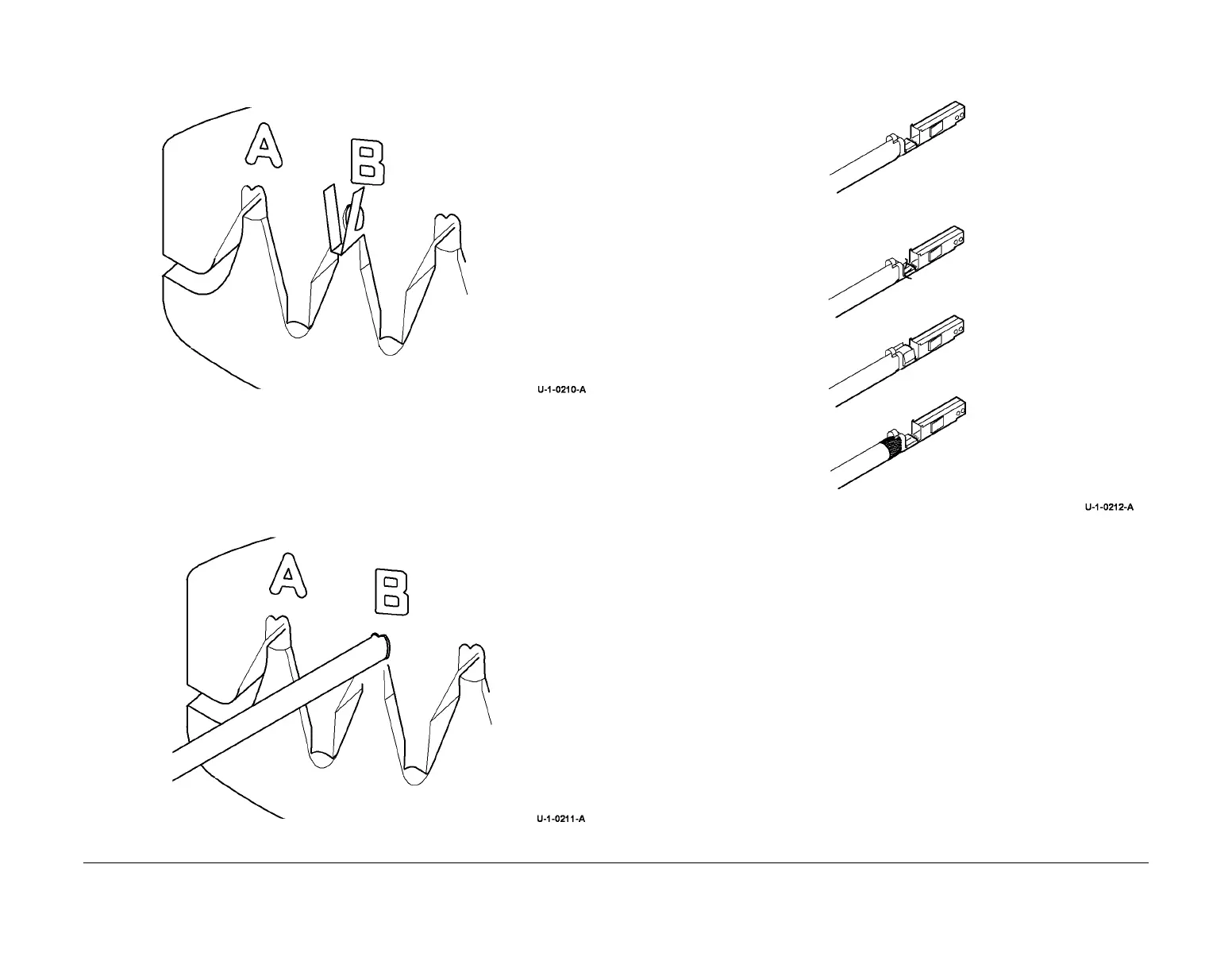

Figure 3 Crimping the terminal
3. Insert the wire fully into the terminal so that the stripped portion is within the inner grip of
the terminal. Close the crimp tool fully to make the crimp.
4. Figure 4. Insert the crimped terminal into the appropriate position of the crimp tool and
close the crimp tool to fasten the wire insulation in the outer grip of the terminal.
Figure 4 Crimping the insulation grip
5. Figure 5. Check that the crimp is correctly made.
Figure 5 Inspecting the finished crimp
6. Insert the replacement terminal into the connector housing.
Correct
Incorrect:
Wire exposed
Insulation in the crimp
Loose strands of wire
To Next Page
