February 2013
4-140
ColorQube® 9303 Family
REP 12.15-171
Repairs/Adjustments
6. Remove the rear tamper assembly, Figure 2.

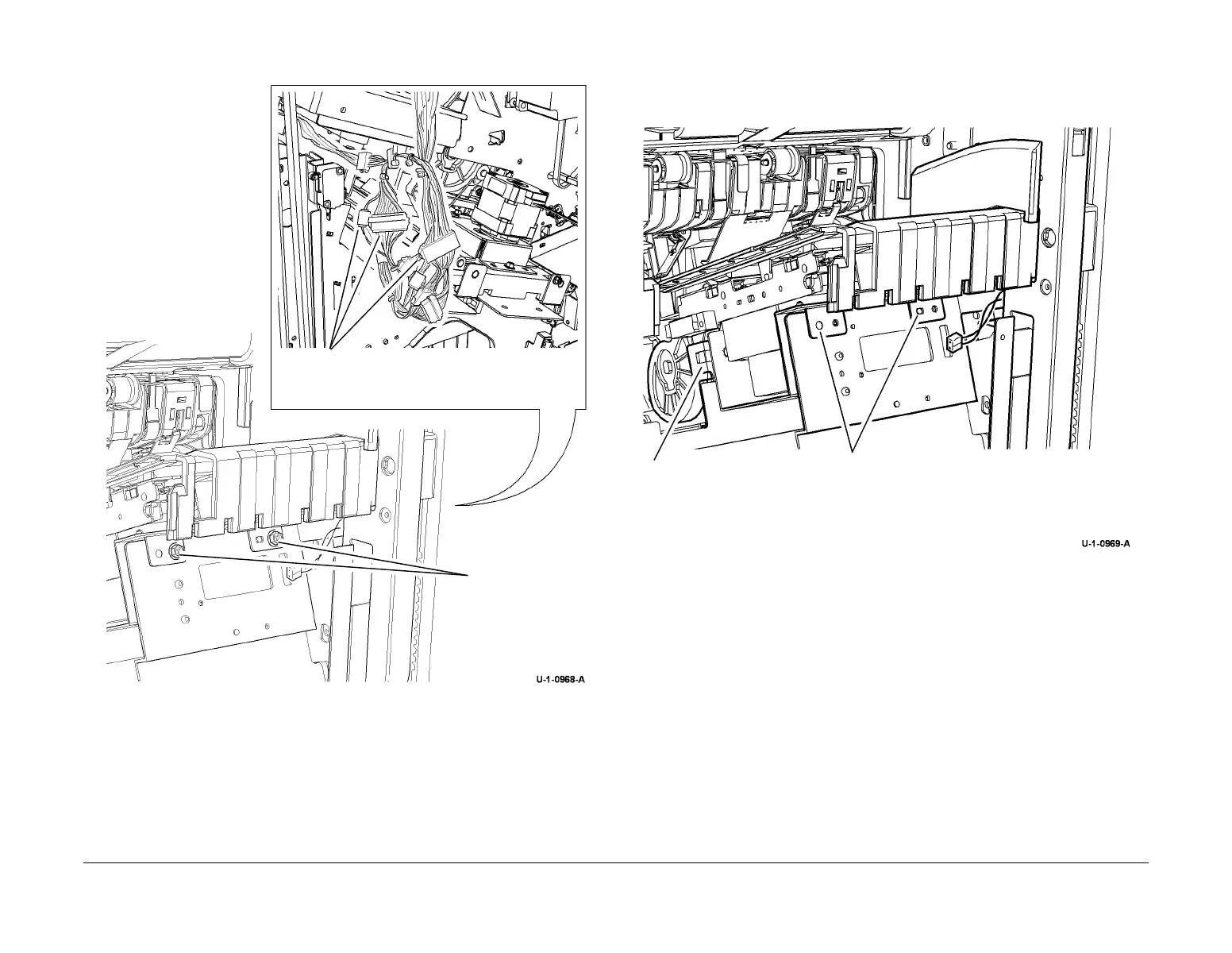

Figure 2 Remove rear tamper assembly
Replacement
1. Reverse the removal procedures to reinstall the rear tamper assembly.
2. Ensure that the rear tamper assembly is located correctly, Figure 3.
Figure 3 Rear tamper assembly location
2
Remove 2 screws
and remove the
assembly.
1
Disconnect 3 PJs.
1
Ensure that the rear support
pins are located correctly on
the frame bracket.
2
Ensure that the fixing brackets
are located on the tabs at the
front.
To Next Page
