February 2013
4-150
ColorQube® 9303 Family
REP 12.21-171
Repairs/Adjustments

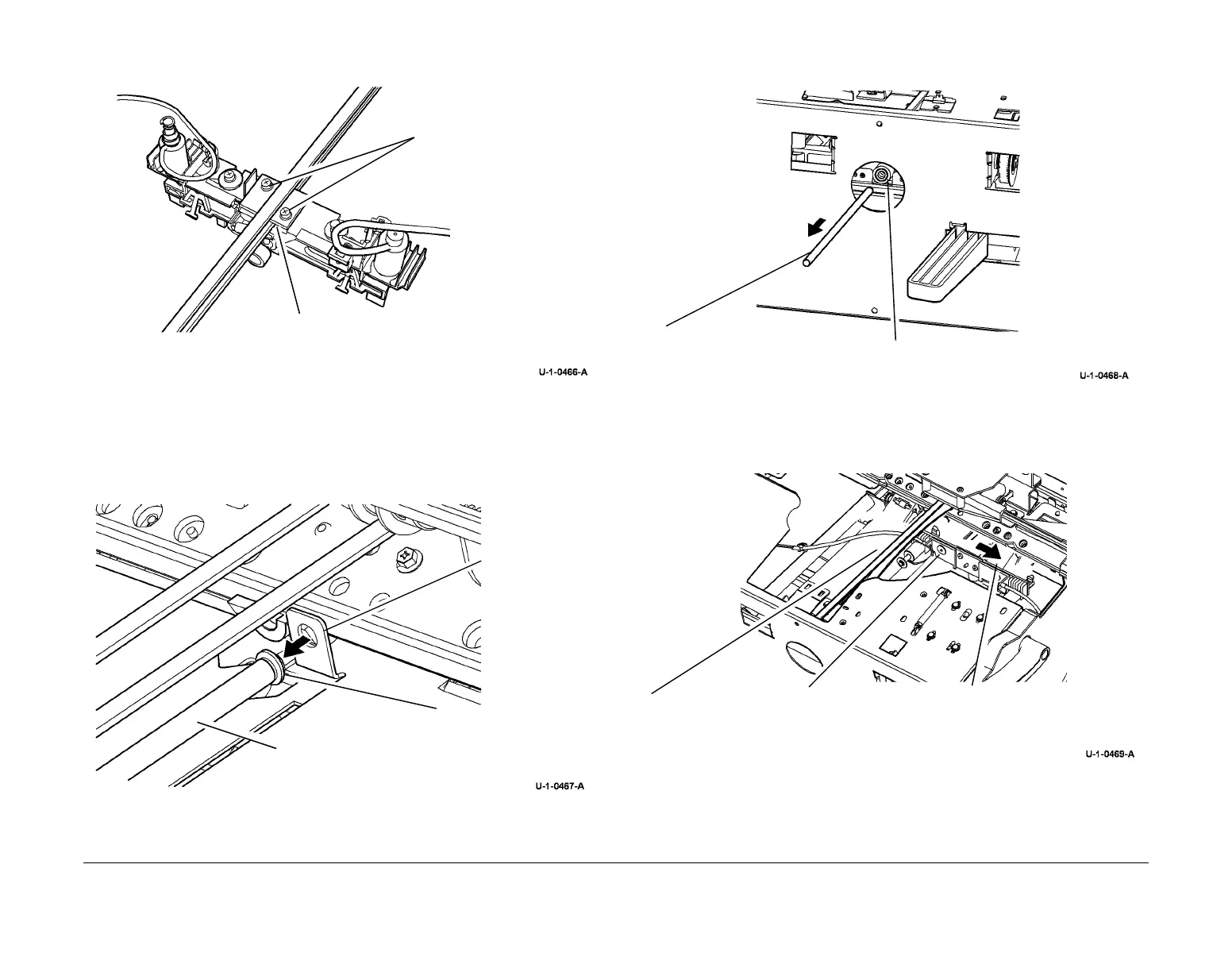

7. Remove the belt clamp, Figure 2.
Figure 2 Belt clamp
8. Use the allen key, PL 12.160 Item 9 to remove the 2 screws and remove shaft support, PL
12.165 Item 10.
9. Prepare to remove the shaft from the frame, Figure 3.
Figure 3 Preparation
10. Move the backstop assembly to the bottom of the BM assembly.
11. Remove the shaft from the BM backstop assembly, Figure 4.
Figure 4 Remove the shaft
12. Remove the BM backstop assembly, Figure 5.
Figure 5 Remove the backstop assembly
Replacement
1. Reverse the removal procedure to replace the backstop assembly.
1
Remove 2 screws.
2
Remove the belt clamp.
1
Move the shaft.
2
Remove the E-clip.
Frame locator
1
Remove the shaft through the
bottom of the BM assembly.
BM backstop assembly
1
Flex the belt upwards.
2
Rotate the BM backstop
into this position.
3
Slide the BM backstop under
the belt.
To Next Page
