Xerox ColorQube 9301 Service Manual

February 2013
4-164
ColorQube® 9303 Family
REP 12.29-171
Repairs/Adjustments

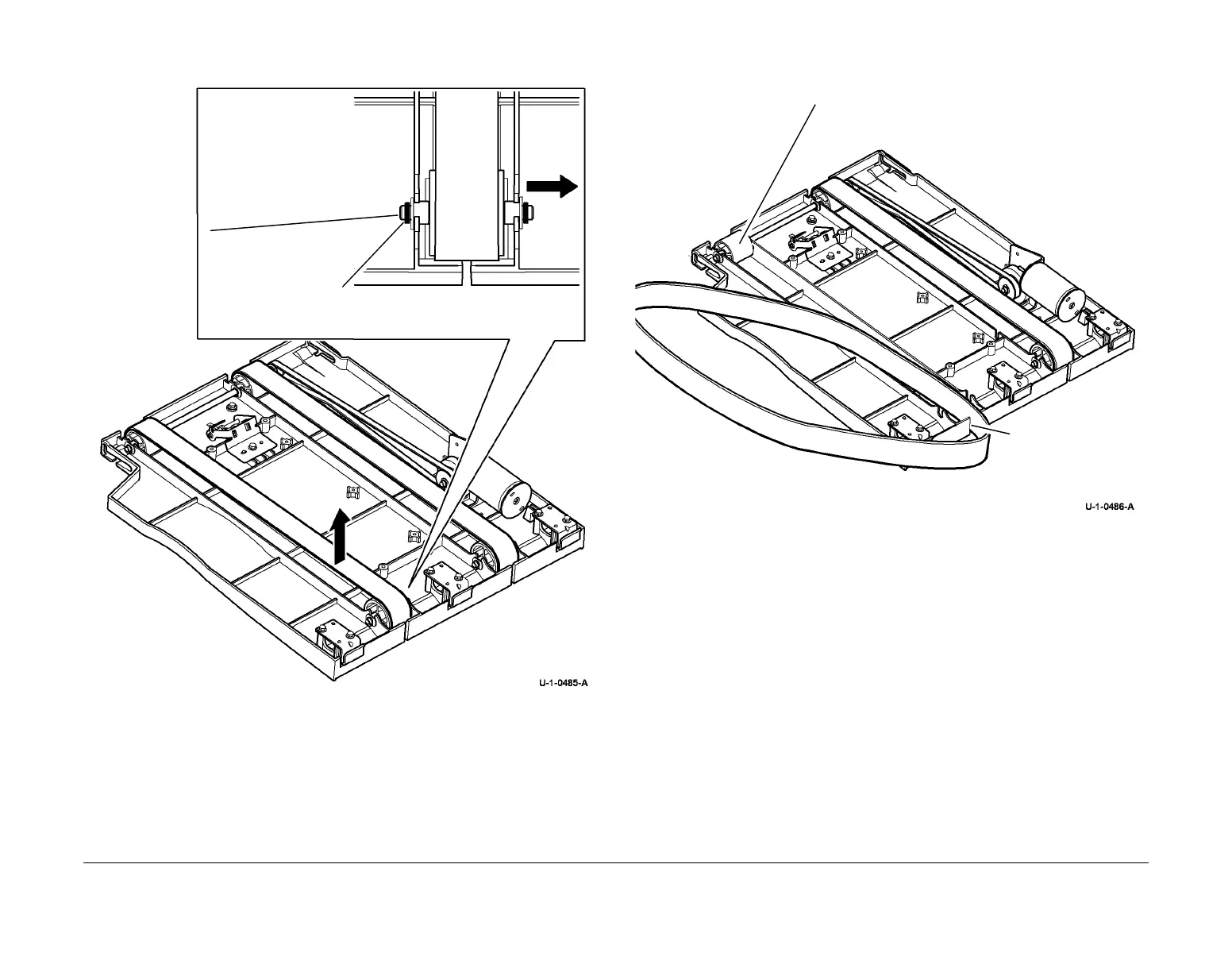

5. Figure 1, remove the idler roller.
Figure 1 Idler roller removal
6. Figure 2, remove the BM conveyor belt.
Figure 2 Belt removal
Replacement
Reverse the removal procedure to replace the BM conveyor belts.
1
Remove the E-clip.
2
Push out the shaft and
remove one bearing.
3
Push the other bearing
though the frame to
remove the idler roller.
1
Release the belt from the drive
pulley.
2
Feed the belt through
the cut-out to remove
.
