8-30 Phaser 3250 Laser Printer Service Manual
Service Parts Disassembly

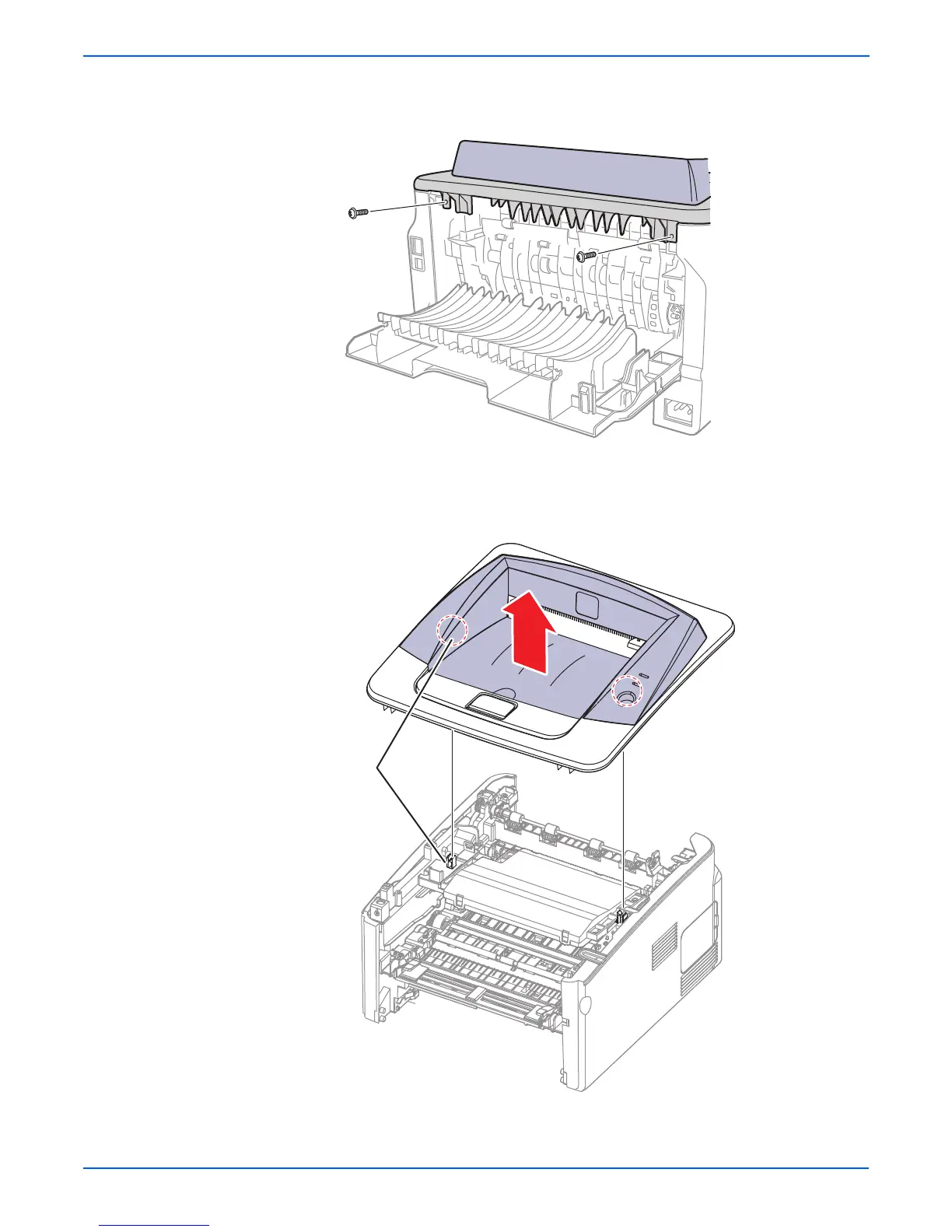

7. Open the Rear Cover.
8. Remove 2 screws securing the rear side of the Top Cover.
9. Lift the Top Cover to release the right and left cover latches from the clips
on the printer frame.
10. Remove the Top Cover.
s3250-082
Clips
s3250-083
