Phaser 3250 Laser Printer Service Manual 8-41
Service Parts Disassembly

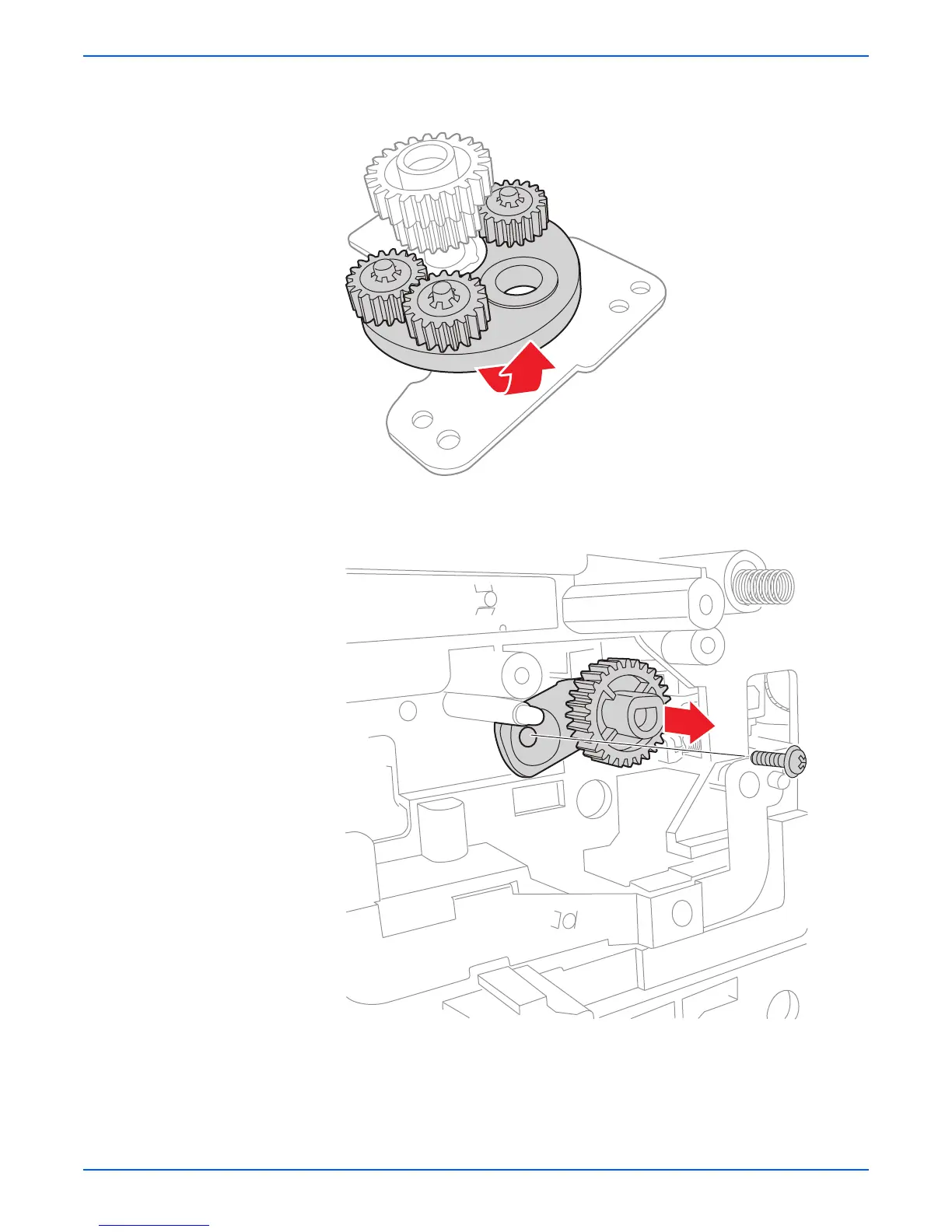

19. Remove the Swing Collar (PL6.1.15), the RDCN 23/23 Gear (PL6.1.14),
and the MEA Swing Unit (PL6.1.13).
20. Remove the Gear and 1 screw securing the Regi Holder (PL6.1.12) and
remove the Regi Holder.
