Xerox Phaser 3250 - Page 225

8-42 Phaser 3250 Laser Printer Service Manual
Service Parts Disassembly

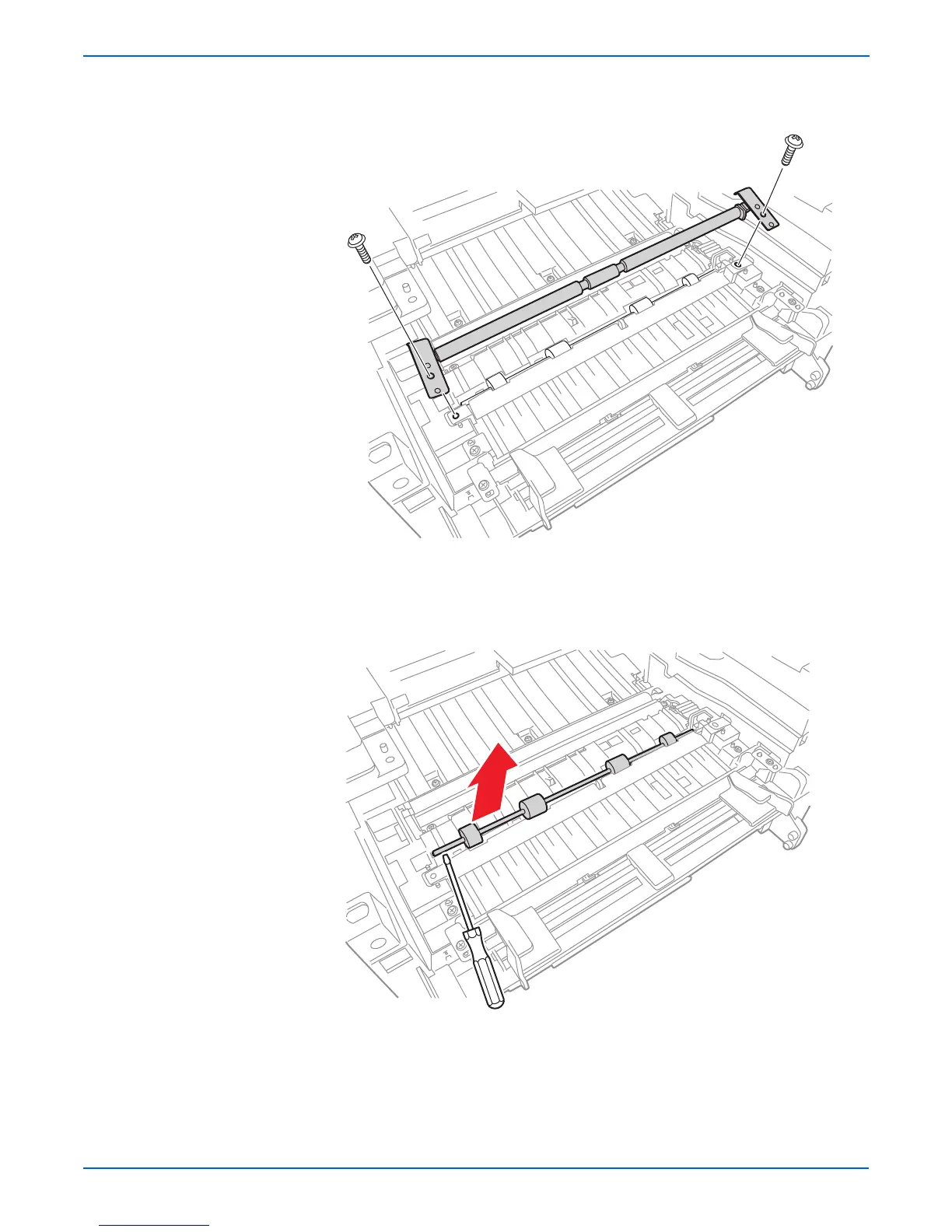

21. Remove 2 screws securing the Idle Feed Shaft (PL6.1.97) and remove
the Feed Shaft together with the Springs and Bushings.
22. Use a flat tip screw driver to pry the Feed Roller up and away from the
printer.
23. Remove the Feed Roller.
s3250-112
s3250-113
