Phaser 3250 Laser Printer Service Manual 8-65
Service Parts Disassembly

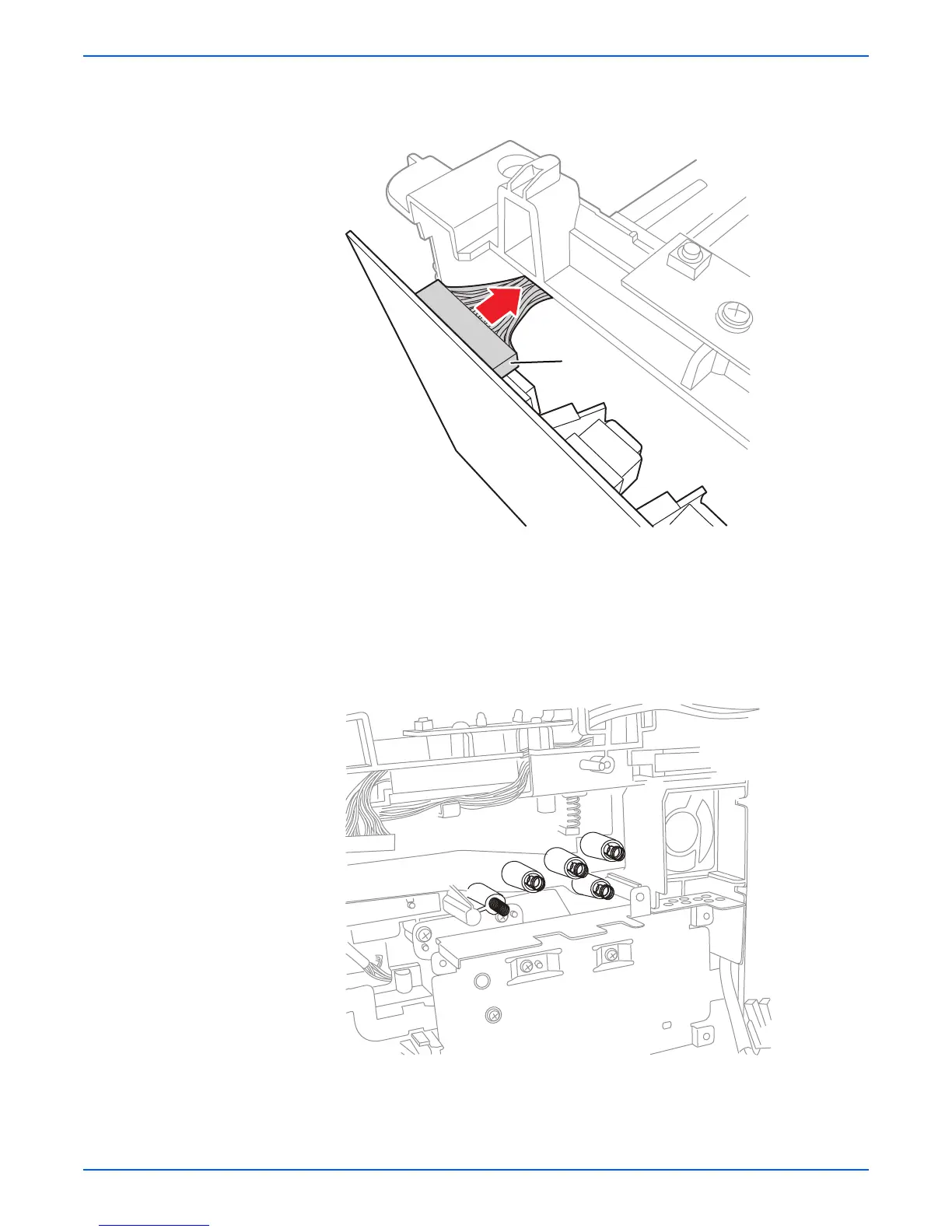

10. Disconnect 1 wiring harness connector.
11. Remove the HVPS.
Replacement Note
Ensure to secure the 6 screws in order (1-6).
Be careful not to drop the 4 Contact Springs (PL6.1.6.2) on the printer
frame.
s3250-129
CN1
s3250-130
