8-66 Phaser 3250 Laser Printer Service Manual
Service Parts Disassembly

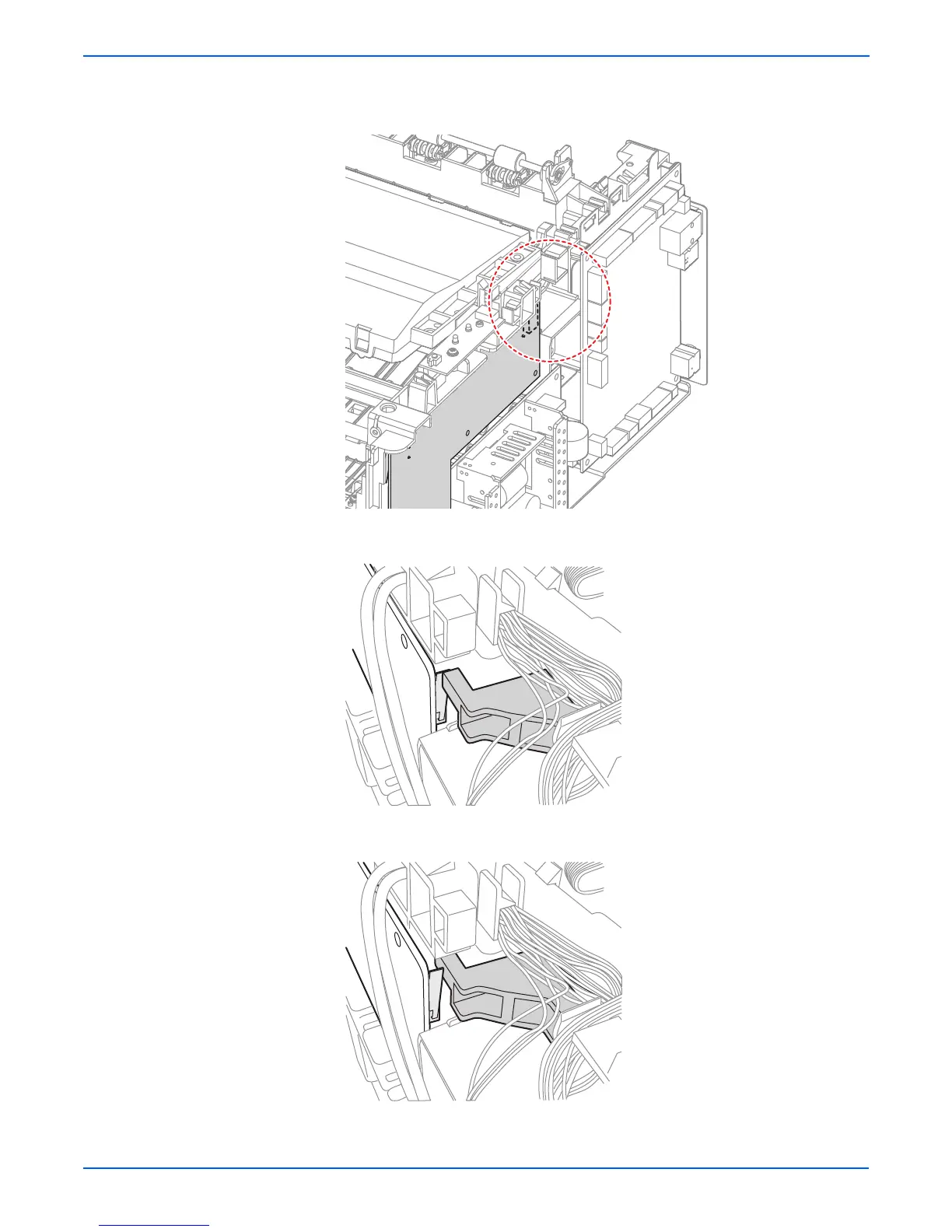

Make sure the Switch Actuator does not interfere with the Link Cover Rear
(PL6.6.111)
Rear Link Cover with MEA Unit Guide Rear in Down Position (Correct)
Rear Link Cover with MEA Unit Guide Rear in Up Position (Incorrect)
