ELECTRICAL COMPONENTS
8-182
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼

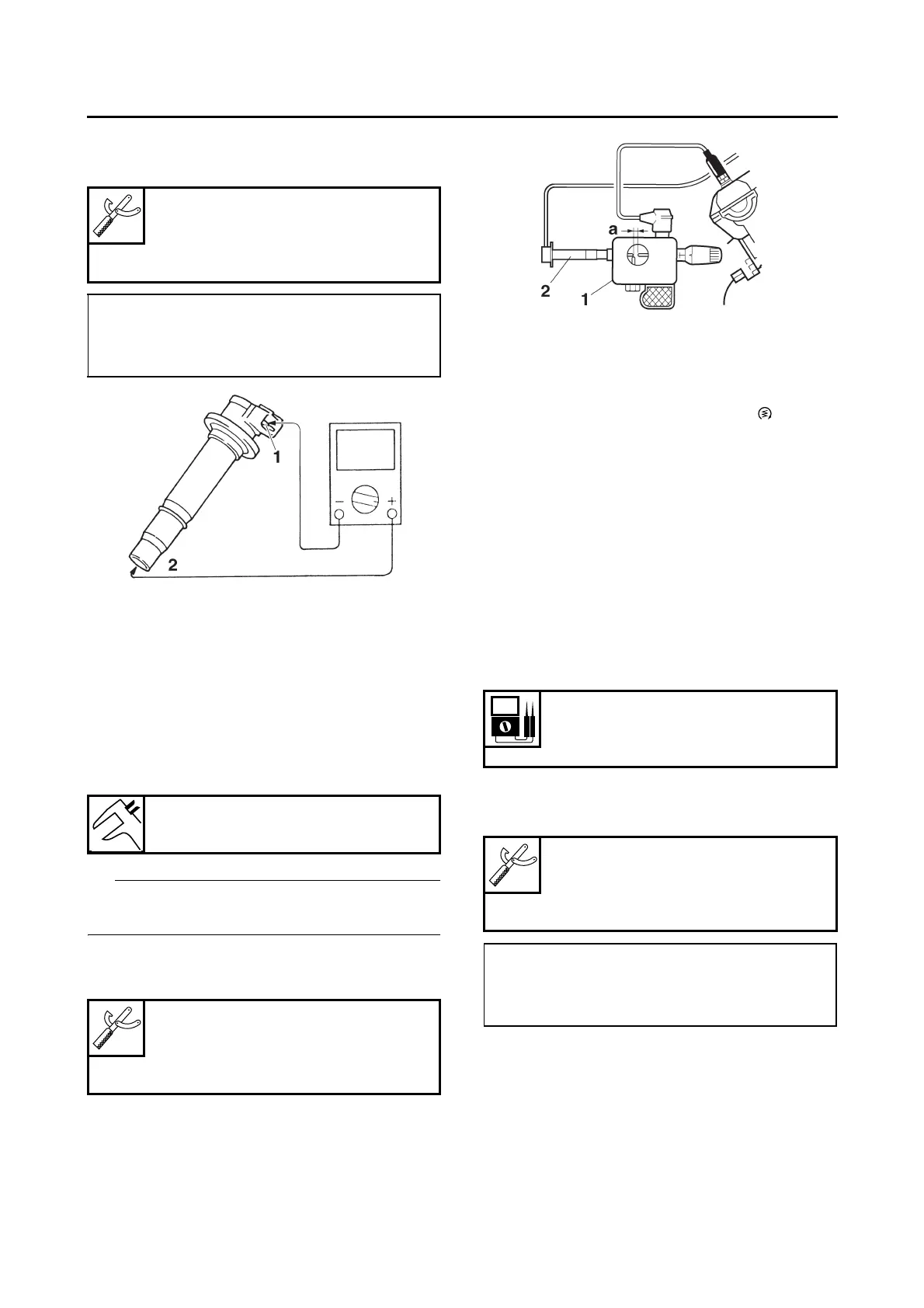

a. Connect the pocket tester (Ω × 1k) to the ig-
nition coil as shown.
b. Measure the secondary coil resistance.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
ET3P61015
CHECKING THE IGNITION SPARK GAP
1. Check:
• Ignition spark gap
Out of specification → Perform the ignition
system troubleshooting, starting with step 5.
Refer to “TROUBLESHOOTING” on page
8-4.
If the ignition spark gap is within specification,
the ignition system circuit is operating normally.
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Remove the ignition coil from the spark plug.
b. Connect the ignition checker “1” as shown.
c. Turn the main switch to “ON”.
d. Measure the ignition spark gap “a”.
e. Crank the engine by pushing the “ ” side of
the start/engine stop switch and gradually in-
crease the spark gap until a misfire occurs.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS28120
CHECKING THE CRANKSHAFT POSITION
SENSOR
1. Disconnect:
• Crankshaft position sensor coupler
(from the wire harness)
2. Check:
• Crankshaft position sensor resistance
Out of specification → Replace the crank-
shaft position sensor.
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Connect the pocket tester (Ω × 100) to the
crankshaft position sensor coupler as shown.
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe →
red/black “1”
• Negative tester probe →
Spark plug terminal “2”
Minimum ignition spark gap
6.0 mm (0.24 in)
Ignition checker
90890-06754
Oppama pet-4000 spark checker
YM-34487
2. Ignition coil
Crankshaft position sensor resis-
tance
421–569 Ω
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe →
gray “1”
• Negative tester probe →
black “2”
To Next Page
