ENGINE
3-7
9. Measure:
• Engine idling speed
Out of specification → Adjust.
Make sure that the vacuum pressure is within
specification.
10.Stop the engine and remove the measuring
equipment.
11.Adjust:
• Throttle cable free play
Refer to “ADJUSTING THE THROTTLE CA-
BLE FREE PLAY” on page 3-8.
12.Install:
• Caps
13.Install:
• T-bar
• Rider seat
Refer to “GENERAL CHASSIS” on page 4-1.
EAS20600

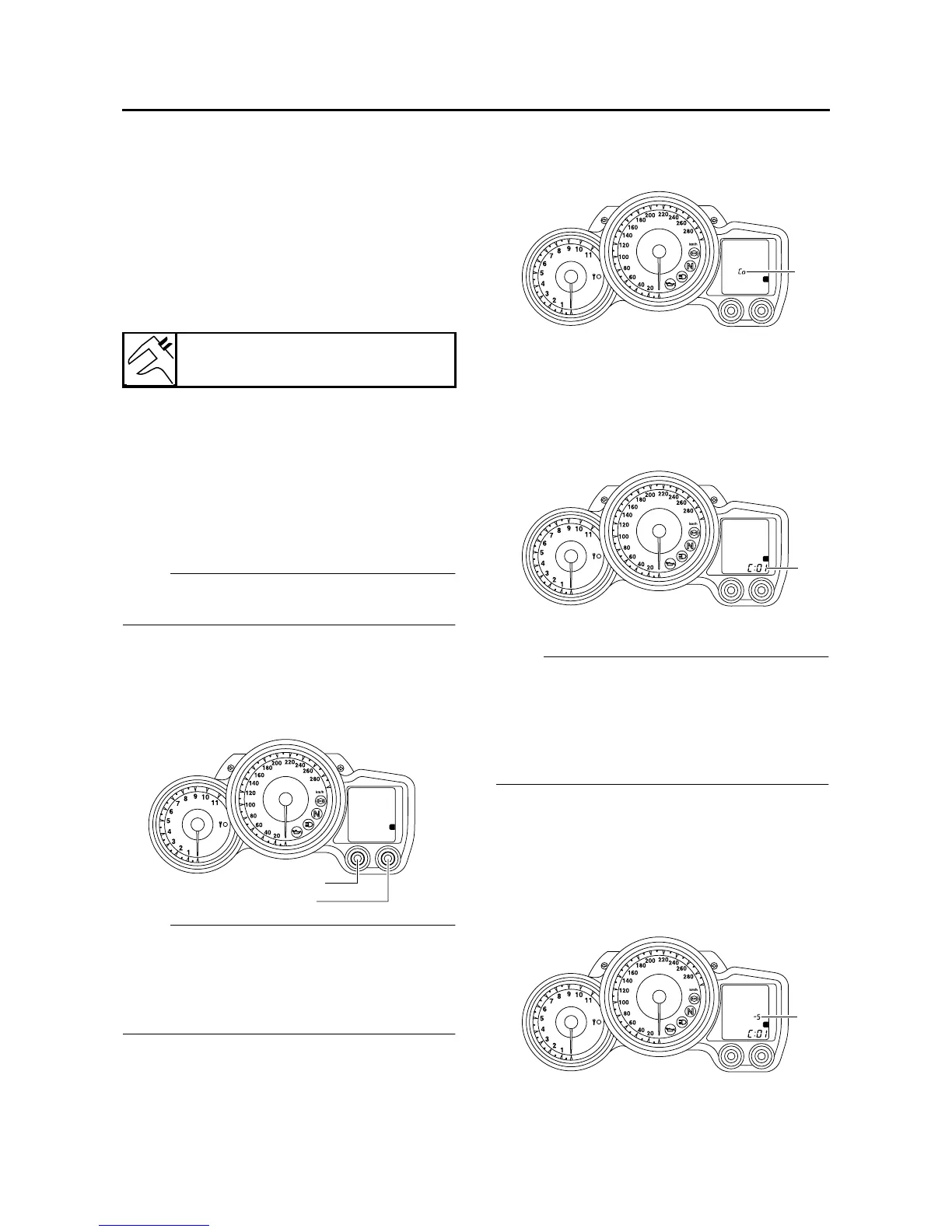

ADJUSTING THE EXHAUST GAS VOLUME
NOTE:
Be sure to set the CO density level to standard,
and then adjust the exhaust gas volume.
1. Turn the main switch to “OFF”.
2. Simultaneously press and hold the “SE-
LECT” and “RESET” buttons, turn the main
switch to “ON”, and continue to press the but-
tons for 8 seconds or more.
NOTE:
• All displays on the meter disappear except the
odometer/tripmeter/fuel reserve tripmeter dis-
plays.
•“dIAG” appears on the odometer/tripmeter/fuel
reserve tripmeter LCD.
3. Press the “SELECT” button to select the CO
adjustment mode “Co” “1” or the diagnostic
mode “dIAG”.
4. After selecting “CO”, simultaneously press
the “SELECT” and “RESET” buttons for 2
seconds or more to activate the selection.
5. Press the “SELECT” and “RESET” buttons to
select a cylinder number “1”.
NOTE:
The selected cylinder number appears on the
clock LCD.
• To decrease the selected cylinder number,
press the “RESET” button.
• To increase the selected cylinder number,
press the “SELECT” button.
6. After selecting the cylinder number, simulta-
neously press the “SELECT” and “RESET”
buttons for 2 seconds or more to activate the
selection.
7. Change the CO adjustment volume “2” by
pressing the “SELECT” and “RESET” but-
tons.
Throttle cable free play
3.0–5.0 mm (0.12–0.20 in)
“SELECT”
“RESET”
1
1
2
To Next Page
