PICKUP ROTOR
5-34
EAS24520

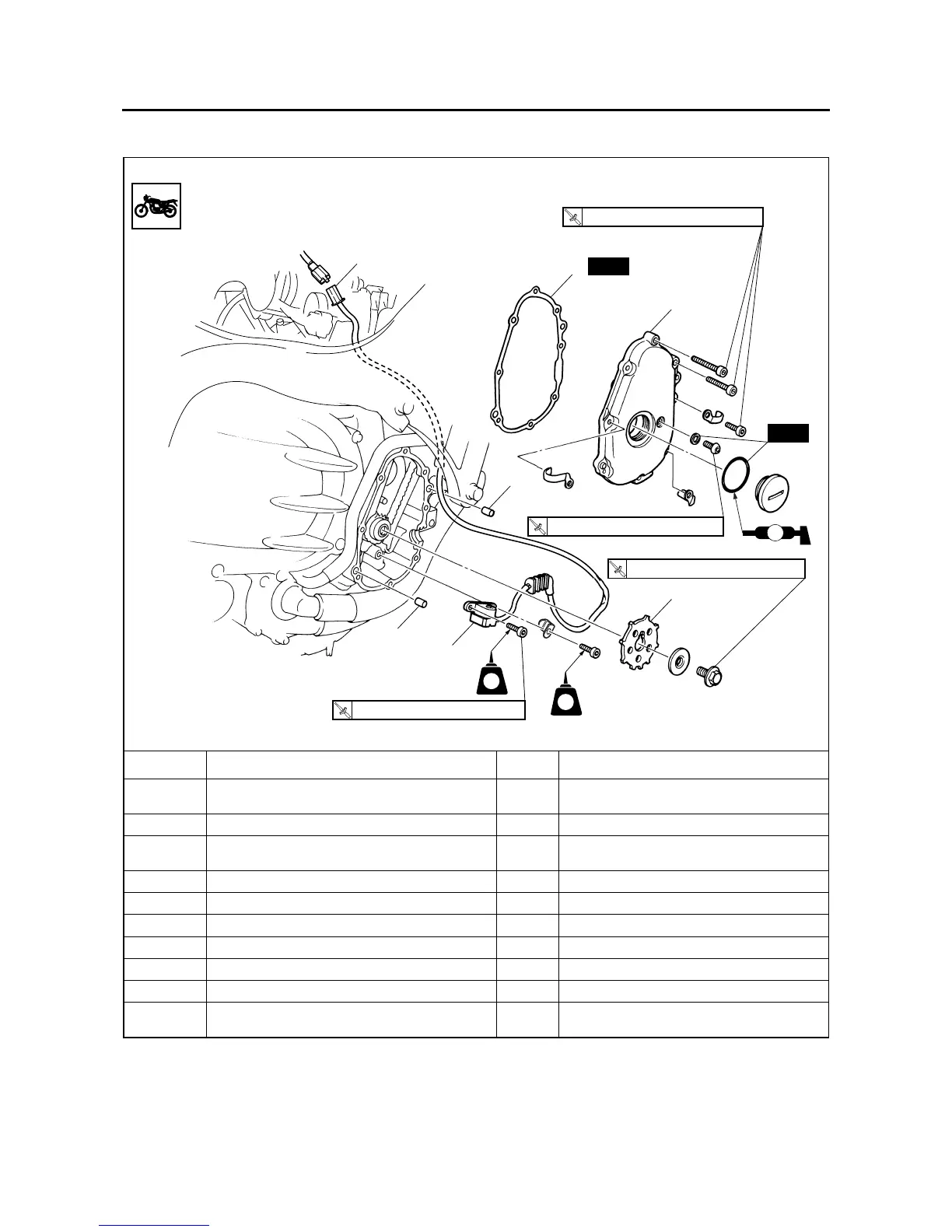

PICKUP ROTOR
Removing the pickup rotor
Order Job/Parts to remove Q’ty Remarks
Side cowlings/Air filter case
Refer to “GENERAL CHASSIS” on page
4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Generator cover
Refer to “GENERATOR AND STARTER
CLUTCH” on page 5-28.
1Pickup rotor cover 1
2 Pickup rotor cover gasket 1
3 Dowel pin 2
4 Crankshaft position sensor coupler 1 Disconnect.
5 Crankshaft position sensor 1
6Pickup rotor 1
For installation, reverse the removal proce-
dure.
LT
New
New
2
1
6
3
3
5
4
LT
(6)
LS
T
R
.
.
4 Nm (0.4 m
•
kg, 2.9 ft
•
Ib)
T
R
.
.
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
T
R
.
.
15 Nm (1.5 m
•
kg, 11 ft
•
Ib)
T
R
.
.
45 Nm (4.5 m
•
kg, 32 ft
•
Ib)
To Next Page
