MIDDLE GEAR
5-67
EAS25730

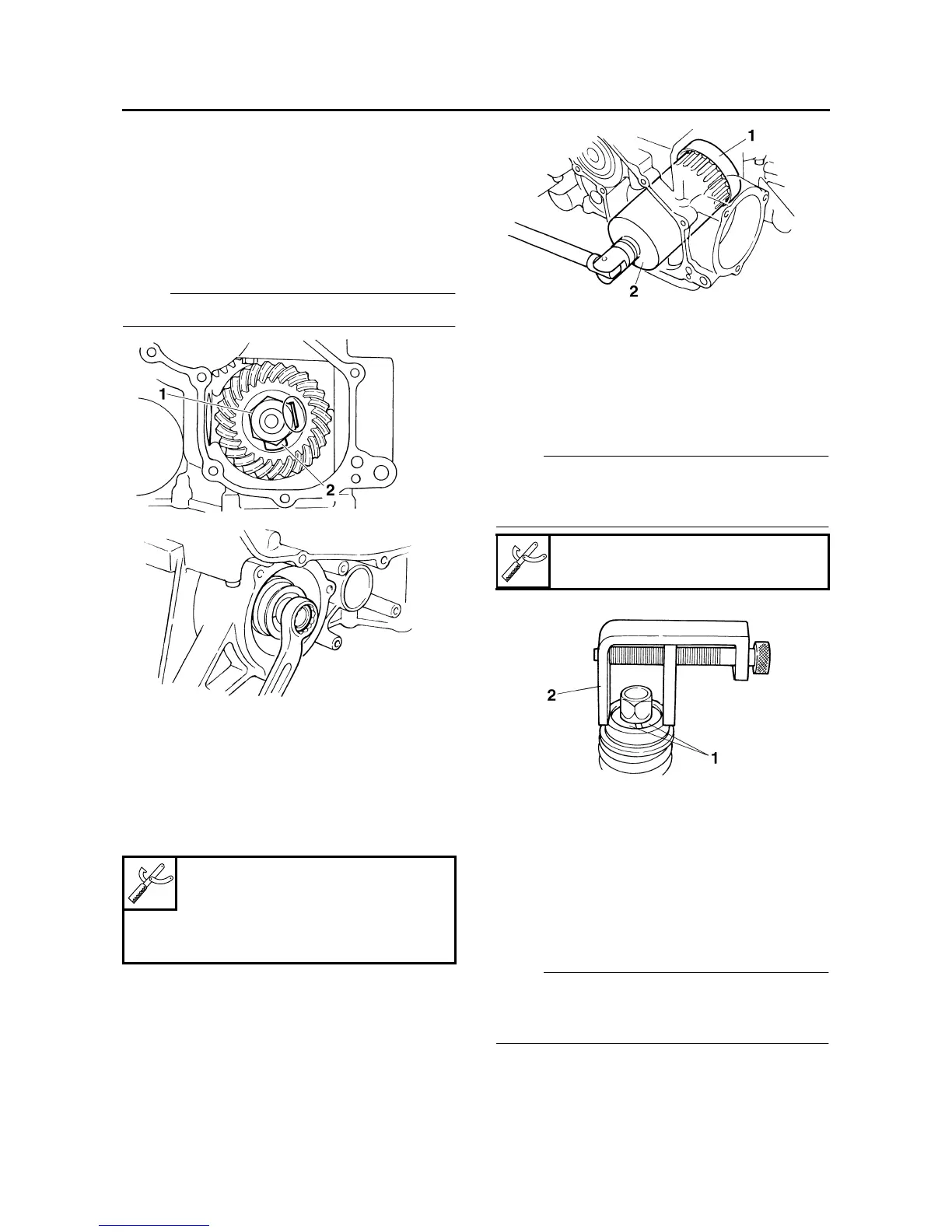

REMOVING THE MIDDLE DRIVE SHAFT
ASSEMBLY
1. Remove:
• Middle drive pinion gear nut “1”
• Lock washer “2”
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Straighten the lock washer tab.
b. Loosen the middle drive pinion gear nut.
NOTE:
While holding the middle drive shaft.
c. Remove the middle drive pinion gear nut and
lock washer.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
2. Remove:
• Bearing retainer “1”
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Straighten the thread on the bearing retainer.
b. Attach the bearing retainer wrench “2”.
c. Loosen the bearing retainer.
d. Remove the bearing retainer.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS25750
DISASSEMBLING THE MIDDLE DRIVE
SHAFT ASSEMBLY
1. Remove:
• Spring retainers “1”
NOTE:
While compressing the spring with the damper
spring compressor “2”, remove the spring retain-
ers.
EAS25770
DISASSEMBLING THE MIDDLE DRIVEN
SHAFT ASSEMBLY
1. Remove:
• Middle driven pinion gear nut
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Straighten the thread on the middle driven
pinion gear nut.
b. Loosen the middle driven pinion gear nut.
NOTE:
Secure the middle driven shaft in a vise, making
sure to tighten the vise jaws onto the flat sec-
tions of the shaft.
Bearing retainer wrench
90890-04137
Middle drive shaft bearing retain-
er wrench
YM-04137
Damper spring compressor
90890-04090
