FRONT WHEEL
4-13
EAS21880
FRONT WHEEL

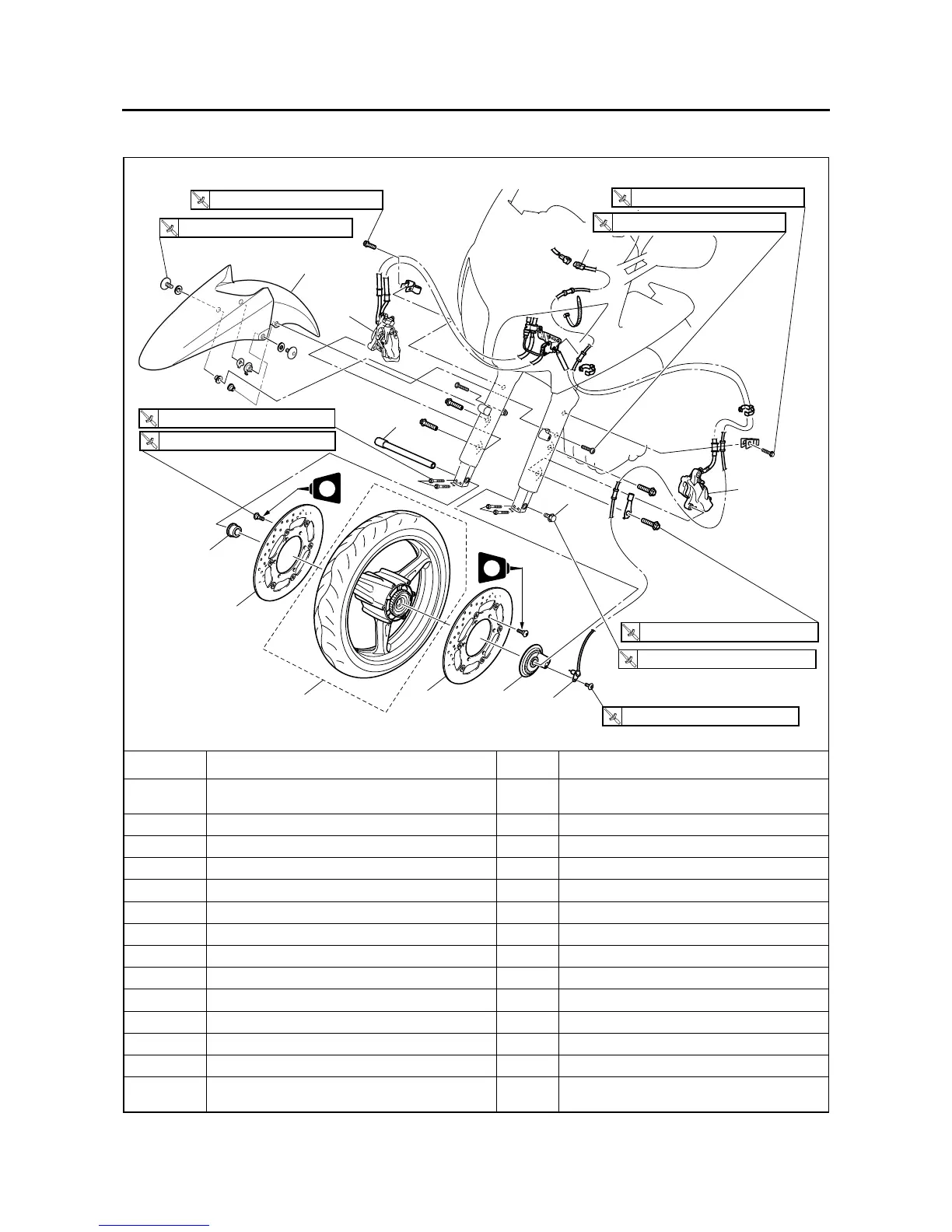

Removing the front wheel, brake discs, wheel sensor, and sensor housing
Order Job/Parts to remove Q’ty Remarks
Rider seat/T-bar
Refer to “GENERAL CHASSIS” on page
4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 Front fender 1
2 Front wheel sensor coupler 1 Disconnect.
3 Front wheel sensor 1
4 Front brake caliper 2
5 Front wheel axle pinch bolt 4 Loosen.
6 Front wheel axle bolt 1
7 Front wheel axle 1
8 Front wheel 1
9 Front wheel sensor housing 1
10 Collar 1
11 Front brake disc 2
For installation, reverse the removal proce-
dure.
T
R
.
.
18 Nm (1.8 m
•
kg, 13 ft
•
Ib)
T
R
.
.
30 Nm (3.0 m
•
kg, 22 ft
•
Ib)
T
R
.
.
21 Nm (2.1 m
•
kg, 15 ft
•
Ib)
T
R
.
.
91Nm (9.1 m
•
kg, 66 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
40 Nm (4.0 m
•
kg, 29 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
6 Nm (0.6 m
•
kg, 4.3 ft
•
Ib)
T
R
.
.
6 Nm (0.6 m
•
kg, 4.3 ft
•
Ib)
10
11
8
11
9
3
5
5
7
6
(6)
(6)
4
2
LT
LT
4
1
