CHASSIS
3-26
4. Install:
• Final gear oil filler bolt
EAS21470

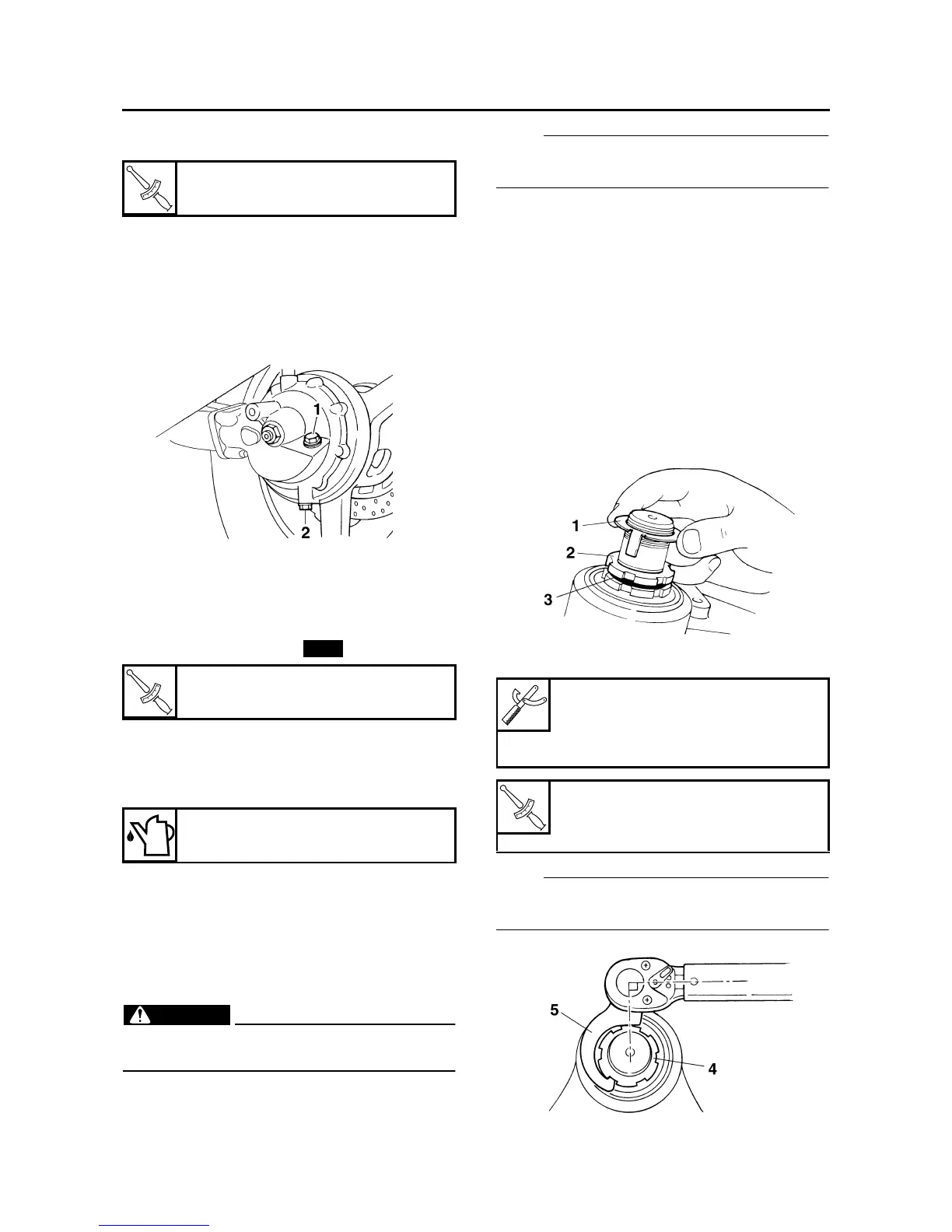

CHANGING THE FINAL GEAR OIL
1. Place a container under the final gear case.
2. Remove:
• Final gear oil filler bolt “1”
• Final gear oil drain bolt “2”
Completely drain the final gear case of its oil.
3. Check:
• Final gear oil drain bolt gasket
Damage → Replace.
4. Install:
• Final gear oil drain bolt
(along with the gasket )
5. Fill:
• Final gear case
(with the specified amount of the recom-
mended final gear oil)
Refer to “CHECKING THE FINAL GEAR OIL
LEVEL” on page 3-25.
EAS21510
CHECKING AND ADJUSTING THE
STEERING HEAD
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
NOTE:
Place the vehicle on a suitable stand so that the
front wheel is elevated.
2. Check:
• Steering head
Grasp the bottom of the front fork legs and
gently rock the front fork.
Binding/looseness → Adjust the steering
head.
3. Remove:
• Upper bracket
Refer to “STEERING HEAD” on page 4-75.
4. Adjust:
• Steering head
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Remove the lock washer “1”, the upper ring
nut “2”, and the rubber washer “3”.
b. Tighten the lower ring nut “4” with a steering
nut wrench “5”.
NOTE:
Set a torque wrench at a right angle to the steer-
ing nut wrench.
T
R
.
.
Final gear oil filler bolt
23 Nm (2.3 m·kg, 17 ft·lb)
T
R
.
.
Final gear oil drain bolt
23 Nm (2.3 m·kg, 17 ft·lb)
Quantity
0.20 L (0.21 US qt) (0.18 Imp.qt)
New
Steering nut wrench
90890-01403
Spanner wrench
YU-33975
T
R
.
.
Lower ring nut (initial tightening
torque)
52 Nm (5.2 m·kg, 37 ft·lb)
To Next Page
