OIL PUMP
5-58
EAS24920
OIL PUMP

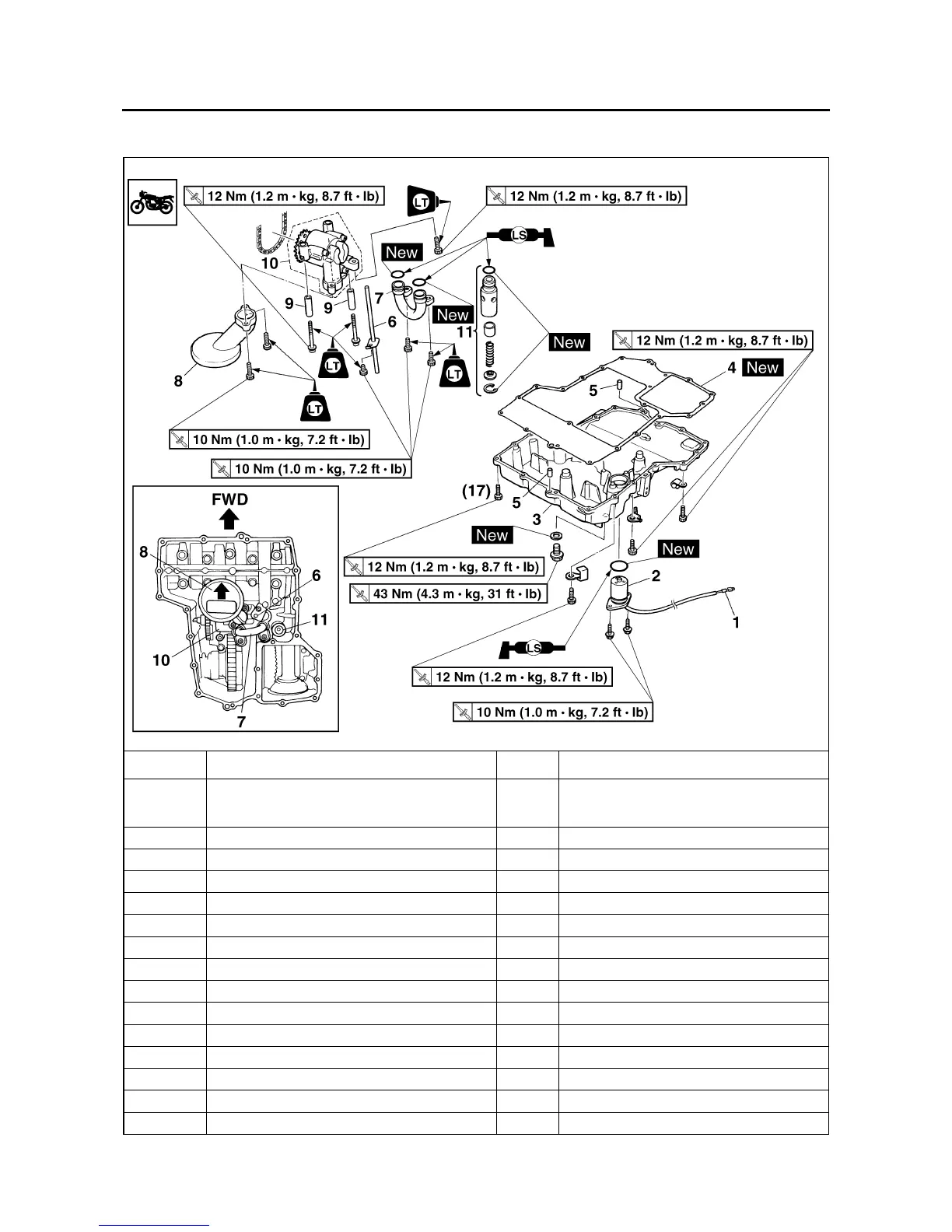

Removing the oil pan and oil pump
Order Job/Parts to remove Q’ty Remarks
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-13.
Throttle bodies Refer to “THROTTLE BODIES” on page 7-4.
Exhaust pipe assembly Refer to “ENGINE REMOVAL” on page 5-1.
Sidestand Refer to “SHAFT DRIVE” on page 4-87.
Water pump Refer to “WATER PUMP” on page 6-10.
1 Oil level switch coupler 1 Disconnect.
2 Oil level switch 1
3Oil pan 1
4 Oil pan gasket 1
5 Dowel pin 2
6 Oil delivery pipe 2 1
7 Oil delivery pipe 3 1
8 Oil strainer 1
9 Dowel pin 2
10 Oil pump 1
To Next Page
