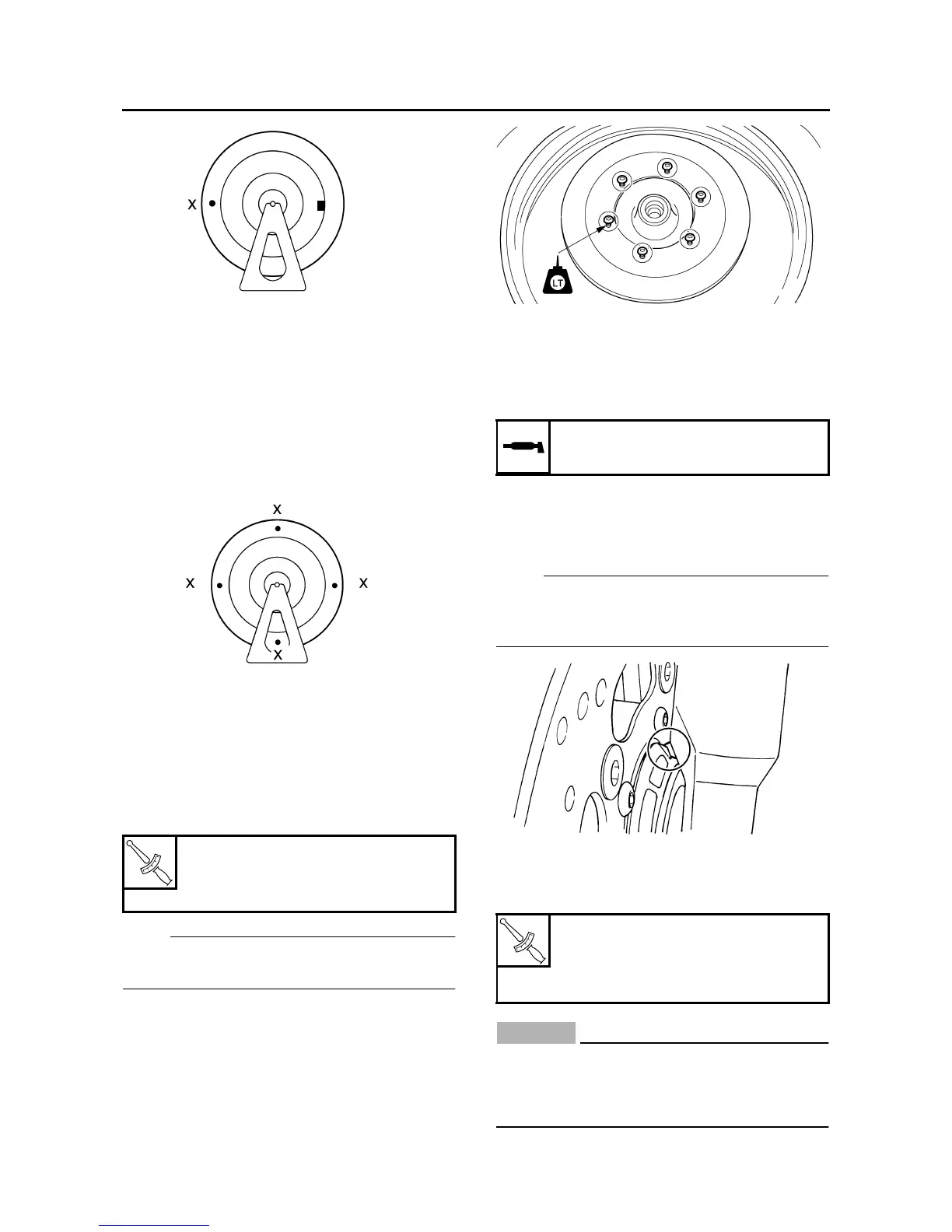

FRONT WHEEL
4-18
c. If the heavy spot does not stay in that posi-
tion, install a heavier weight.
d. Repeat steps (b) and (c) until the front wheel
is balanced.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
4. Check:
• Front wheel static balance
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Turn the front wheel and make sure it stays at
each position shown.
b. If the front wheel does not remain stationary
at all of the positions, rebalance it.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS22000
INSTALLING THE FRONT WHEEL (FRONT
BRAKE DISCS)
1. Install:
• Front brake discs
NOTE:
Tighten the brake disc bolts in stages and in a
crisscross pattern.
2. Check:
• Front brake discs
Refer to “CHECKING THE FRONT BRAKE
DISCS” on page 4-30.
3. Lubricate:
• Oil seal lips
4. Install:
• Collar
• Front wheel sensor housing
• Front wheel
NOTE:
Align the slot in the front wheel sensor housing
with the projection of the front fork before as-
sembly.
5. Install:
• Front wheel axle
• Front wheel axle bolt
• Front wheel axle pinch bolts
CAUTION:
EC3P61022
Before tightening the wheel axle bolt, push
down hard on the handlebars several times
and check if the front fork rebounds smooth-
ly.
T
R
.
.
Front brake disc bolt
18 Nm (1.8 m·kg, 13 ft·lb)
LOCTITE
®
Recommended lubricant
Lithium-soap-based grease
T
R
.
.
Front wheel axle bolt
91 Nm (9.1 m·kg, 66 ft·lb)
Front wheel axle pinch bolt
21 Nm (2.1 m·kg, 15 ft·lb)
