BALANCERS
5-106
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲

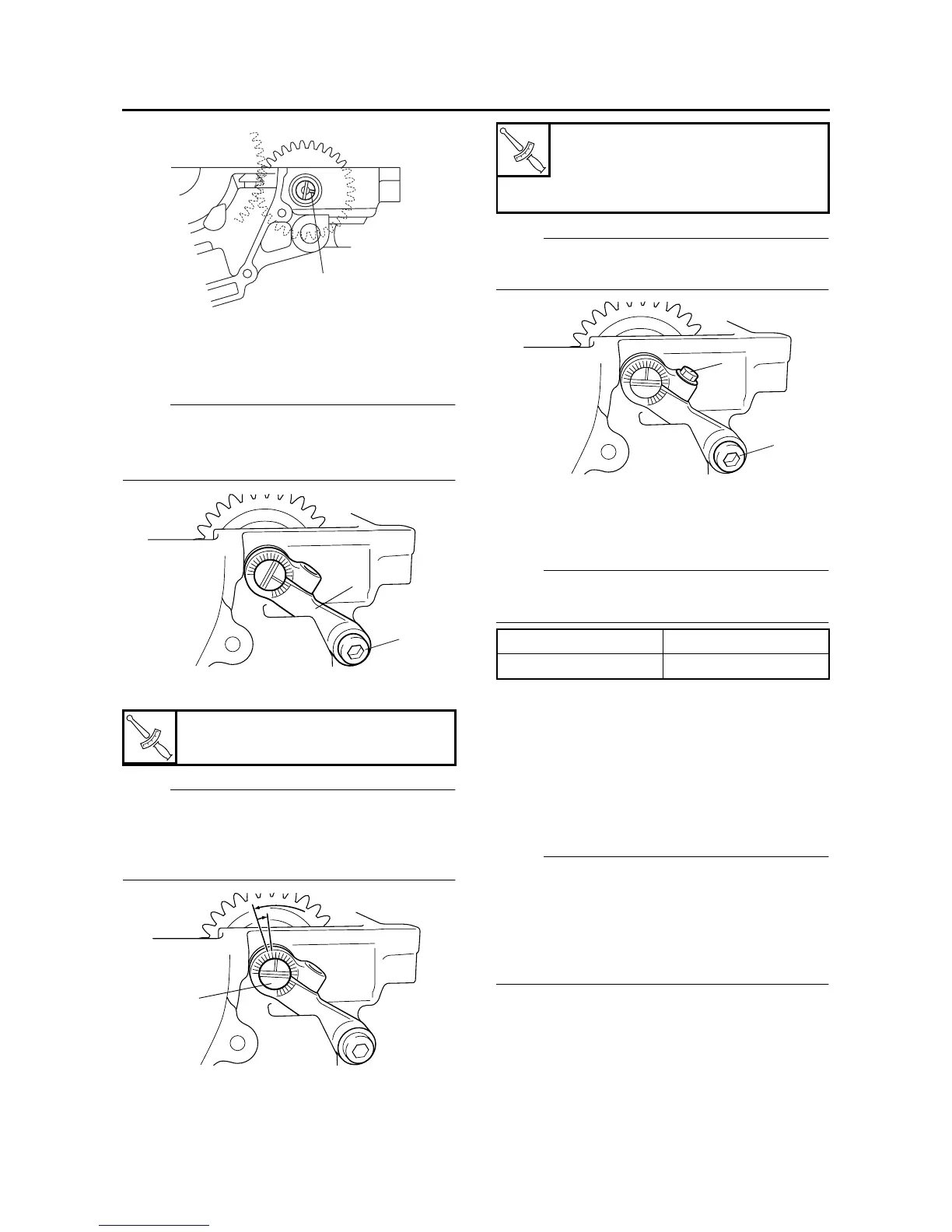

4. Install:
• Front balancer lever “1”
• Front balancer lever bolt “2”
NOTE:
• Apply locking agent (LOCTITE
®
) to the threads
of the balancer lever bolt.
• Temporarily tighten the balancer lever bolt.
5. Tighten:
• Front balancer shaft “1”
NOTE:
Tighten the balancer shaft to the specified
torque by turning it counterclockwise, and then
turn it one mark back on the balancer lever
scale.
6. Tighten:
• Front balancer lever bolt “1”
• Front balancer shaft pinch bolt “2”
NOTE:
Make sure that the balancer shaft does not ro-
tate.
7. Start the engine and check that there is no
abnormal noise coming from the balancer
gear. If noise is abnormal, adjust the gear
lash by turning the balancer shaft.
NOTE:
With each adjustment, turn the balancer shaft
one scale.
ET3P61033
INSTALLING THE REAR BALANCER
1. Install:
• Rear balancer gear “1”
• Dampers “2”
• Rear balancer weight “3”
• Bearings
• Washers
NOTE:
• Install the dampers onto the balancer gear so
that the middle section “a” of each damper is
positioned to the outside of the gear projec-
tions as shown in the illustration.
• Align the punch mark “b” in the balancer weight
with the mark “c” in the balancer gear.
T
R
.
.
Front balancer shaft
0.4 Nm (0.04 m·kg, 0.29 ft·lb)
c
1
2
1
T
R
.
.
Front balancer lever bolt
14 Nm (1.4 m·kg, 10 ft·lb)
Front balancer shaft pinch bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
Clockwise Gear lash decreased
Counterclockwise Gear lash increased
2
1
