Yamaha FJR1300A - Checking the Fuel Line; Checking the Crankcase Breather Hose; Checking the Exhaust System

ENGINE
3-17
3. Install:
• Throttle body
Refer to “THROTTLE BODIES” on page 7-4.
• Air filter case
Refer to “GENERAL CHASSIS” on page 4-1.
• Fuel tank
Refer to “FUEL TANK” on page 7-1.
• Rider seat
Refer to “GENERAL CHASSIS” on page 4-1.
EAS21030

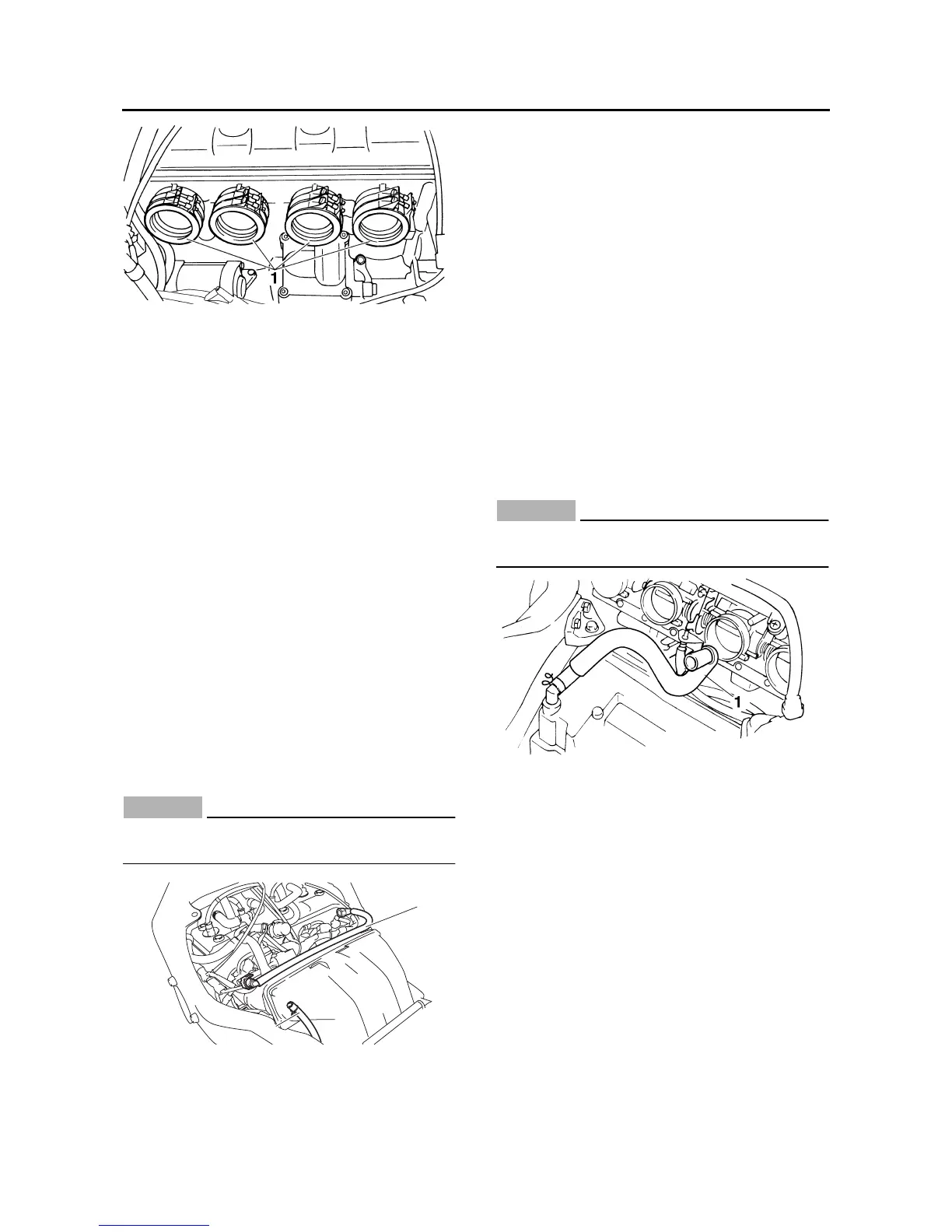

CHECKING THE FUEL LINE
1. Remove:
• Rider seat
Refer to “GENERAL CHASSIS” on page 4-1.
• Fuel tank
Refer to “FUEL TANK” on page 7-1.
• T-bar
Refer to “GENERAL CHASSIS” on page 4-1.
2. Check:
• Fuel hose “1”
• Fuel tank breather hose
• Fuel tank overflow hose
• Fuel tank breather/overflow hose “2”
Cracks/damage → Replace.
Loose connection → Connect properly.
CAUTION:
EC3P61005
Make sure the fuel tank breather/overflow
hose is routed correctly.
3. Install:
• T-bar
Refer to “GENERAL CHASSIS” on page 4-1.
• Fuel tank
Refer to “FUEL TANK” on page 7-1.
• Rider seat
Refer to “GENERAL CHASSIS” on page 4-1.
EAS21070
CHECKING THE CRANKCASE BREATHER
HOSE
1. Remove:
• Rider seat
Refer to “GENERAL CHASSIS” on page 4-1.
• Fuel tank
Refer to “FUEL TANK” on page 7-1.
• T-bar
• Air filter case
Refer to “GENERAL CHASSIS” on page 4-1.
2. Check:
• Crankcase breather hose “1”
Cracks/damage → Replace.
Loose connection → Connect properly.
CAUTION:
ECA13450
Make sure the crankcase breather hose is
routed correctly.
3. Install:
• Air filter case
• T-bar
Refer to “GENERAL CHASSIS” on page 4-1.
• Fuel tank
Refer to “FUEL TANK” on page 7-1.
• Rider seat
Refer to “GENERAL CHASSIS” on page 4-1.
EAS21080
CHECKING THE EXHAUST SYSTEM
The following procedure applies to all of the ex-
haust pipes and gaskets.
1. Remove:
• Side cowlings
Refer to “GENERAL CHASSIS” on page 4-1.
2. Check:
• Exhaust pipe assembly “1”
• Mufflers “2”
Cracks/damage → Replace.
2
1
