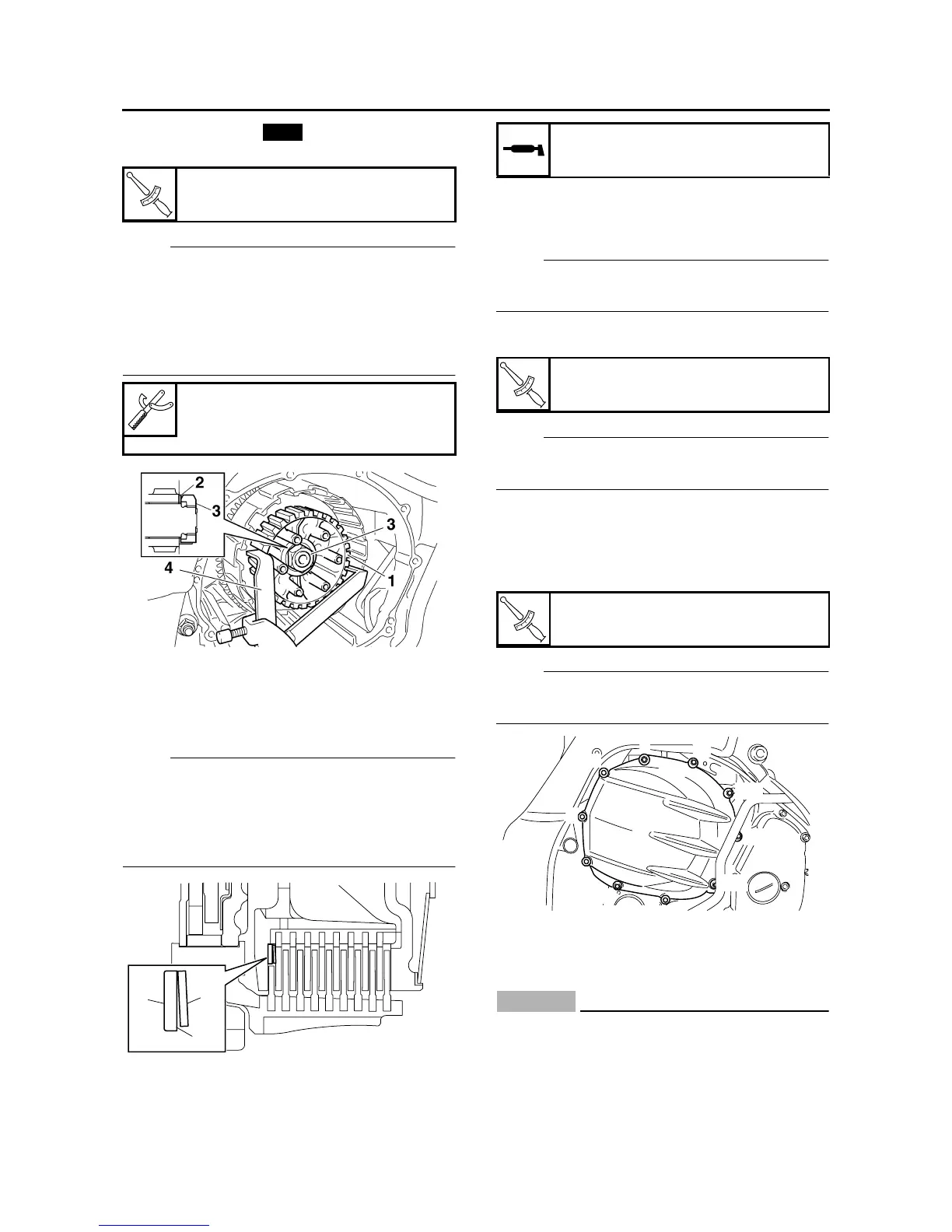

CLUTCH
5-51
• Lock washer “2”
• Clutch boss nut “3”
NOTE:
• Install the clutch boss nut with its large inner di-
ameter side facing inward as shown in the illus-
tration.
• While holding the clutch boss with the univer-
sal clutch holder “4”, tighten the clutch boss
nut.
4. Bend the lock washer tab along a flat side of
the nut.
5. Install:
• Clutch damper spring seat “1”
• Clutch damper spring “2”
NOTE:
• Install the clutch damper spring seat with the
white paint mark and the sharp edge “a” facing
outward.
• Install the clutch damper spring as shown in
the illustration.
6. Lubricate:
• Friction plates
• Clutch plates
(with the recommended lubricant)
7. Install:
• Friction plates
• Clutch plates
NOTE:
First, install a friction plate and then alternate be-
tween a clutch plate and a friction plate.
8. Install:
• Clutch spring bolts
NOTE:
Tighten the clutch spring bolts in stages and in a
crisscross pattern.
9. Install:
• Rear balancer weight
Refer to “BALANCERS” on page 5-103.
10.Install:
• Clutch cover
NOTE:
Tighten the clutch cover bolts in the proper tight-
ening sequence as shown.
EAS25280
DISASSEMBLING THE CLUTCH MASTER
CYLINDER
CAUTION:
ECA13840
• Clutch components rarely require disas-
sembly.
• Therefore, always follow these preventive
measures:
• Never disassemble clutch components un-
less absolutely necessary.
T
R
.
.
Clutch boss nut
90 Nm (9.0 m·kg, 65 ft·lb)
Universal clutch holder
90890-04086
YM-91042
New
1
2
a
Recommended lubricant
Engine oil
T
R
.
.
Clutch spring bolt
8 Nm (0.8 m·kg, 5.8 ft·lb)
T
R
.
.
Clutch cover bolt
12 Nm (1.2 m·kg, 8.7 ft·lb)
8
9
10
1,11
2,12
3,13
5
7
6
4
To Next Page
