Yamaha FJR1300A - Front Brake

FRONT BRAKE
4-25
EAS22210
FRONT BRAKE

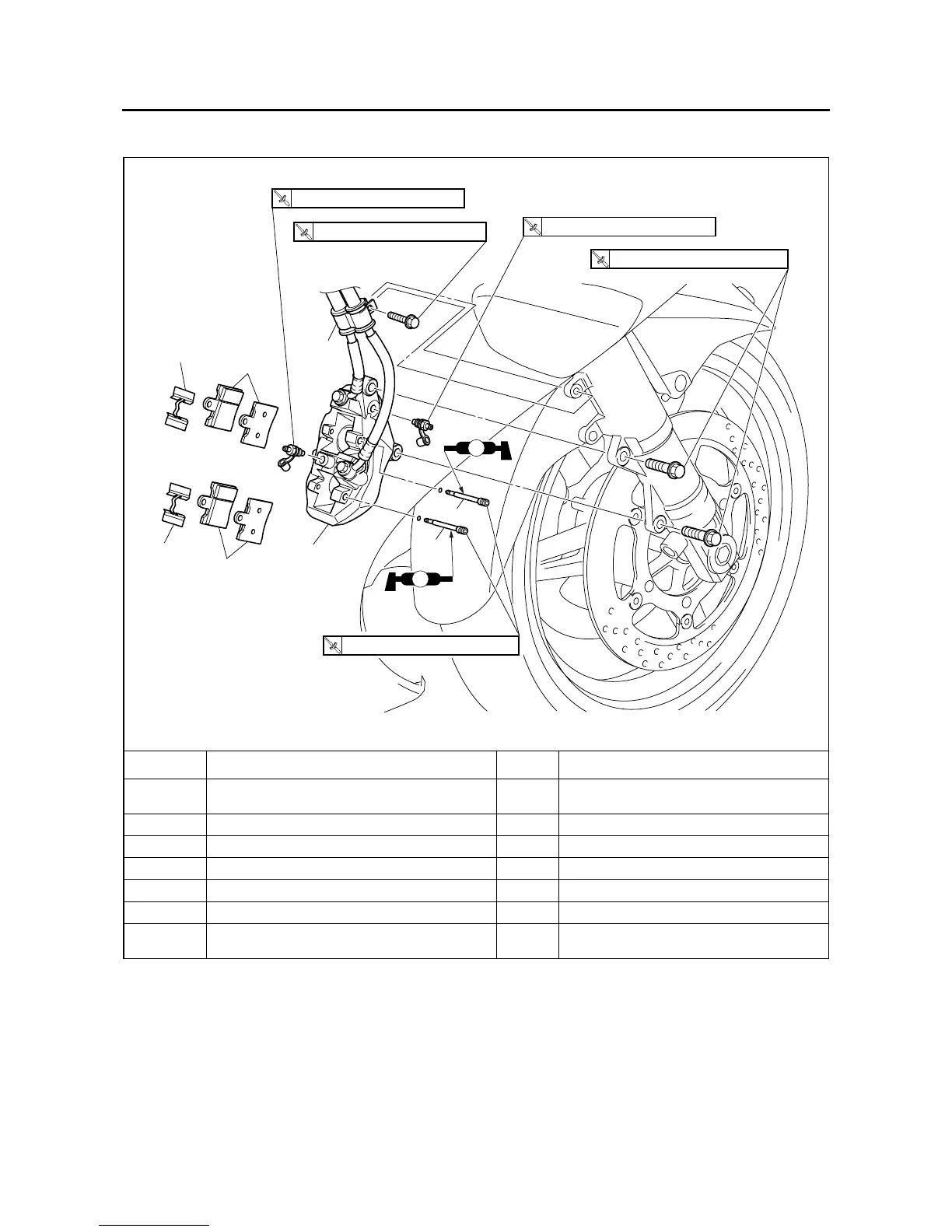

Removing the front brake pads
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front brake calipers.
1 Brake hose holder 1
2 Front brake caliper 1
3 Brake pad bolt 2
4 Brake pad spring 2
5 Front brake pad 4
For installation, reverse the removal proce-
dure.
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
40 Nm (4.0 m
•
kg, 29 ft
•
Ib)
LS
LS
T
R
.
.
17 Nm (1.7 m
•
kg, 12 ft
•
Ib)
T
R
.
.
6 Nm (0.6 m
•
kg, 4.3 ft
•
Ib)
T
R
.
.
6 Nm (0.6 m
•
kg, 4.3 ft
•
Ib)
1
2
5
4
4
5
3
3
