CYLINDER HEAD
5-18
EAS24100
CYLINDER HEAD

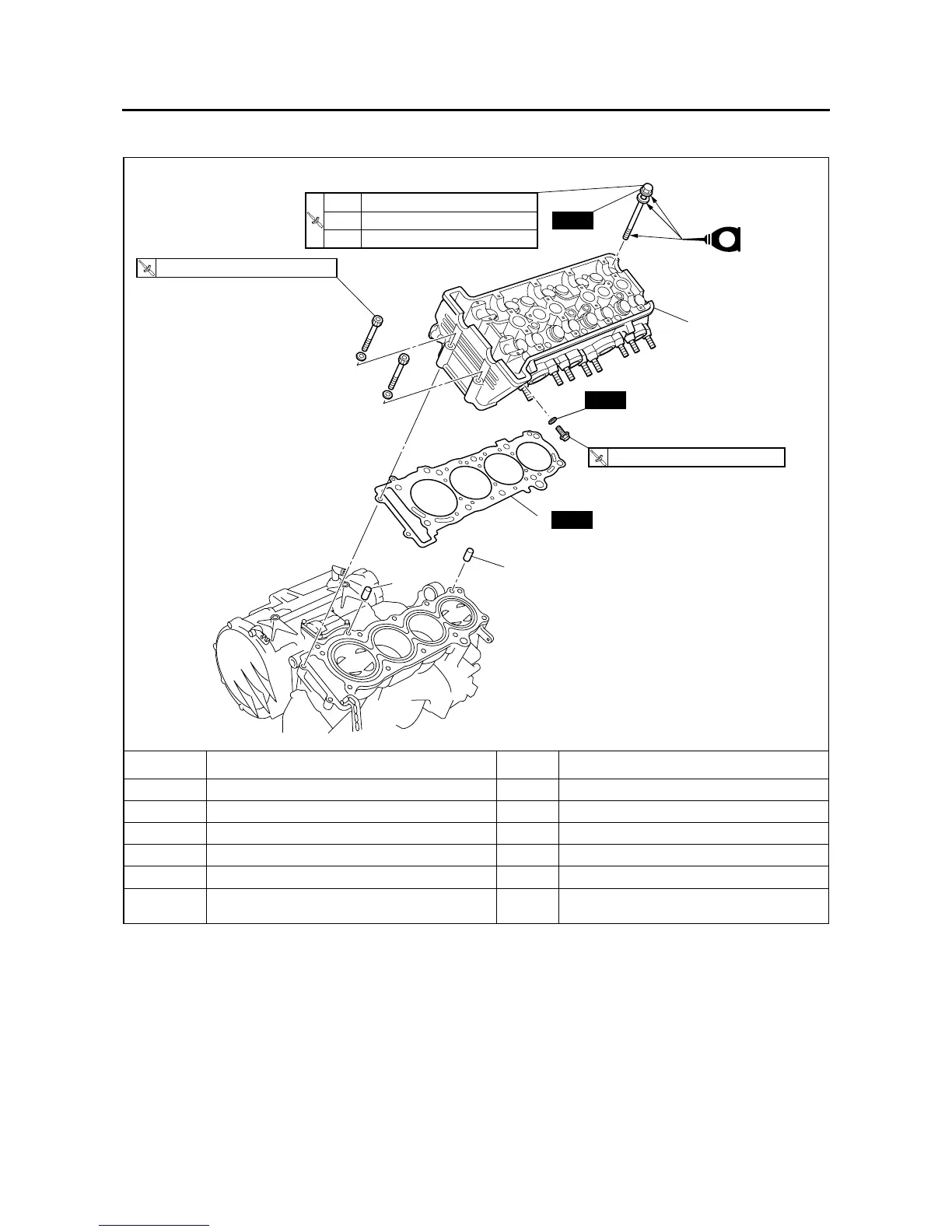

Removing the cylinder head
Order Job/Parts to remove Q’ty Remarks
Engine Refer to “ENGINE REMOVAL” on page 5-1.
Camshafts Refer to “CAMSHAFTS” on page 5-9.
1 Cylinder head 1
2 Cylinder head gasket 1
3 Dowel pin 2
For installation, reverse the removal proce-
dure.
T
R
.
.
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
T
R
.
.
20 Nm (2.0 m
•
kg, 14 ft
•
Ib)
T
R
.
.
1st 25 Nm (2.5 m
•
kg, 18 ft
•
lb)
2nd 25 Nm (2.5 m
•
kg, 18 ft
•
lb)
Final Specified angle 175–185˚
New
New
3
3
2
New
1
(10)
E
To Next Page
