ENGINE
3-16
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Add the recommended clutch fluid to the
proper level.
b. Install the clutch master cylinder reservoir di-
aphragm.

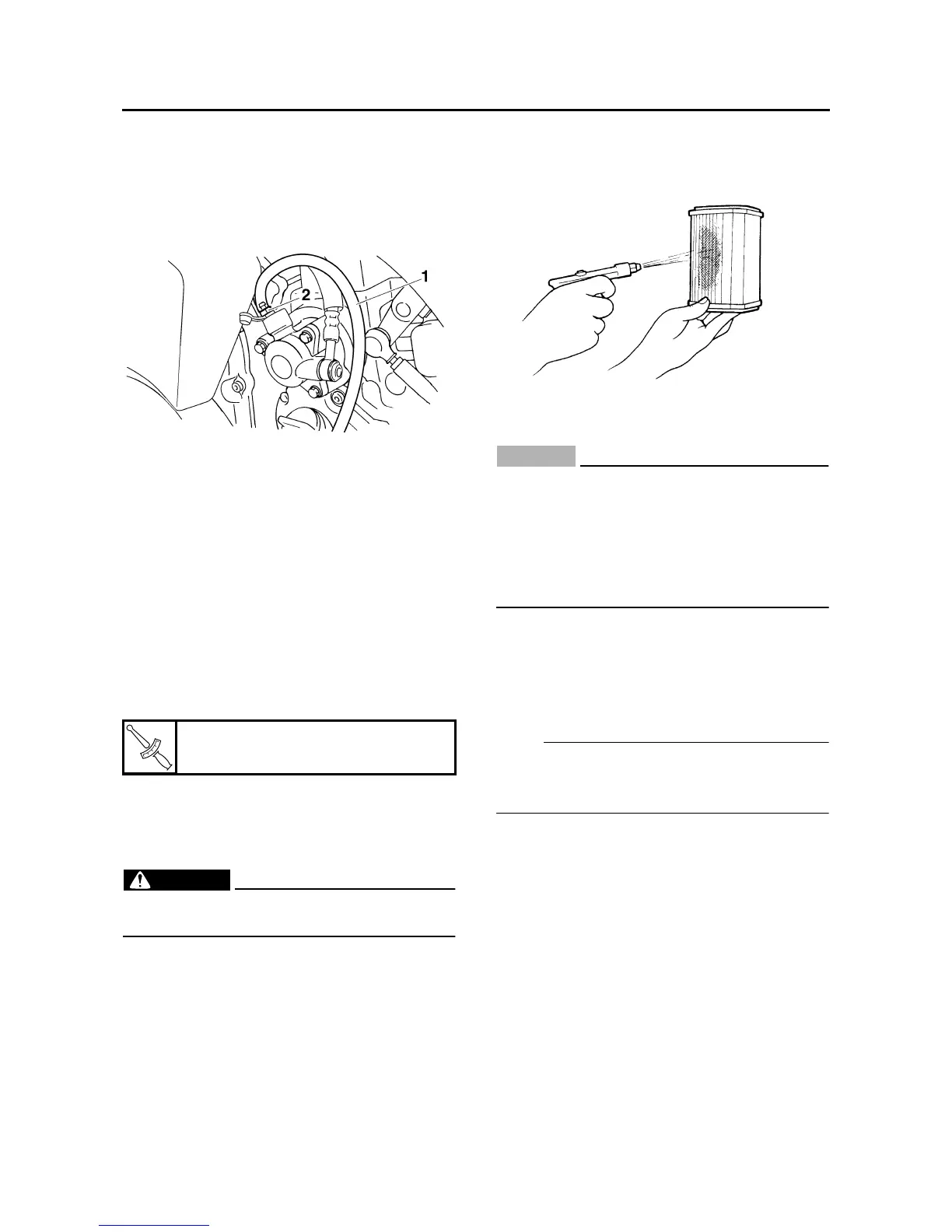

c. Connect a clear plastic hose “1” tightly to the
bleed screw “2”.
d. Place the other end of the hose into a con-
tainer.
e. Slowly squeeze the clutch lever several
times.
f. Fully squeeze the clutch lever without releas-
ing it.
g. Loosen the bleed screw. This will release the
tension and cause the clutch lever to contact
the handlebar grip.
h. Tighten the bleed screw and then release the
clutch lever.
i. Repeat steps (e) to (h) until all of the air bub-
bles have disappeared from the clutch fluid in
the plastic hose.
j. Tighten the bleed screw to specification.
k. Add the recommended clutch fluid to the
proper level.
Refer to “CHECKING THE CLUTCH FLUID
LEVEL” on page 3-15.
WARNING
EWA13010
After bleeding the hydraulic clutch system,
check the clutch operation.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS20920
CLEANING THE AIR FILTER ELEMENT
1. Remove:
• Rider seat
• Left side cover
• Air filter case cover
• Air filter element
Refer to “GENERAL CHASSIS” on page 4-1.
2. Clean:
• Air filter element
Apply compressed air to the outer surface of
the air filter element.
3. Check:
• Air filter element
Damage → Replace.
CAUTION:
EC3P61043
Never operate the engine without the air filter
element installed. Unfiltered air will cause
rapid wear of engine parts and may damage
the engine. Operating the engine without the
air filter element will also affect throttle body
synchronization, leading to poor engine per-
formance and possible overheating.
4. Install:
• Air filter element
• Air filter case cover
• Left side cover
• Rider seat
Refer to “GENERAL CHASSIS” on page 4-1.
NOTE:
When installing the air filter element into the air
filter case cover, make sure their sealing surfac-
es are aligned to prevent any air leaks.
EAS21010
CHECKING THE THROTTLE BODY JOINTS
The following procedure applies to all of the
throttle body joints and intake manifolds.
1. Remove:
• Rider seat
Refer to “GENERAL CHASSIS” on page 4-1.
• Fuel tank
Refer to “FUEL TANK” on page 7-1.
• Air filter case
Refer to “GENERAL CHASSIS” on page 4-1.
• Throttle body
Refer to “THROTTLE BODIES” on page 7-4.
2. Check:
• Throttle body joints “1”
Cracks/damage → Replace.
T
R
.
.
Bleed screw
6 Nm (0.6 m·kg, 4.3 ft·lb)
