THERMOSTAT
6-6
EAS26440
THERMOSTAT

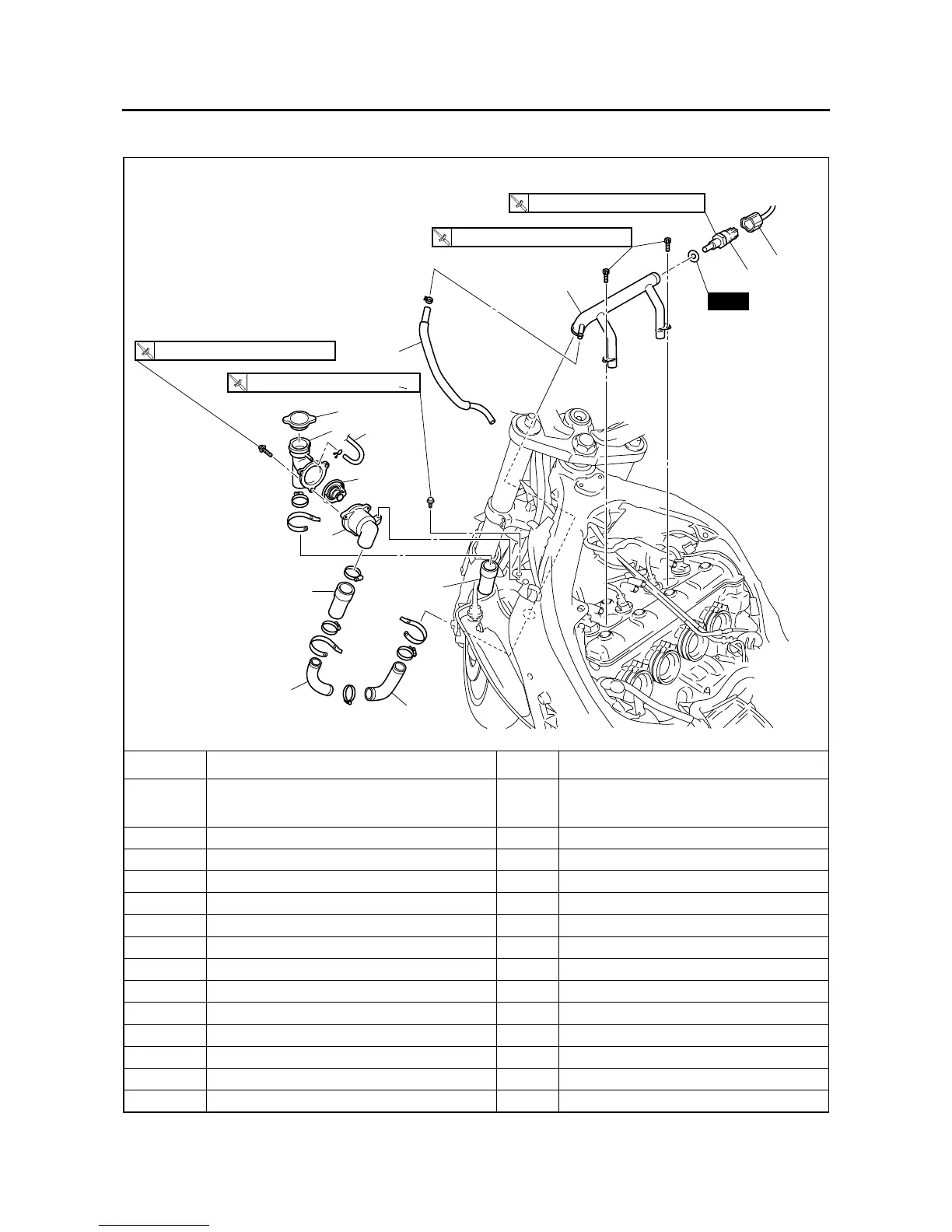

Removing the thermostat assembly
Order Job/Parts to remove Q’ty Remarks
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-19.
Throttle bodies Refer to “THROTTLE BODIES” on page 7-4.
1 Radiator cap 1
2 Coolant reservoir hose 1 Disconnect.
3 Radiator inlet hose 1 Disconnect.
4 Thermostat inlet hose 2 1
5 Thermostat cover/radiator filler pipe 1
6 Thermostat housing 1
7 Thermostat 1
8 Thermostat inlet pipe 2 1
9 Thermostat inlet hose 1 1
10 Plunger control unit hose 1 1
11 Coolant temperature sensor coupler 1 Disconnect.
12 Coolant temperature sensor 1
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
18 Nm (1.8 m
•
kg, 13 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
New
1
10
13
12
11
2
7
5
(3)
4
6
8
9
3
