MIDDLE GEAR
5-63
EAS25710
MIDDLE GEAR

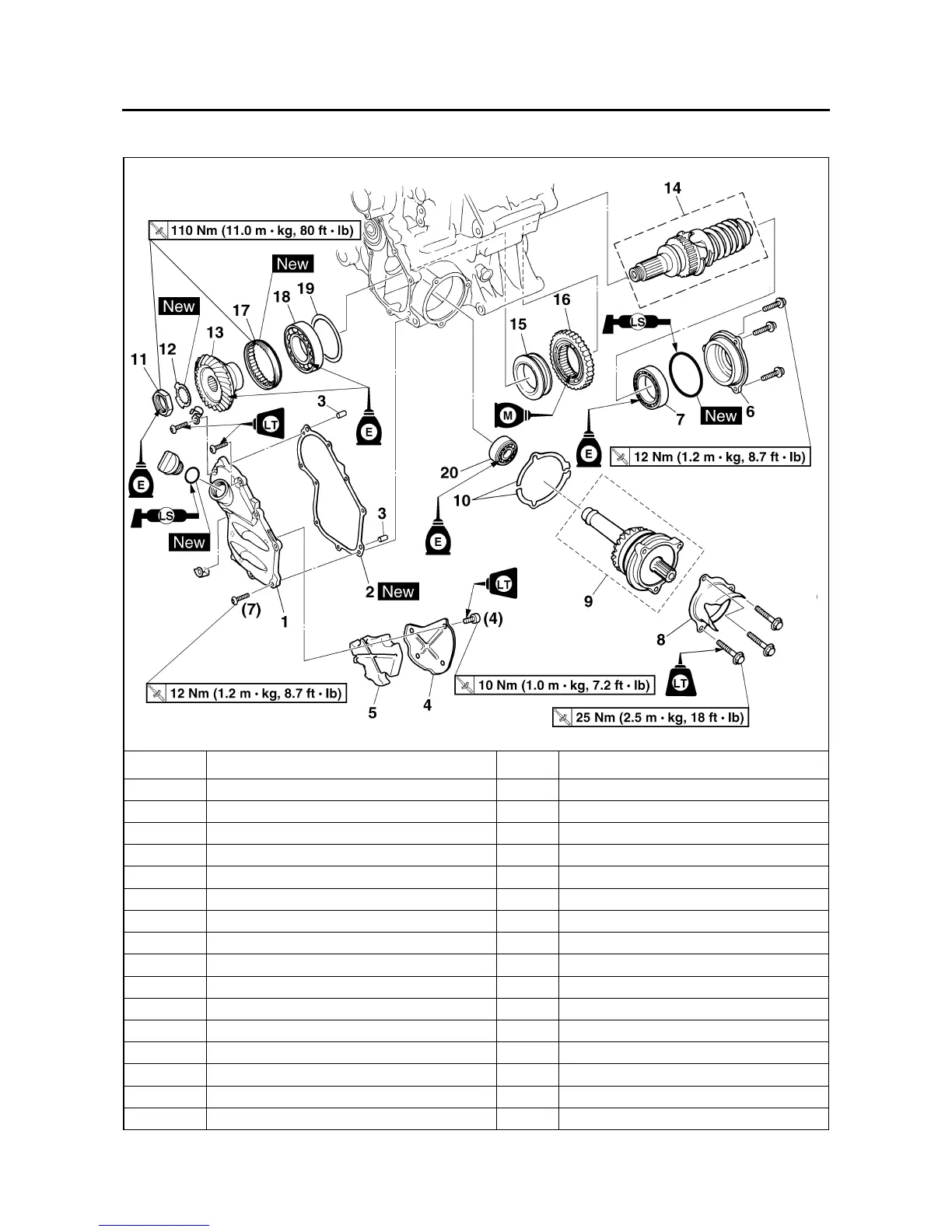

Removing the middle gear
Order Job/Parts to remove Q’ty Remarks
Engine Refer to “ENGINE REMOVAL” on page 5-1.
Oil pan/Oil pump Refer to “OIL PUMP” on page 5-58.
1 Middle gear case cover 1
2 Middle gear case cover gasket 1
3 Dowel pin 2
4 Damper cover 1
5 Damper 1
6 Middle drive shaft bearing housing 1
7 Bearing 1
8 Middle driven shaft end cover 1
9 Middle driven shaft assembly 1
10 Middle driven pinion gear shim
11 Middle drive pinion gear nut 1
12 Lock washer 1
13 Middle drive pinion gear 1
14 Middle drive shaft assembly 1
