CRANKSHAFT
5-90
EAS25950
CRANKSHAFT

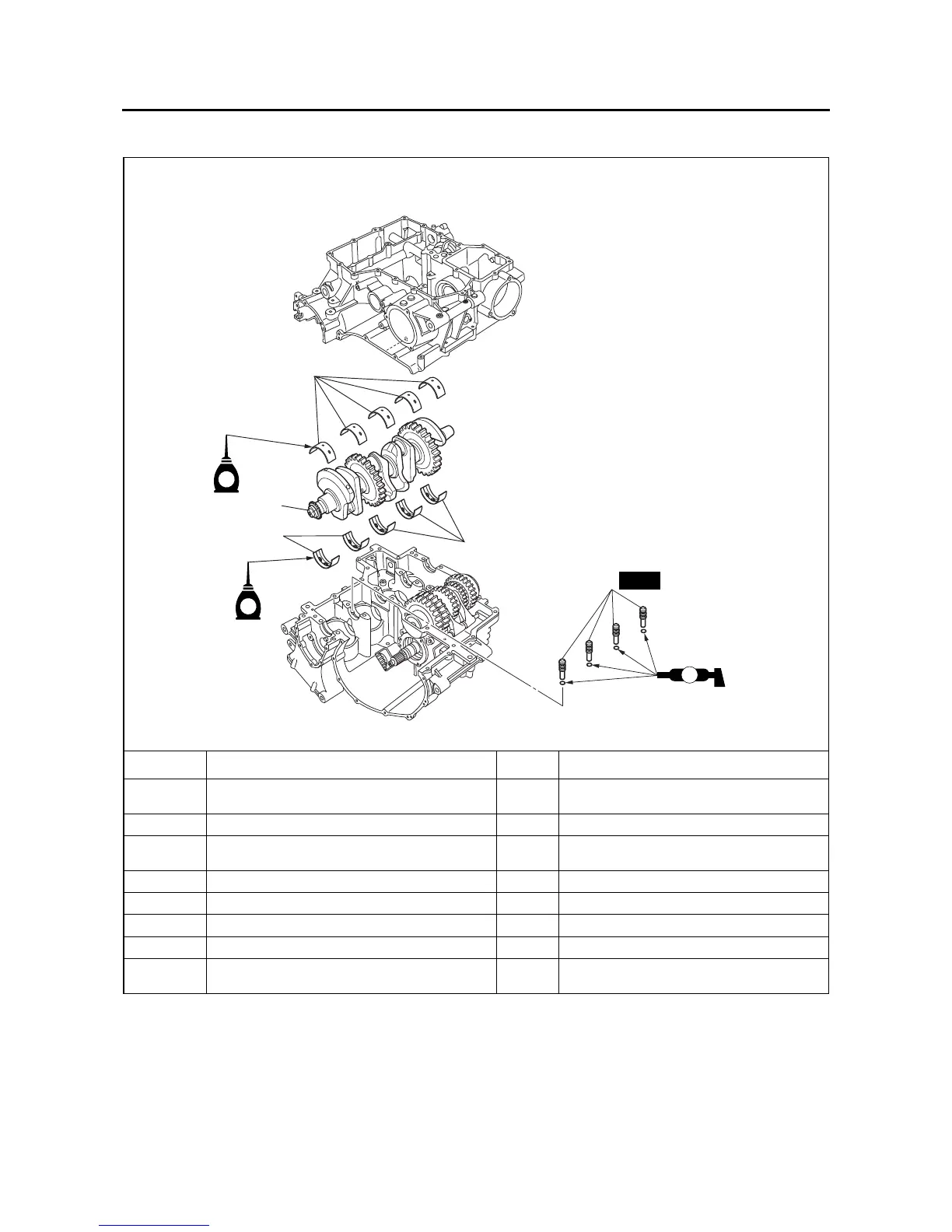

Removing the crankshaft
Order Job/Parts to remove Q’ty Remarks
Crankcase
Separate.
Refer to “CRANKCASE” on page 5-74.
Front balancer weight Refer to “BALANCERS” on page 5-103.
Connecting rod caps
Refer to “CONNECTING RODS AND PIS-
TONS” on page 5-82.
1 Crankshaft 1
2 Crankshaft journal upper bearing 5
3 Crankshaft journal lower bearing 5
4 Oil nozzle 4
For installation, reverse the removal proce-
dure.
3
1
2
2
E
E
New
4
LS
