INSTRUMENT FUNCTIONS
Speedometer
The speedometer shows the riding speed.
When the key is turned to “ON”, the speedome-
ter needle will sweep once across the speed
range and then return to zero in order to test the
electrical circuit.
Tachometer
The electric tachometer allows the rider to mon-
itor the engine speed and keep it within the ideal
power range.
When the key is turned to “ON”, the tachometer
needle will sweep once across the r/min range
and then return to zero r/min in order to test the
electrical circuit.
CAUTION:
EC3P61039
Do not operate the engine in the tachometer
red zone.
Red zone: 9000 r/min and above
Multi-function display
WARNING
EW3P61020
Be sure to stop the vehicle before making
any setting changes to the multi-function
display.
The multi-function display is equipped with the
following:
• an odometer (which shows the total distance
traveled)
• two tripmeters (which show the distance trav-
eled since they were last set to zero)
• a fuel reserve tripmeter (which shows the dis-
tance traveled on the fuel reserve)
• a clock
• a fuel meter
• a coolant temperature meter
• a transmission gear display
• an ambient temperature display
• two fuel consumption displays (instantaneous
and average)
• a self-diagnosis device
NOTE:
Be sure to turn the key to “ON” before using the
“SELECT” and “RESET” buttons.

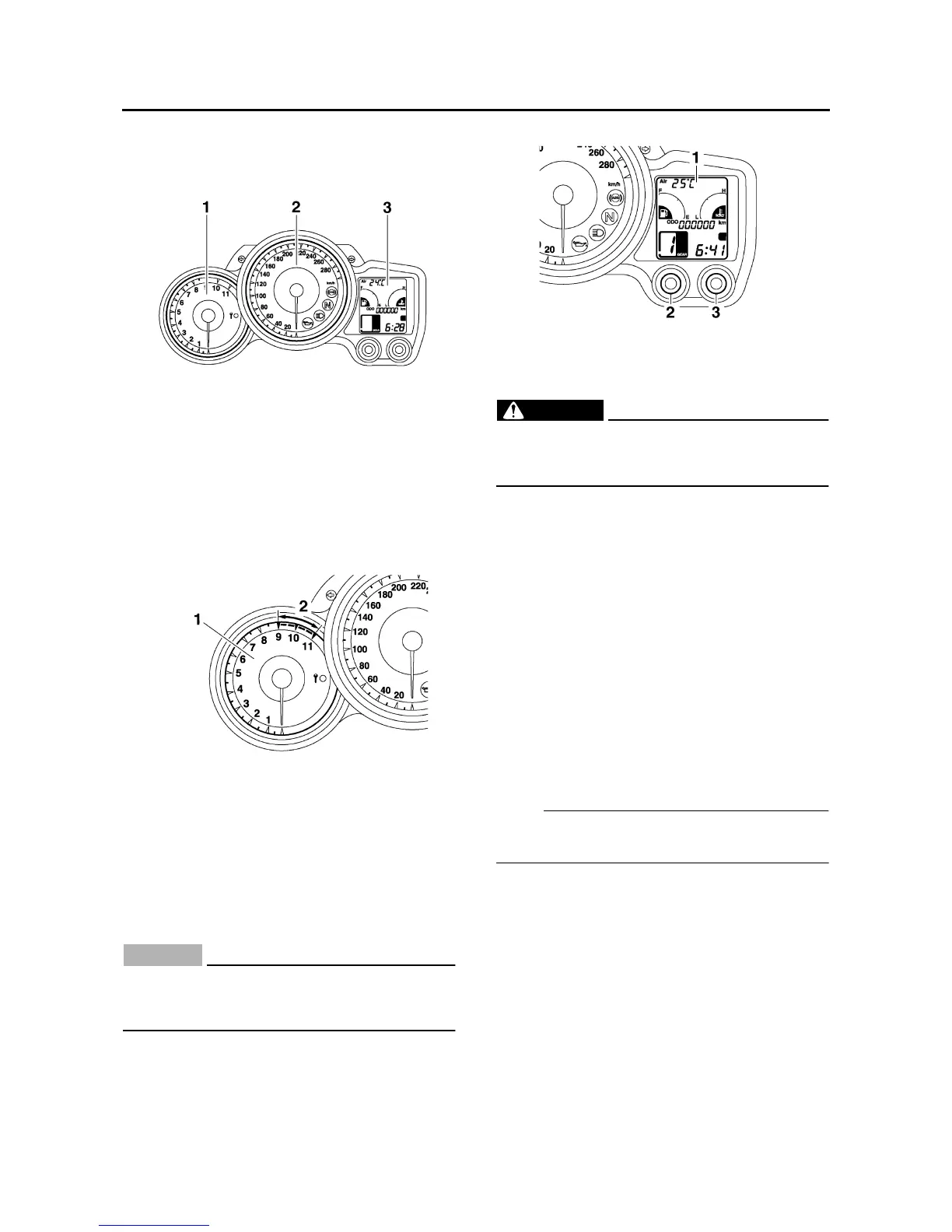

1. Tachometer
2. Speedometer
3. Multi-function display
1. Tachometer
2. Tachometer red zone
1. Multi-function display
2. “SELECT” button
3. “RESET” button
