ENGINE
3-13
EAS20780

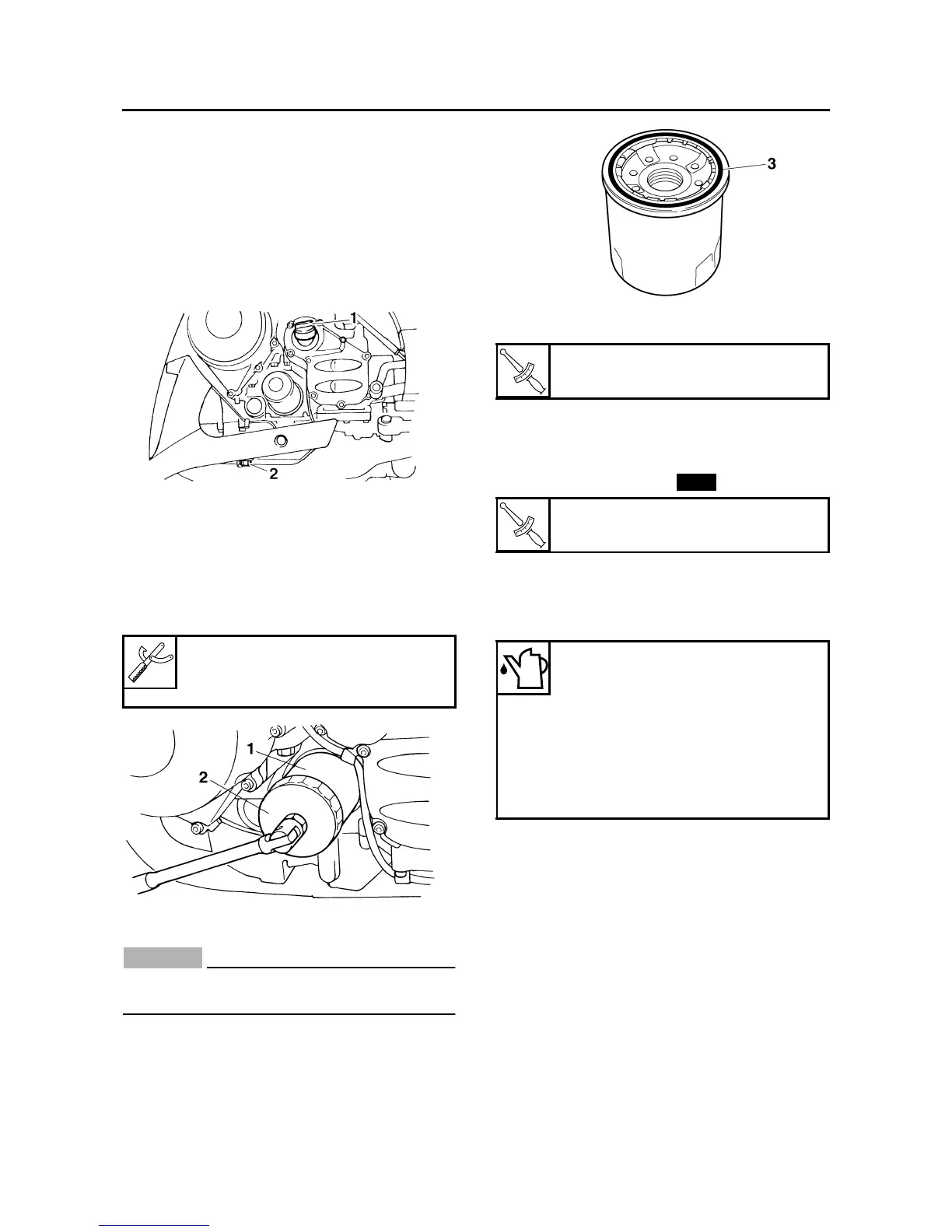

CHANGING THE ENGINE OIL
1. Start the engine, warm it up for several min-
utes, and then turn it off.
2. Place a container under the engine oil drain
bolt.
3. Remove:
• Engine oil filler cap “1”
• Engine oil drain bolt “2”
(along with the gasket)
4. Drain:
• Engine oil
(completely from the crankcase)
5. If the oil filter cartridge is also to be replaced,
perform the following procedure.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Remove the oil filter cartridge “1” with an oil
filter wrench “2”.
b. Lubricate the O-ring “3” of the new oil filter
cartridge with a thin coat of engine oil.
CAUTION:
ECA13390
Make sure the O-ring “3” is positioned cor-
rectly in the groove of the oil filter cartridge.
c. Tighten the new oil filter cartridge to specifi-
cation with an oil filter wrench.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
6. Install:
• Engine oil drain bolt
(along with the gasket )
7. Fill:
• Crankcase
(with the specified amount of the recom-
mended engine oil)
8. Install:
• Engine oil filler cap
9. Start the engine, warm it up for several min-
utes, and then turn it off.
10.Check:
• Engine
(for engine oil leaks)
11.Check:
• Engine oil level
Refer to “CHECKING THE ENGINE OIL
LEVEL” on page 3-12.
12.Check:
• Engine oil pressure
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Remove the right side cowling. Refer to
“GENERAL CHASSIS” on page 4-1.
Oil filter wrench
90890-01426
YU-38411
T
R
.
.
Oil filter cartridge
17 Nm (1.7 m·kg, 12 ft·lb)
T
R
.
.
Engine oil drain bolt
43 Nm (4.3 m·kg, 31 ft·lb)
Engine oil quantity
Total amount
4.90 L (5.18 US qt) (4.31 Imp.qt)
Without oil filter cartridge re-
placement
3.80 L (4.02 US qt) (3.34 Imp.qt)
With oil filter cartridge replace-
ment
4.00 L (4.23 US qt) (3.52 Imp.qt)
New
